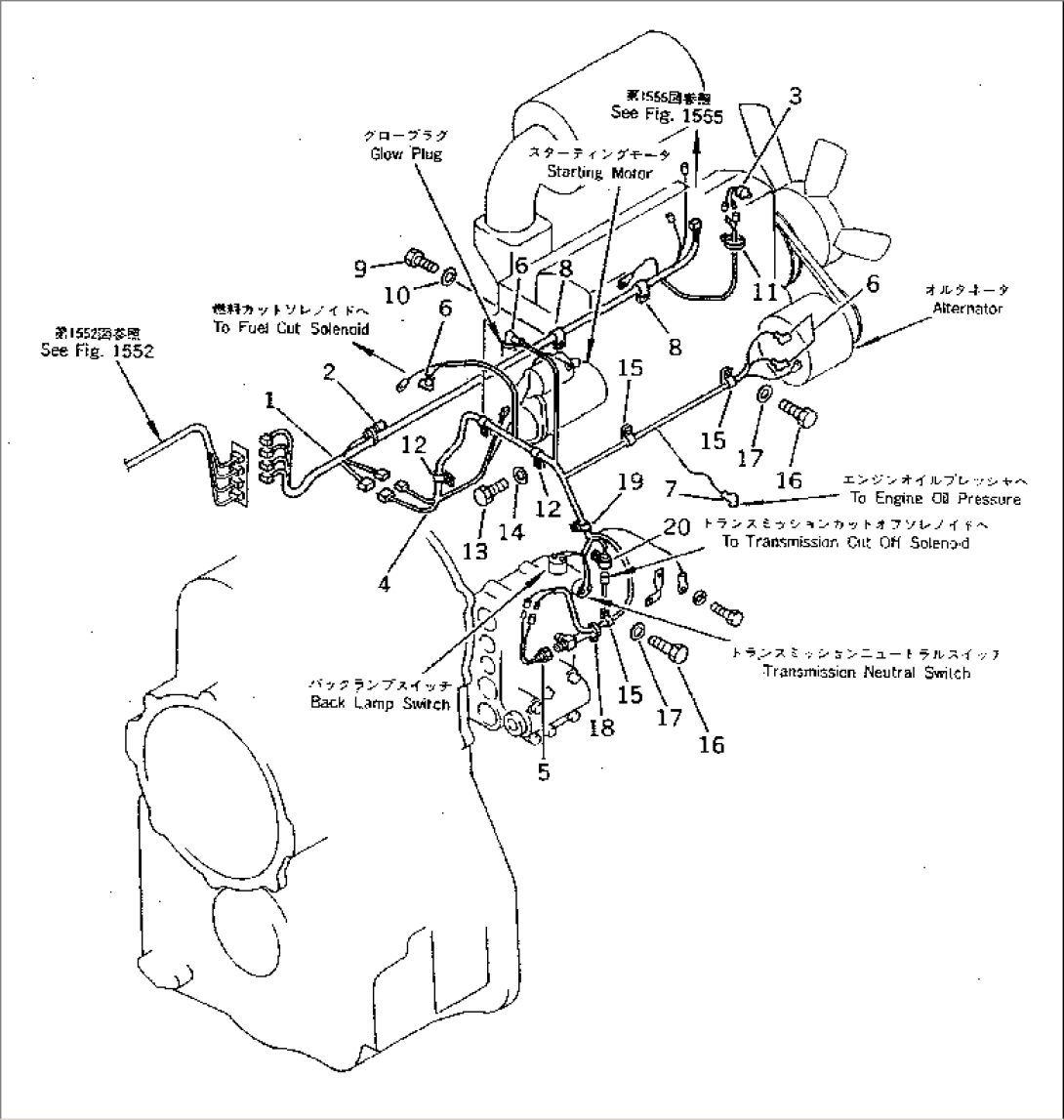

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-06-12165 | WIRE ASS'Y | .-11999 | |
| 1 | 415-06-12164 | WIRE ASS'Y | 10001-. | |
| 1 | 421-06-11970 | DIODE | .-11999 | |
| 2 | 421-06-11970 | DIODE | 10001-. | |
| 3 | 232-06-52410 | SENSOR,WATER TEMPERATURE | 10001-11999 | |
| 4 | 415-06-12186 | WIRE ASS'Y | ..-11999 | |
| 4 | 415-06-12185 | WIRE ASS'Y | .-.. | |
| 4 | \0\415-06-12184 | WIRE ASS'Y | 10001-. | |
| 5 | 232-06-52410 | SENSOR,OIL TEMPERATURE | 10001-11999 | |
| 6 | 08038-00519 | CAP | 10001-11999 | |
| 7 | 08038-00218 | CAP | 10001-11999 | |
| 8 | 08036-01414 | CLIP | 10001-11999 | |
| 9 | 01010-31016 | BOLT | 10001-11999 | |
| 10 | 01643-31032 | WASHER | 10001-11999 | |
| 11 | 08034-00823 | BAND | 10001-@ | |
| 12 | 08036-01814 | CLIP | 10306-11999 | |
| 12 | 424-06-12730 | CLIP | .-10305 | |
| 12 | 08036-11214 | CLIP | 10001-. | |
| 13 | 01010-31016 | BOLT | .-11999 | |
| 13 | 01010-31016 | BOLT | 10001-. | |
| 14 | 01643-31032 | WASHER | .-11999 | |
| 14 | 01643-31032 | WASHER | 10001-. | |
| 15 | 08035-01510 | CLIP | ..-11999 | |
| 15 | 424-06-12720 | CLIP | .-.. | |
| 15 | 08036-10814 | CLIP | 10001-. | |
| 16 | 01010-30812 | BOLT | 10001-11999 | |
| 17 | 01643-30823 | WASHER | .-11999 | |
| 17 | 01643-30823 | WASHER | 10001-. | |
| 18 | 08034-00519 | BAND | 10001-@ | |
| 19 | 08036-10814 | CLIP | 10001-11999 | |
| 20 | 08036-01814 | CLIP | 10001-11999 |
