| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 702-16-02133 | LEVER ASS'Y,DUMP CONTROL | 7001- | |
| 2 | 01252-60512 | BOLT | 7001- | |
| 3 | 702-16-54920 | RING | 7001- | |
| 4 | 702-16-54641 | BOOT | 7001- | |
| 5 | 08192-24810 | CONNECTOR | 7001- | |
| 6 | 702-16-57930 | TUBE | 7001- | |
| 7 | 702-16-57940 | CLIP | 7001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 2r s/n 7001 7029 (w/o egr)
- Service kit and component parts
- Electric lever(#7001 )
Поиск по каталогу

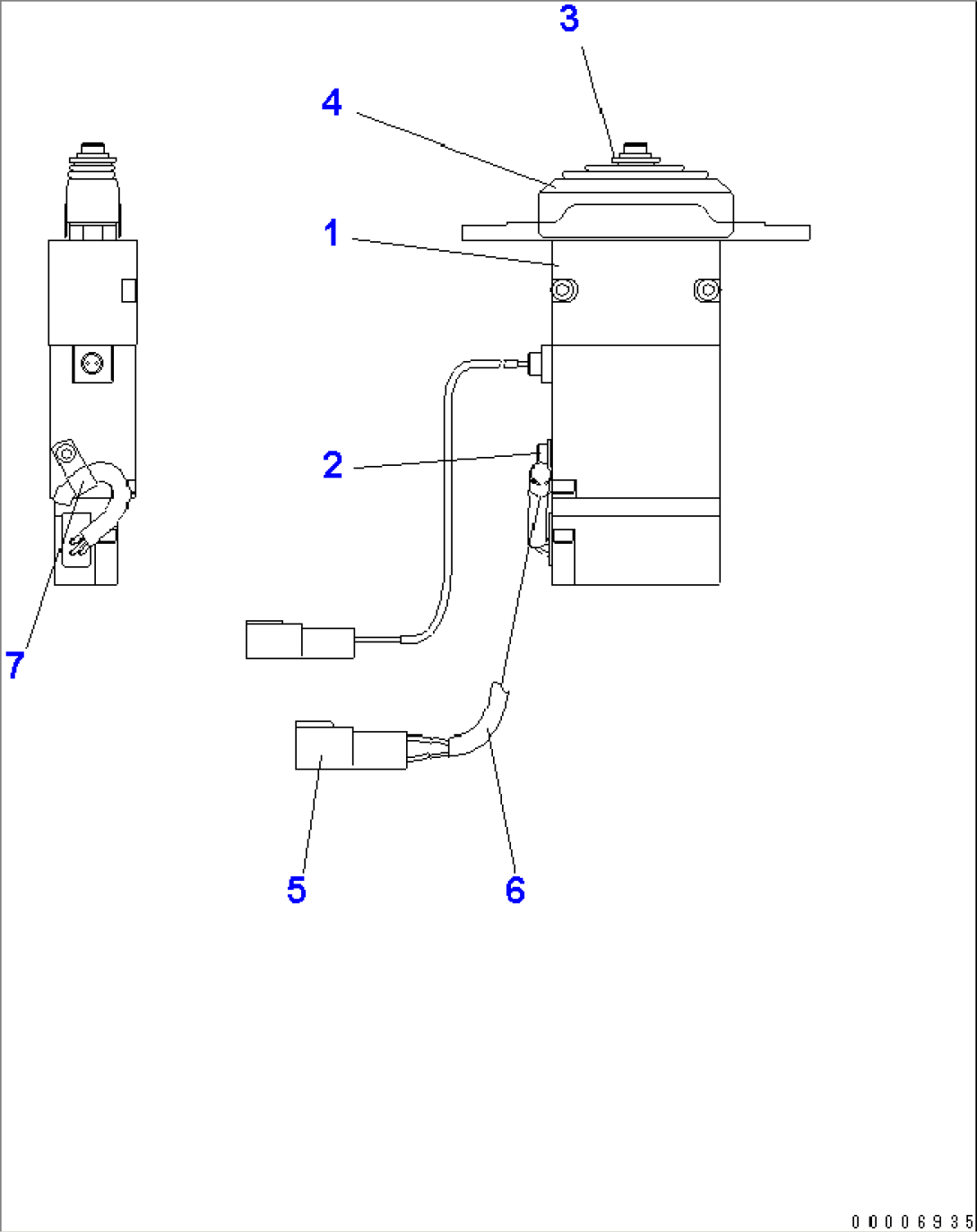

ELECTRIC LEVER(#7001-)
