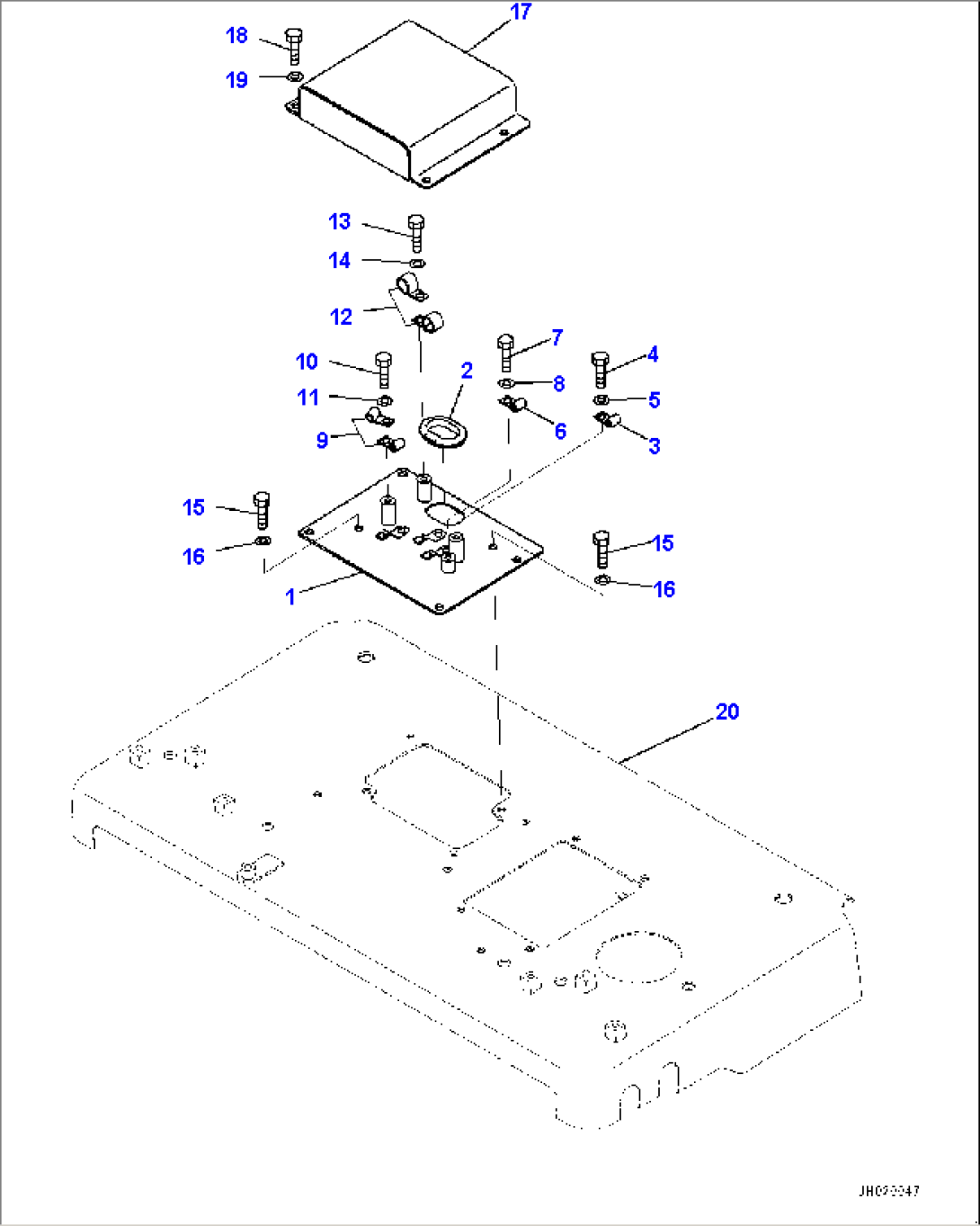

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-54-43440 | Bracket | 85077- | |
| 2 | 176-911-4160 | Grommet | 85077- | |
| 3 | 04434-51012 | Clip | 85077- | |
| 4 | 01010-81225 | Bolt | 85077- | |
| 5 | 01643-31232 | Washer | 85077- | |
| 6 | 04434-51012 | Clip | 85077- | |
| 7 | 01010-81225 | Bolt | 85077- | |
| 8 | 01643-31232 | Washer | 85077- | |
| 9 | 04434-51012 | Clip | 85077- | |
| 10 | 01010-81225 | Bolt | 85077- | |
| 11 | 01643-31232 | Washer | 85077- | |
| 12 | 04434-52312 | Clip | 85077- | |
| 13 | 01010-81225 | Bolt | 85077- | |
| 14 | 01643-31232 | Washer | 85077- | |
| 15 | 01010-81235 | Bolt | 85077- | |
| 16 | 01643-31232 | Washer | 85077- | |
| 17 | 14X-54-61321 | Cover | 85077- | |
| 18 | 01010-81235 | Bolt | 85077- | |
| 19 | 01643-31232 | Washer | 85077- | |
| 20 | (17A-54-41780) | Cover | - |
