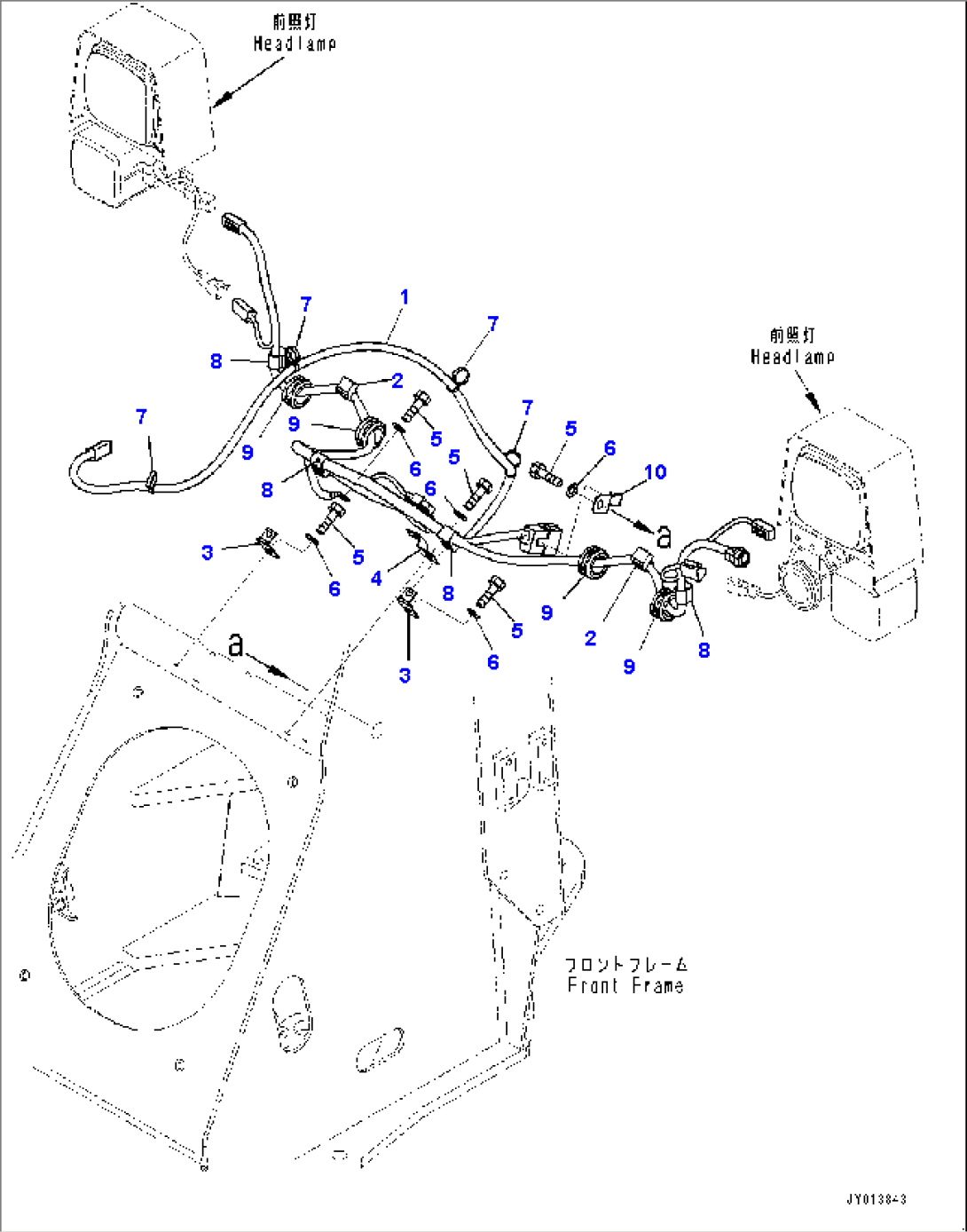

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42A-06-53224 | Wiring Harness | 60001- | |
| 2 | 08211-00720 | Clip | 60669- | |
| 2 | 08211-00720 | Clip | 60001-60668 | |
| 3 | 08057-12010 | Clip | 60001- | |
| 4 | 08053-01510 | Clip | 60001- | |
| 5 | 01010-81016 | Bolt | 60669- | |
| 5 | 01010-81016 | Bolt | 60001-60668 | |
| 6 | 01643-31032 | Washer | 60669- | |
| 6 | 01643-31032 | Washer | 60001-60668 | |
| 7 | 08034-40521 | Band | 60001- | |
| 8 | 08211-01020 | Clip | 60669- | |
| 8 | 08211-01020 | Clip | 60001-60668 | |
| 9 | 418-06-12430 | Grommet | 60001- | |
| 10 | 08193-20010 | Clip | 60001- |
