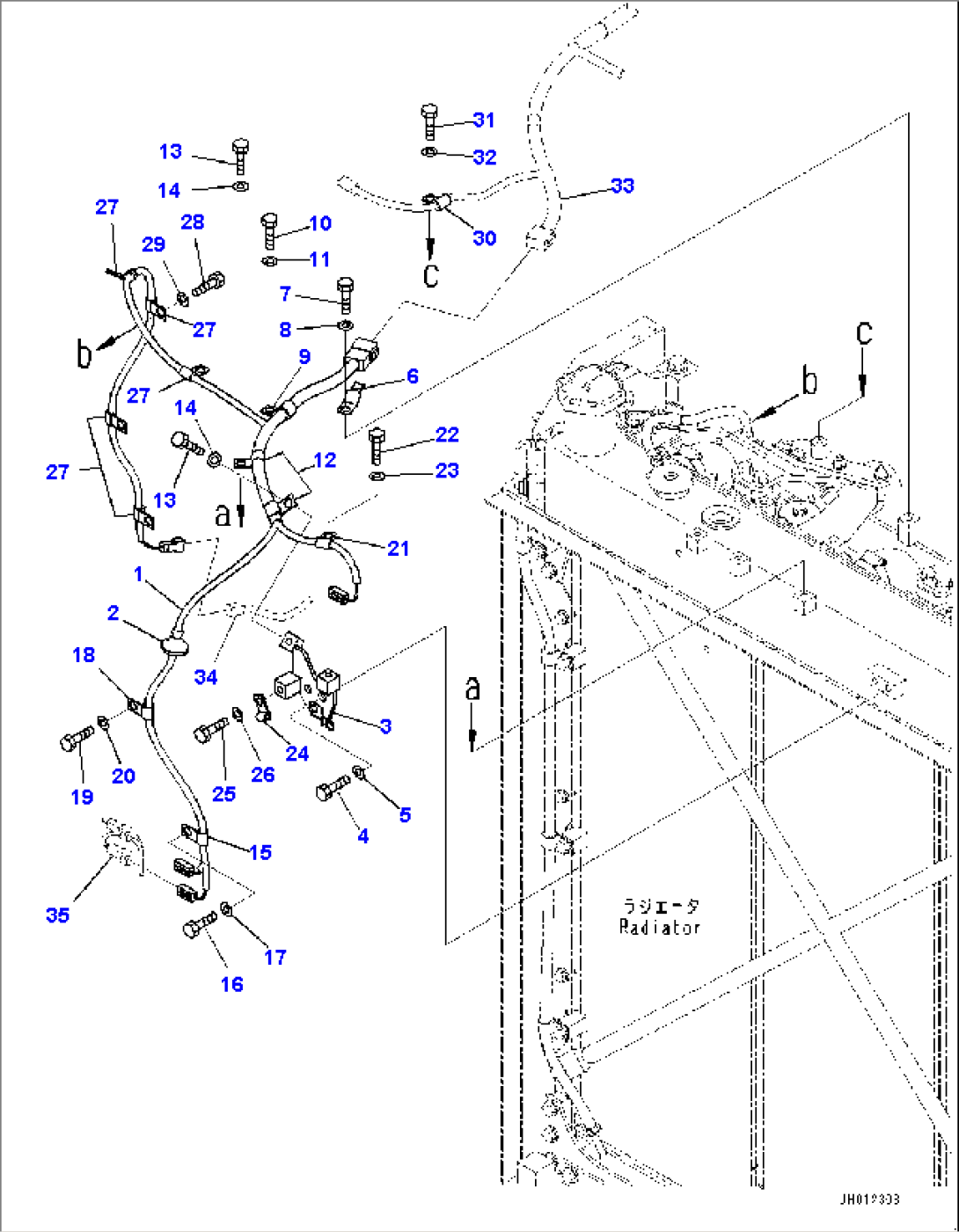

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-06-61311 | Wiring Harness | 100040-100051 | |
| 2 | 08037-11025 | Grommet | 100040-100051 | |
| 3 | 17A-06-61321 | Bracket | 100040-100051 | |
| 4 | 01010-81225 | Bolt | 100040-100051 | |
| 5 | 01643-31232 | Washer | 100040-100051 | |
| 6 | 08193-21012 | Clip | 100040-100051 | |
| 7 | 01010-81225 | Bolt | 100040-100051 | |
| 8 | 01643-31232 | Washer | 100040-100051 | |
| 9 | 04434-51712 | Clip | 100040-100051 | |
| 10 | 01010-81225 | Bolt | 100040-100051 | |
| 11 | 01643-31232 | Washer | 100040-100051 | |
| 12 | 04434-51412 | Clip | 100040-100051 | |
| 13 | 01010-81225 | Bolt | 100040-100051 | |
| 14 | 01643-31232 | Washer | 100040-100051 | |
| 15 | 04434-51012 | Clip | 100040-100051 | |
| 16 | 01010-81225 | Bolt | 100040-100051 | |
| 17 | 01643-31232 | Washer | 100040-100051 | |
| 18 | 04434-51012 | Clip | 100040-100051 | |
| 19 | 01010-81225 | Bolt | 100040-100051 | |
| 20 | 01643-31232 | Washer | 100040-100051 | |
| 21 | 04434-51012 | Clip | 100040-100051 | |
| 22 | 01010-81225 | Bolt | 100040-100051 | |
| 23 | 01643-31232 | Washer | 100040-100051 | |
| 24 | 04434-50612 | Clip | 100040-100051 | |
| 25 | 01010-81225 | Bolt | 100040-100051 | |
| 26 | 01643-31232 | Washer | 100040-100051 | |
| 27 | 04434-51012 | Clip | 100040-100051 | |
| 28 | 01010-81225 | Bolt | 100040-100051 | |
| 29 | 01643-31232 | Washer | 100040-100051 | |
| 30 | 600-051-3100 | Clip | 100040-100051 | |
| 31 | 01010-81225 | Bolt | 100040-100051 | |
| 32 | 01643-31232 | Washer | 100040-100051 | |
| 33 | (17A-06-61241) | Wiring Harness | - | |
| 34 | (17A-06-62811) | Wiring Harness | - | |
| 35 | (729-11-41000) | Sensor, Revolution | - |
