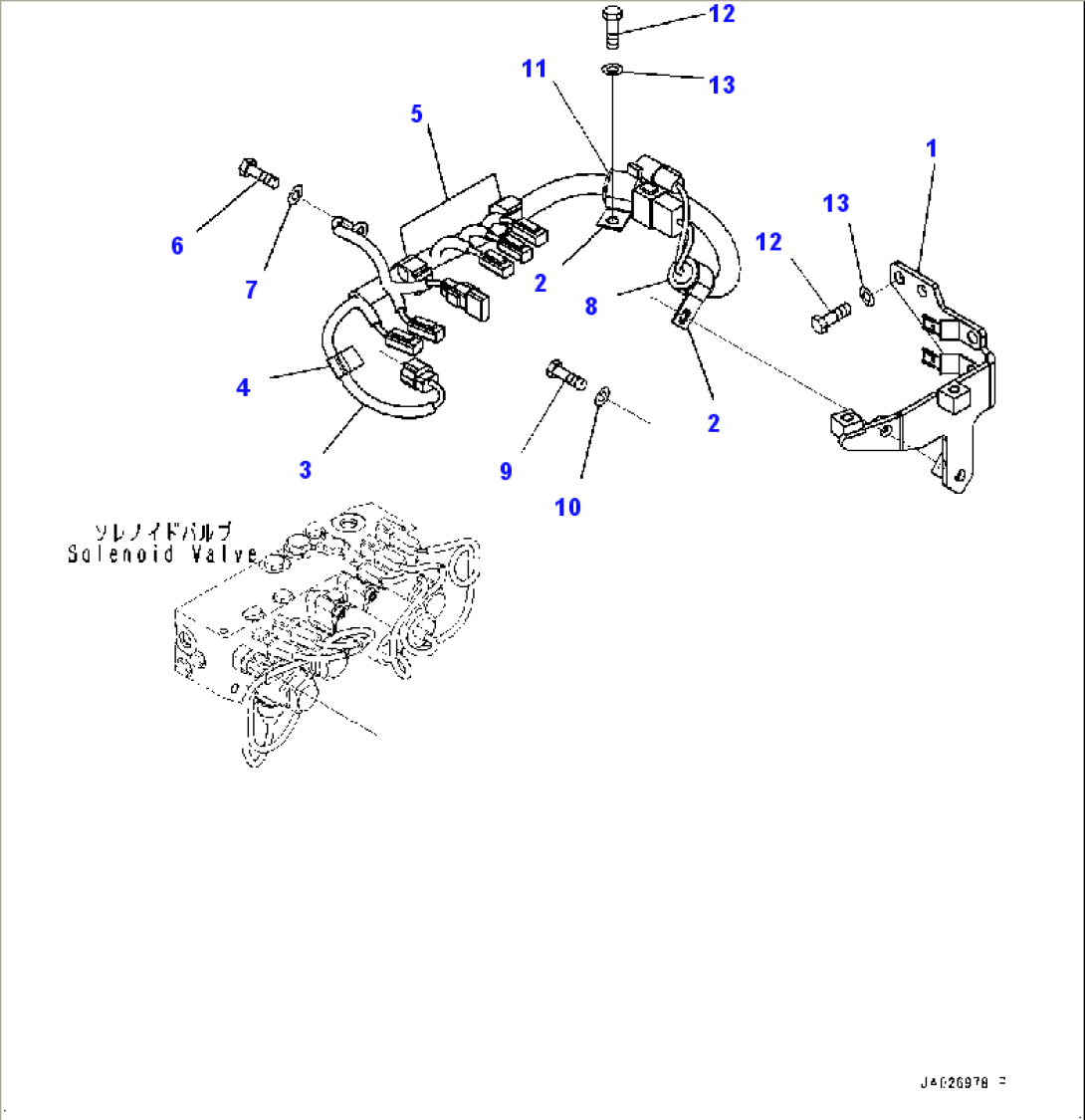

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 12Y-06-33260 | Bracket | 10001- | |
| 2 | 04434-52711 | Clip | 10001- | |
| 3 | 12Y-06-31931 | Wiring Harness | 10001- | |
| 4 | 08211-00720 | Clip | 10001- | |
| 5 | 08211-01520 | Clip | 10001- | |
| 6 | 01010-81020 | Bolt | 10001- | |
| 7 | 01643-31032 | Washer | 10001- | |
| 8 | 07095-20419 | Cushion | 10001- | |
| 9 | 01010-81020 | Bolt | 10001- | |
| 10 | 01643-31032 | Washer | 10001- | |
| 11 | 07095-20419 | Cushion | 10001- | |
| 12 | 01010-81020 | Bolt | 10001- | |
| 13 | 01643-31032 | Washer | 10001- |
