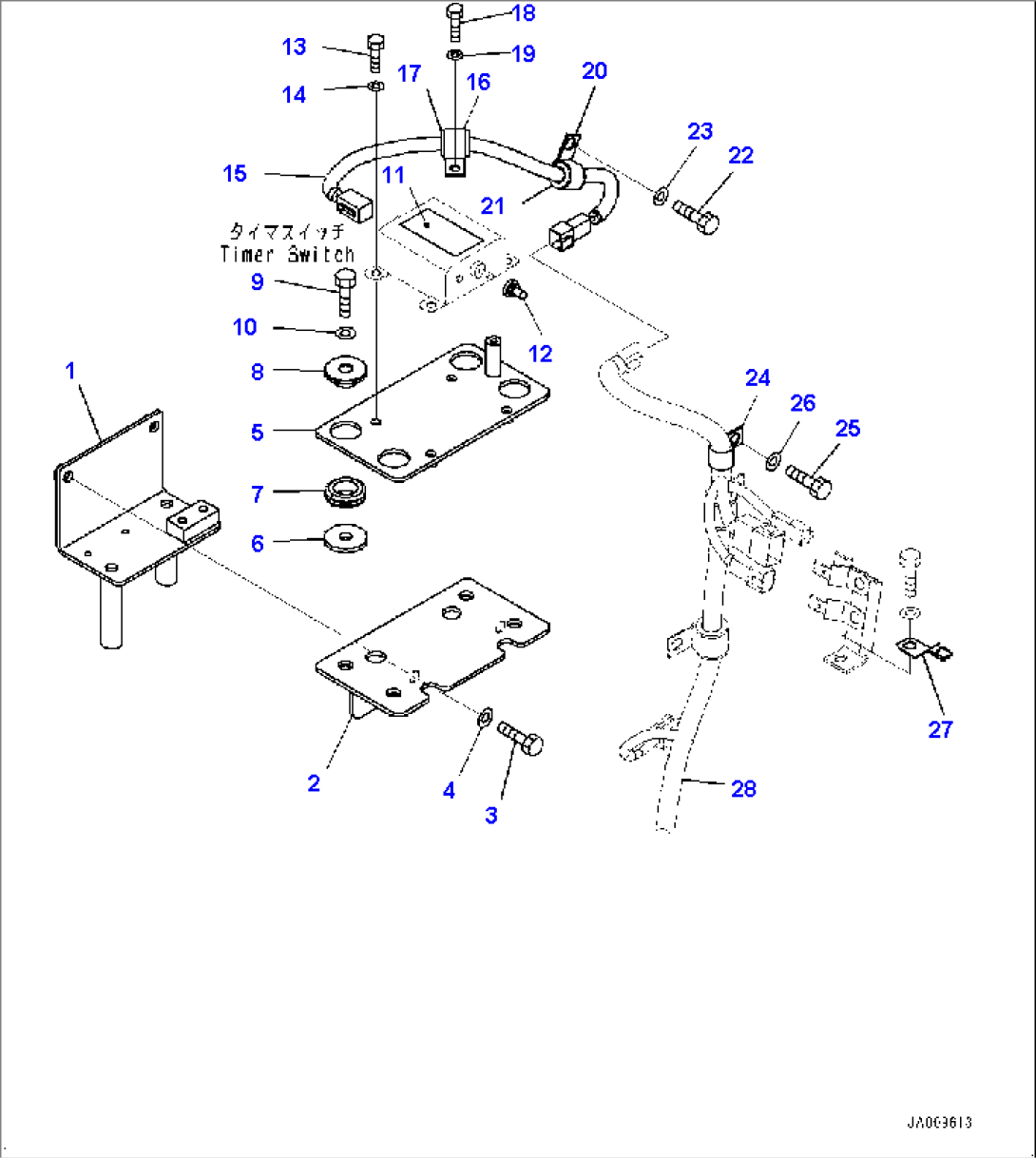

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-06-74460 | Bracket | 20003-20010 | |
| 2 | 154-06-74470 | Bracket | 20003-20010 | |
| 3 | 01010-81025 | Bolt | 20003-20010 | |
| 4 | 01643-31032 | Washer | 20003-20010 | |
| 5 | 154-06-74411 | Bracket | 20003-20010 | |
| 6 | 427-06-13240 | Washer | 20003-20010 | |
| 7 | 175-03-42140 | Rubber | 20003-20010 | |
| 8 | 203-54-14330 | Collar | 20003-20010 | |
| 9 | 01010-81240 | Bolt | 20003-20010 | |
| 10 | 01643-31232 | Washer | 20003-20010 | |
| 11 | 6245-81-9410 | Plate, Fuel Priming Pump Switch | 20003-20010 | |
| 12 | 08504-10000 | Cap | 20003-20010 | |
| 13 | 01010-80816 | Bolt | 20003-20010 | |
| 14 | 01643-30823 | Washer | 20003-20010 | |
| 15 | 154-06-74431 | Wiring Harness | 20003-20010 | |
| 16 | 04434-52108 | Clip | 20003-20010 | |
| 17 | 07095-20314 | Cushion | 20003-20010 | |
| 18 | 01010-80816 | Bolt | 20003-20010 | |
| 19 | 01643-30823 | Washer | 20003-20010 | |
| 20 | 04434-52112 | Clip | 20003-20010 | |
| 21 | 07095-20314 | Cushion | 20003-20010 | |
| 22 | 01010-81220 | Bolt | 20003-20010 | |
| 23 | 01643-31232 | Washer | 20003-20010 | |
| 24 | 04434-51912 | Clip | 20003-20010 | |
| 25 | 01010-81220 | Bolt | 20003-20010 | |
| 26 | 01643-31232 | Washer | 20003-20010 | |
| 27 | 08193-21012 | Clip | 20003-20010 | |
| 28 | (154-06-74441) | Wiring Harness | - |
