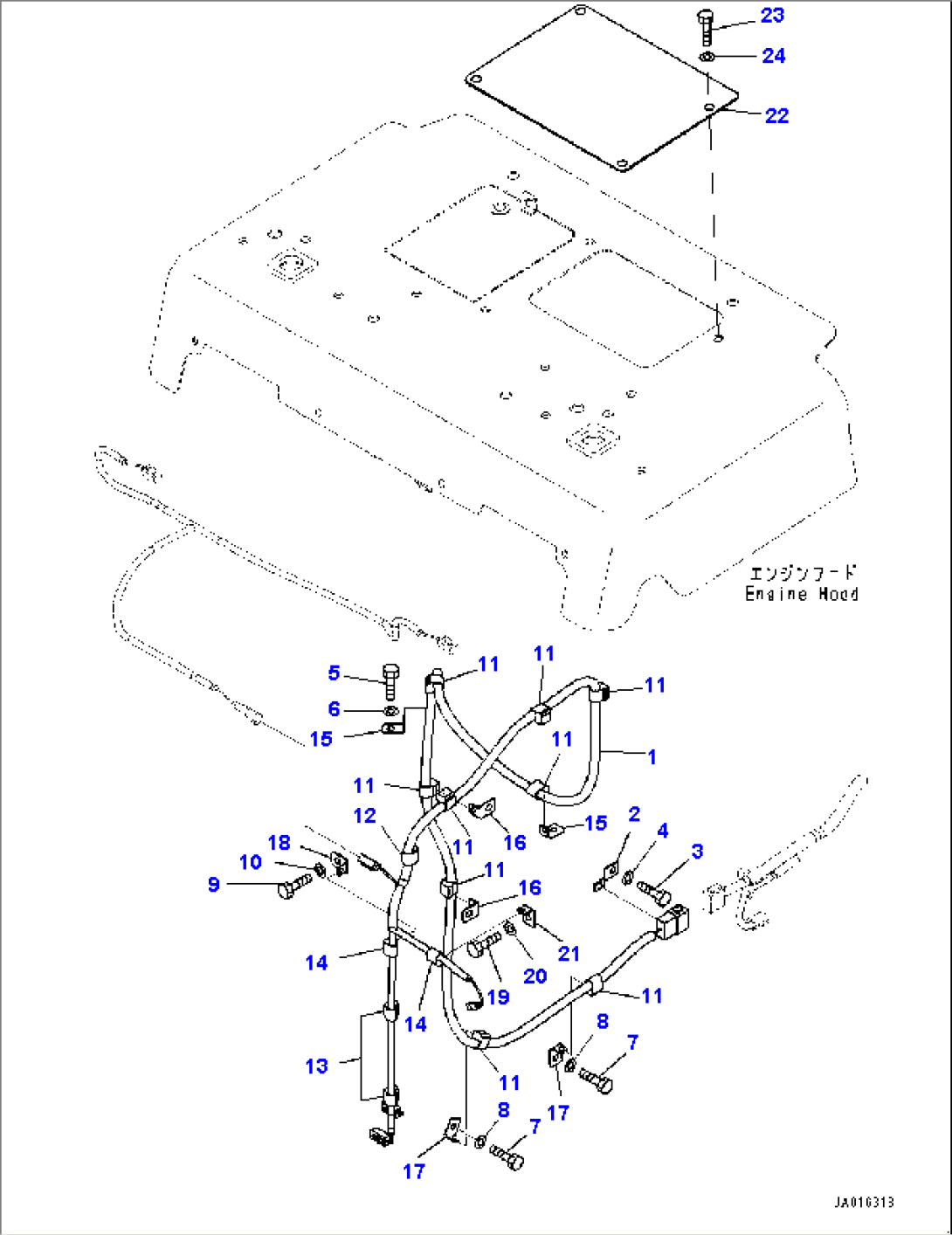

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-06-61241 | Wiring Harness | 1001- | |
| 2 | 08193-20010 | Clip | 1001- | |
| 3 | 01010-81020 | Bolt | 1001- | |
| 4 | 01643-31032 | Washer | 1001- | |
| 5 | 01010-81020 | Bolt | 1001- | |
| 6 | 01643-31032 | Washer | 1001- | |
| 7 | 01010-81020 | Bolt | 1001- | |
| 8 | 01643-31032 | Washer | 1001- | |
| 9 | 01010-81020 | Bolt | 1001- | |
| 10 | 01643-31032 | Washer | 1001- | |
| 11 | 08211-01020 | Clip | 1001- | |
| 12 | 08211-01020 | Clip | 1001- | |
| 13 | 08211-00720 | Clip | 1001- | |
| 14 | 08211-00720 | Clip | 1001- | |
| 15 | 08057-12010 | Clip | 1001- | |
| 16 | 08057-12010 | Clip | 1001- | |
| 17 | 08057-12010 | Clip | 1001- | |
| 18 | 08057-12010 | Clip | 1001- | |
| 19 | 01010-80820 | Bolt | 1001- | |
| 20 | 01643-30823 | Washer | 1001- | |
| 21 | 08057-12008 | Clip | 1001- | |
| 22 | 14X-54-61351 | Plate | 1001- | |
| 23 | 01010-81225 | Bolt | 1001- | |
| 24 | 01643-31232 | Washer | 1001- |
