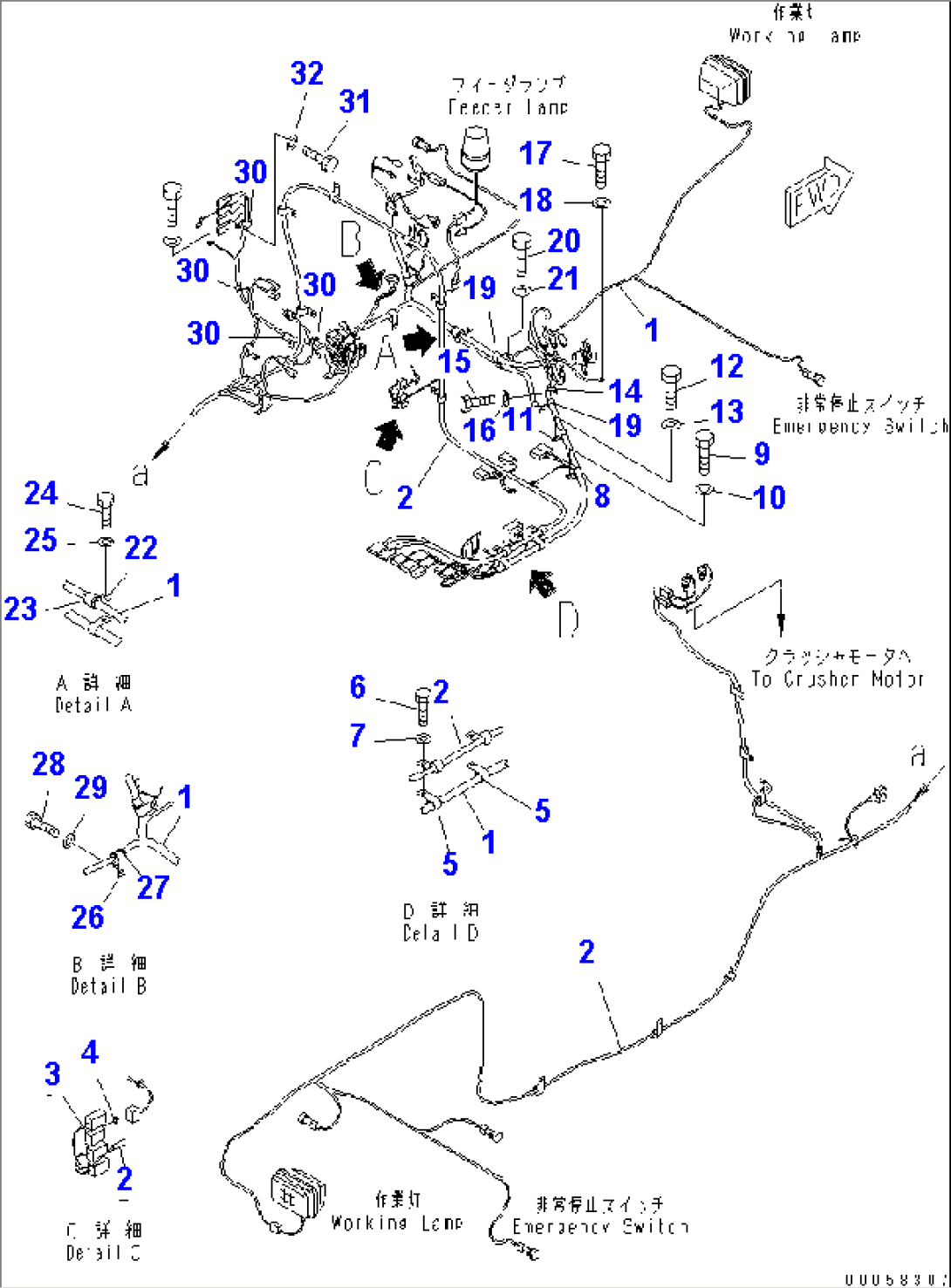

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8230-06-1122 | WIRING HARNESS | 1326- | |
| 1 | \0\8230-06-1121 | WIRING HARNESS | 1301-1325 | |
| 1 | 8221-06-1490 | CONNECTOR | 1301- | |
| 1 | 8221-06-1680 | CAP, BLACK | 1301- | |
| 1 | 20T-06-71790 | TERMINAL | 1301- | |
| 1 | 20T-06-81220 | CONNECTOR | 1301- | |
| 1 | 20T-06-81230 | FUSIBLE LINK | 1301- | |
| 1 | 56B-06-11510 | CONNECTOR | 1301- | |
| 2 | 8230-06-1142 | WIRING HARNESS | 1326- | |
| 2 | \0\8230-06-1141 | WIRING HARNESS | 1301-1325 | |
| 2 | 56B-06-11510 | CONNECTOR | 1301- | |
| 2 | 8221-06-1490 | CONNECTOR | 1301- | |
| 2 | 8229-06-1250 | WIRE | 1320- | |
| 3 | 08055-00292 | CONNECTOR | 1301- | |
| 4 | 08055-00070 | PLUG | 1301- | |
| 5 | 04434-53412 | CLIP | 1326- | |
| 6 | 01010-81220 | BOLT | 1326- | |
| 7 | 01643-31232 | WASHER | 1326- | |
| 8 | 04434-53412 | CLIP | 1326- | |
| 9 | 01010-81225 | BOLT | 1326- | |
| 10 | 01643-31232 | WASHER | 1326- | |
| 11 | 04434-52711 | CLIP | 1301- | |
| 12 | 01010-81025 | BOLT | 1301- | |
| 13 | 01643-31032 | WASHER | 1301- | |
| 14 | 04434-51410 | CLIP | 1326- | |
| 15 | 01010-81020 | BOLT | 1301- | |
| 16 | 01643-31032 | WASHER | 1301- | |
| 17 | 01010-81016 | BOLT | 1301- | |
| 18 | 01643-31032 | WASHER | 1301- | |
| 19 | 04434-52310 | CLIP | 1301- | |
| 20 | 01010-81025 | BOLT | 1301- | |
| 21 | 01643-31032 | WASHER | 1301- | |
| 22 | 04434-53211 | CLIP | 1301- | |
| 23 | 07095-20523 | CUSHION | 1301- | |
| 24 | 01010-81025 | BOLT | 1301- | |
| 25 | 01643-31032 | WASHER | 1301- | |
| 26 | 04434-53411 | CLIP | 1301- | |
| 27 | 07095-20627 | CUSHION | 1301- | |
| 28 | 01010-81025 | BOLT | 1301- | |
| 29 | 01643-31032 | WASHER | 1301- | |
| 30 | 04434-51410 | CLIP | 1310- | |
| 31 | 01010-81020 | BOLT | 1310- | |
| 32 | 01643-31032 | WASHER | 1310- |
