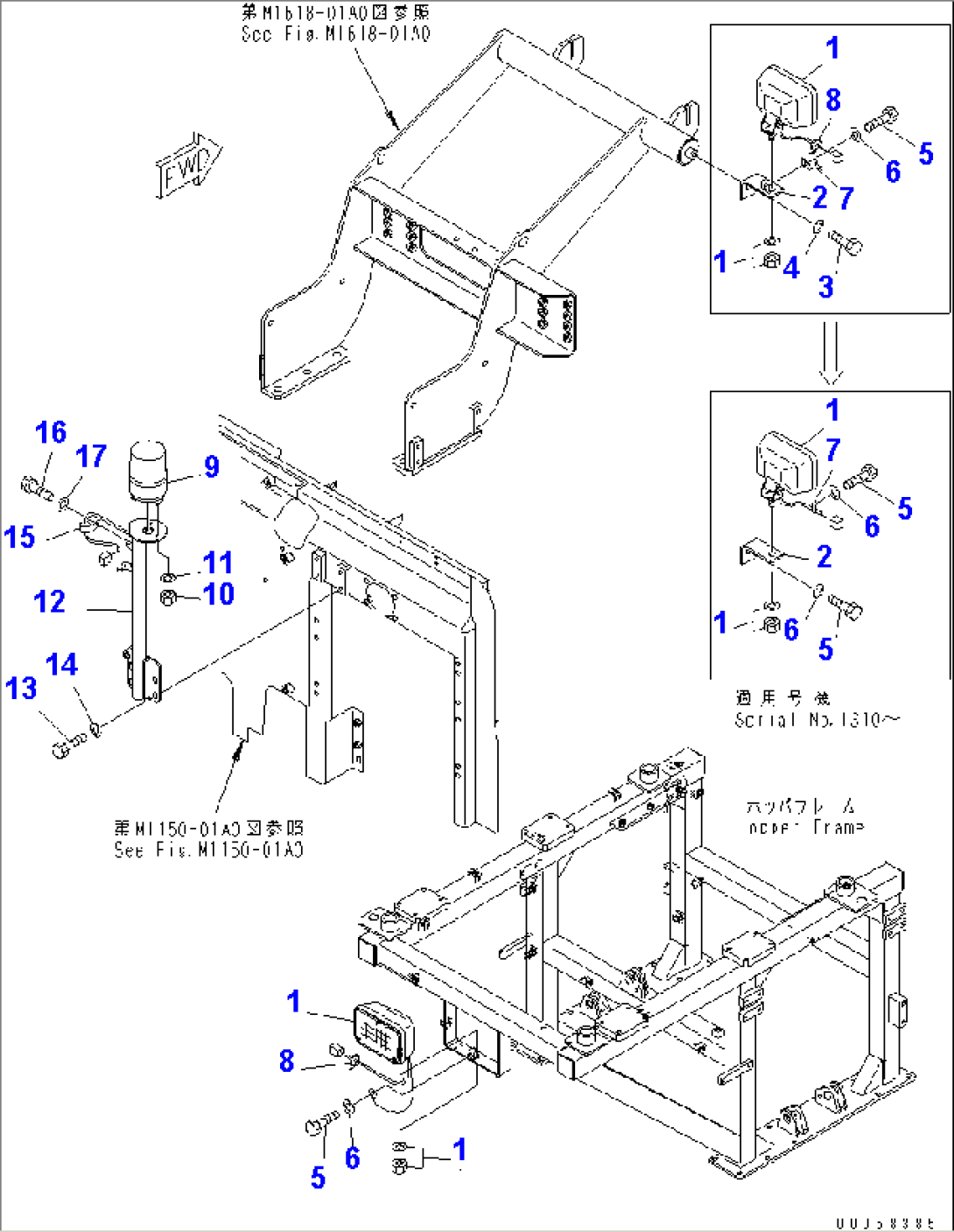

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-06-25310 | WORKING LAMP ASS'Y | 1301- | |
| 1 | 421-06-23330 | BULB, 70W,24V 70W | 1301- | |
| 2 | 20Y-06-21551 | BRACKET | 1301- | |
| 3 | 01010-81225 | BOLT | 1301-1309 | |
| 4 | 01643-31232 | WASHER | 1301-1309 | |
| 5 | 01010-81225 | BOLT | 1310- | |
| 5 | 01010-81225 | BOLT | 1301-1309 | |
| 6 | 01643-31232 | WASHER | 1310- | |
| 6 | 01643-31232 | WASHER | 1301-1309 | |
| 7 | 04434-50612 | CLIP | 1310- | |
| 7 | 08053-01512 | CLIP | 1301-1309 | |
| 8 | 08034-20536 | BAND | 1310- | |
| 8 | 08034-20536 | BAND | 1301-1309 | |
| 9 | 8206-06-3310 | LAMP ASS'Y,BEACON | 1301- | |
| 9 | 516-06-13310 | LAMP | 1301- | |
| 9 | 08055-00282 | CONNECTOR | 1301- | |
| 9 | 08110-12410 | BULB, 12W | 1301- | |
| 9 | 08023-06019 | TUBE | 1301- | |
| 9 | 08055-00282 | CONNECTOR | 1301- | |
| 10 | 01580-10403 | NUT | 1301- | |
| 11 | 01641-20405 | WASHER | 1301- | |
| 12 | 8230-06-1411 | STAY | 1301- | |
| 13 | 01010-81225 | BOLT | 1301- | |
| 14 | 01643-31232 | WASHER | 1301- | |
| 15 | 04434-50612 | CLIP | 1301- | |
| 16 | 01010-81220 | BOLT | 1301- | |
| 17 | 01643-31232 | WASHER | 1301- |
