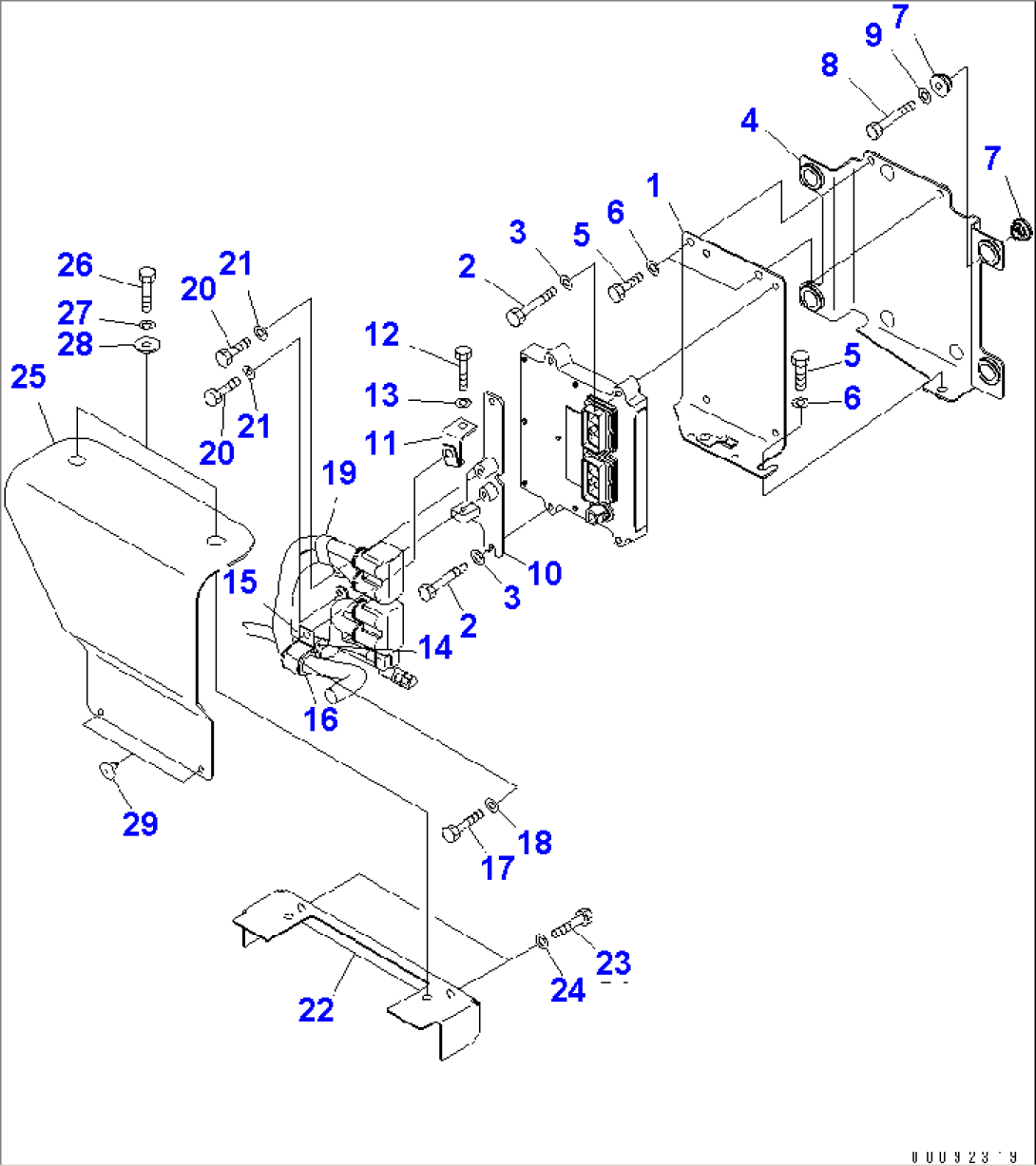

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22P-06-11152 | BRACKET | 10011-10406 | |
| 2 | 01010-80850 | BOLT | 10011-10406 | |
| 3 | 01643-30823 | WASHER | 10011-10406 | |
| 4 | 22P-06-11162 | BRACKET | 10011-10406 | |
| 5 | 01010-81020 | BOLT | 10011-10406 | |
| 6 | 01643-31032 | WASHER | 10011-10406 | |
| 7 | 6251-81-7210 | CUSHION | 10011-10406 | |
| 8 | 01010-80850 | BOLT | 10011-10406 | |
| 9 | 01643-30823 | WASHER | 10011-10406 | |
| 10 | 22P-06-11172 | BRACKET | 10011-10406 | |
| 11 | 22P-06-11830 | BRACKET | 10011-10406 | |
| 12 | 01010-81025 | BOLT | 10011-10406 | |
| 13 | 01643-31032 | WASHER | 10011-10406 | |
| 14 | 08211-11320 | CLIP | 10011-10406 | |
| 15 | 04434-53211 | CLIP | 10011-10406 | |
| 16 | 07095-20523 | CUSHION | 10011-10406 | |
| 17 | 01010-81025 | BOLT | 10011-10406 | |
| 18 | 01643-31032 | WASHER | 10011-10406 | |
| 19 | 04435-51910 | CLIP | 10011-10406 | |
| 20 | 01010-81016 | BOLT | 10011-10406 | |
| 21 | 01643-31032 | WASHER | 10011-10406 | |
| 22 | 201-06-81161 | COVER | 10011-10406 | |
| 23 | 01010-81020 | BOLT | 10011-10406 | |
| 24 | 01643-31032 | WASHER | 10011-10406 | |
| 25 | 201-06-81521 | SHEET | 10011-10406 | |
| 26 | 01010-81025 | BOLT | 10011-10406 | |
| 27 | 01643-31032 | WASHER | 10011-10406 | |
| 28 | 203-54-55660 | COLLAR | 10011-10406 | |
| 29 | 20T-54-74510 | CAP | 10011-10406 |
