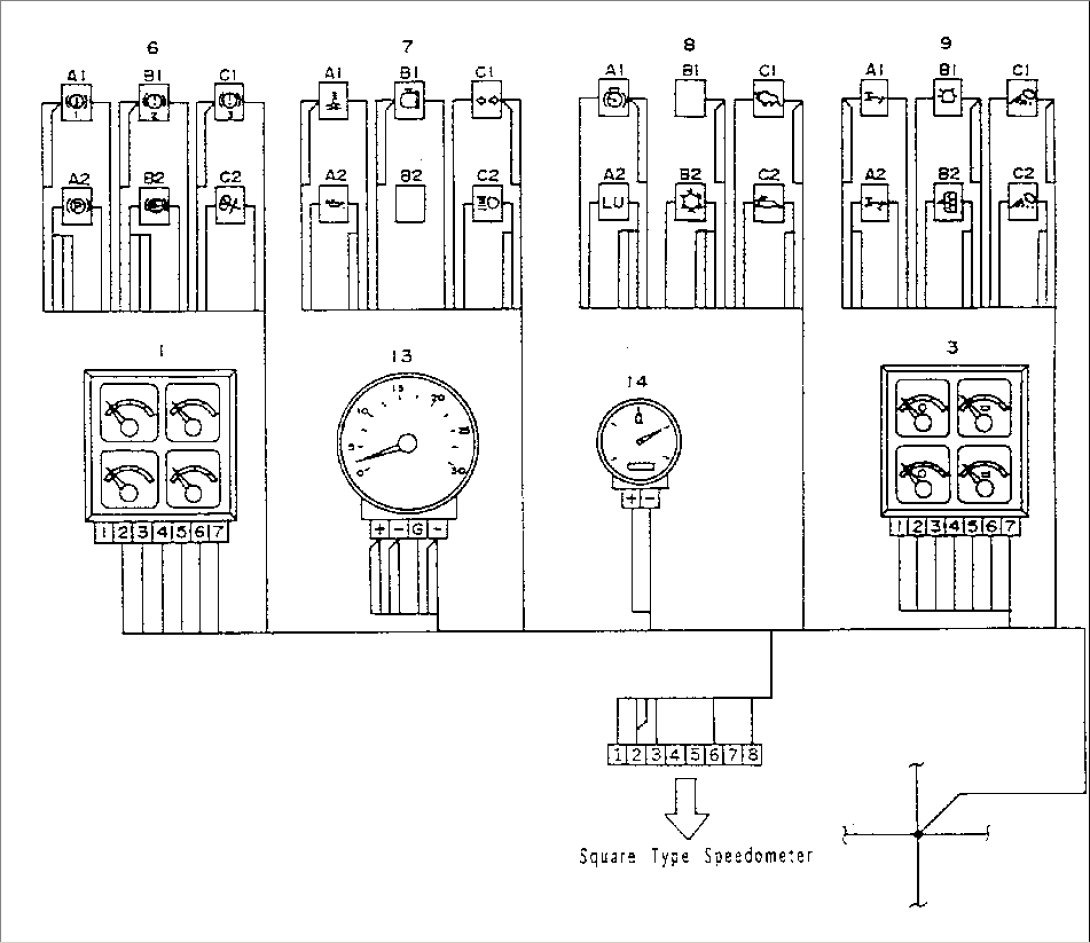

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BW156099 | GAUGE UNIT,ENGINE | 303073- | |
| 1 | BW056576 | GAUGE UNIT,ENGINE | 303001-303072 | |
| 1 | BW056535 | HOUSING,CONTACT | 303001- | |
| 3 | BW156100 | GAUGE UNIT,TRANSMISSION | 303073- | |
| 3 | BW056505 | GAUGE UNIT,TRANSMISSION | 303001-303072 | |
| 3 | BW056535 | HOUSING,CONTACT | 303001- | |
| 6 | BW056630 | INDICATOR,DOUBLE | 303001- | |
| 6 | BW056518 | CONTACT | 303001- | |
| 6 | BW056519 | SOCKET | 303001- | |
| 6 | BW066290 | BULB,(TYPE 6) | 303001- | |
| 7 | BW056630 | INDICATOR,DOUBLE | 303001- | |
| 7 | BW056518 | CONTACT | 303001- | |
| 7 | BW056519 | SOCKET | 303001- | |
| 7 | BW066290 | BULB,(TYPE 6) | 303001- | |
| 8 | BW056630 | INDICATOR,DOUBLE | 303001- | |
| 8 | BW056518 | CONTACT | 303001- | |
| 8 | BW056519 | SOCKET | 303001- | |
| 8 | BW066290 | BULB,(TYPE 6) | 303001- | |
| 9 | BW056630 | INDICATOR,DOUBLE | 303001- | |
| 9 | BW056518 | CONTACT | 303001- | |
| 9 | BW056519 | SOCKET | 303001- | |
| 9 | BW066290 | BULB,(TYPE 6) | 303001- | |
| 13 | BW056372 | TACHOMETER | 303001- | |
| 13 | BW066281 | BULB, 2W | 303001- | |
| 13 | BW066363 | HOUSING | 303001- | |
| 13 | BW066038 | TERMINAL,FEMALE | 303001- | |
| 14 | BW056079 | METER,HOUR | 303001- | |
| 14 | BW056044 | SOCKET | 303001- | |
| 14 | BW066038 | TERMINAL,FEMALE | 303001- |
