| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22T-06-25460 | WIRING HARNESS | 10001- | |
| 1 | (\2\22T-06-25260) | WIRING HARNESS | (10001-10137) | |
| 2 | (08053-01512) | CLIP | 10001- | |
| 3 | (08034-20519) | BAND | 10001- | |
| 4 | (01435-00812) | BOLT | 10001- |
- Главная
- Каталог запчастей
- Автокраны
- Lw100 1h s/n 10001 up (h type)
- Electrical system
- Electrical (lower harness) (front lamp line)
Поиск по каталогу

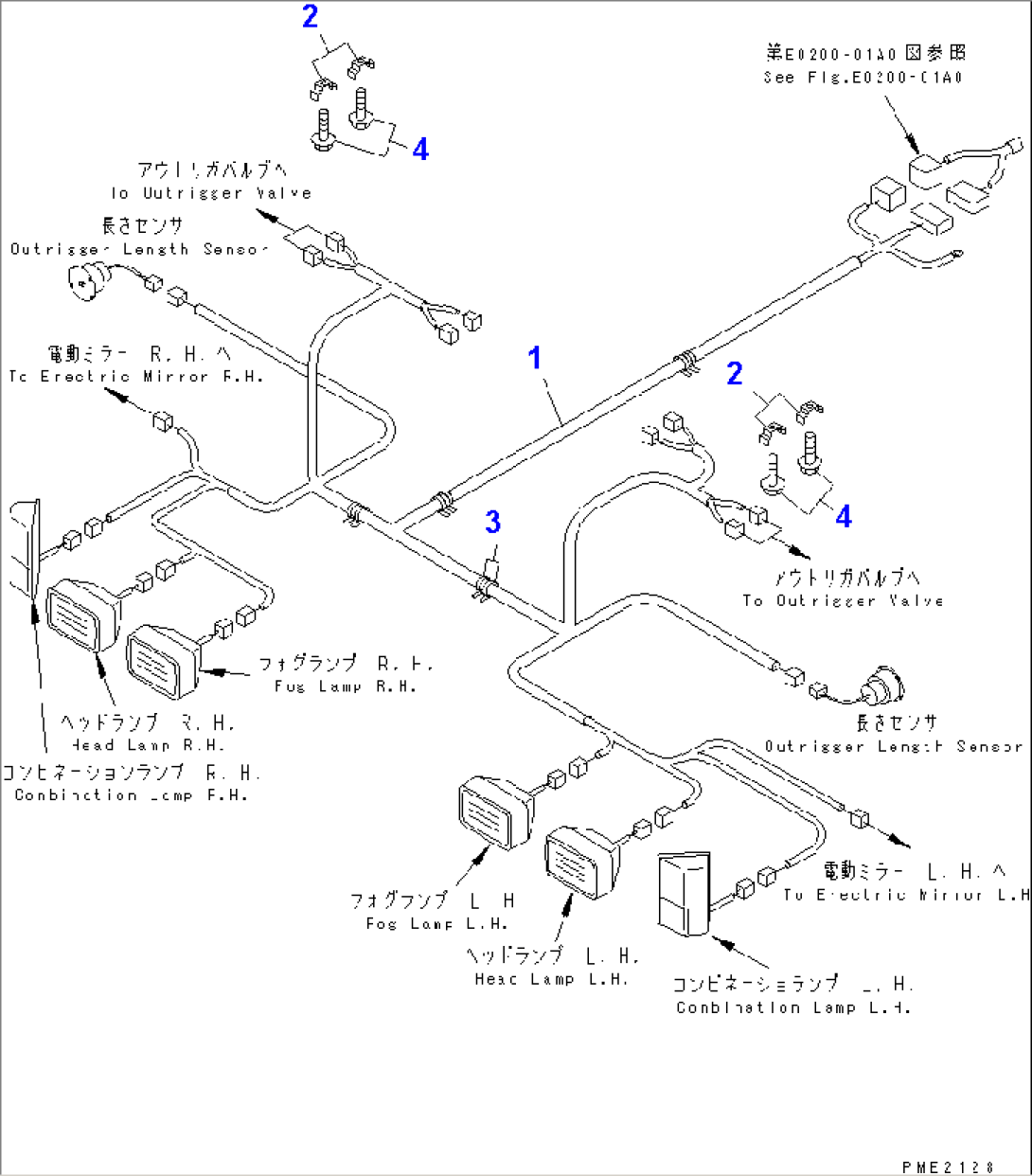

ELECTRICAL (LOWER HARNESS) (FRONT LAMP LINE)
