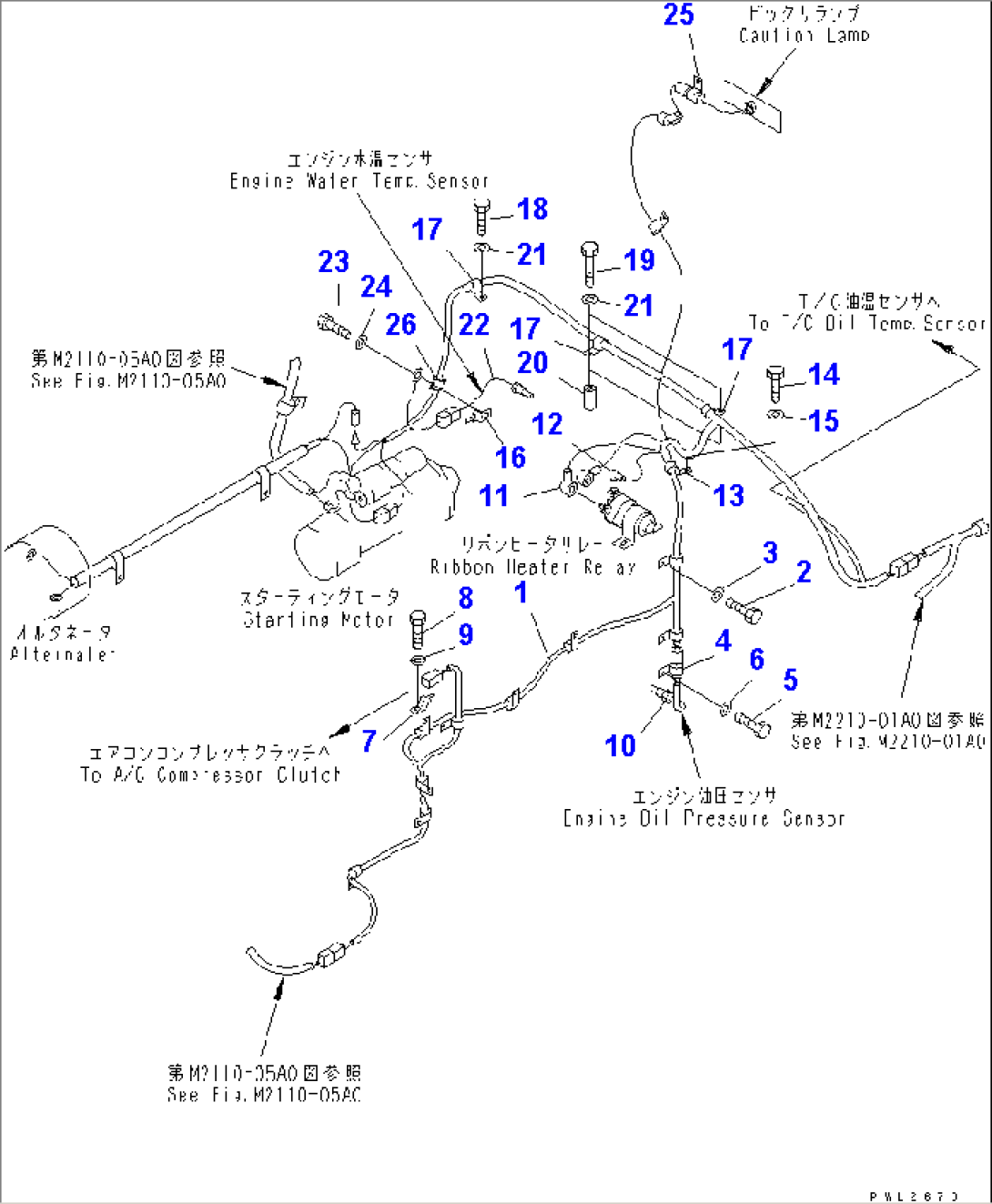

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 175-06-71142 | WIRING HARNESS | 57259- | |
| 175-06-71141 | WIRING HARNESS | 57001-57258 | ||
| 2 | 01010-81020 | BOLT | 57001- | |
| 3 | 01643-31032 | WASHER | 57001- | |
| 4 | 08052-31711 | CLIP | 57001- | |
| 5 | 01010-81020 | BOLT | 57001- | |
| 6 | 01643-31032 | WASHER | 57001- | |
| 7 | 08053-01512 | CLIP | 57001- | |
| 8 | 01010-81020 | BOLT | 57001- | |
| 9 | 01643-31032 | WASHER | 57001- | |
| 10 | 15A-06-11190 | SENSOR | 57001- | |
| 11 | 08038-02027 | CAP | 57001- | |
| 12 | 08038-00519 | CAP | 57001- | |
| 13 | 08036-01414 | CLIP | 57001- | |
| 14 | 01010-81035 | BOLT | 57001- | |
| 15 | 01643-31032 | WASHER | 57001- | |
| 16 | 08053-00910 | CLIP | 57001- | |
| 17 | 08036-01414 | CLIP | 57001- | |
| 18 | 01010-81220 | BOLT | 57001- | |
| 19 | 01010-81270 | BOLT | 57001- | |
| 20 | 175-40-22540 | SPACER | 57001- | |
| 21 | 01643-31232 | WASHER | 57001- | |
| 22 | 7861-92-3320 | SENSOR | 57001- | |
| 23 | 01010-81020 | BOLT | 57001- | |
| 24 | 01643-31032 | WASHER | 57001- | |
| 25 | 195-06-41740 | PLUG | 57001- | |
| 26 | 08036-01014 | CLIP | 57001- |
