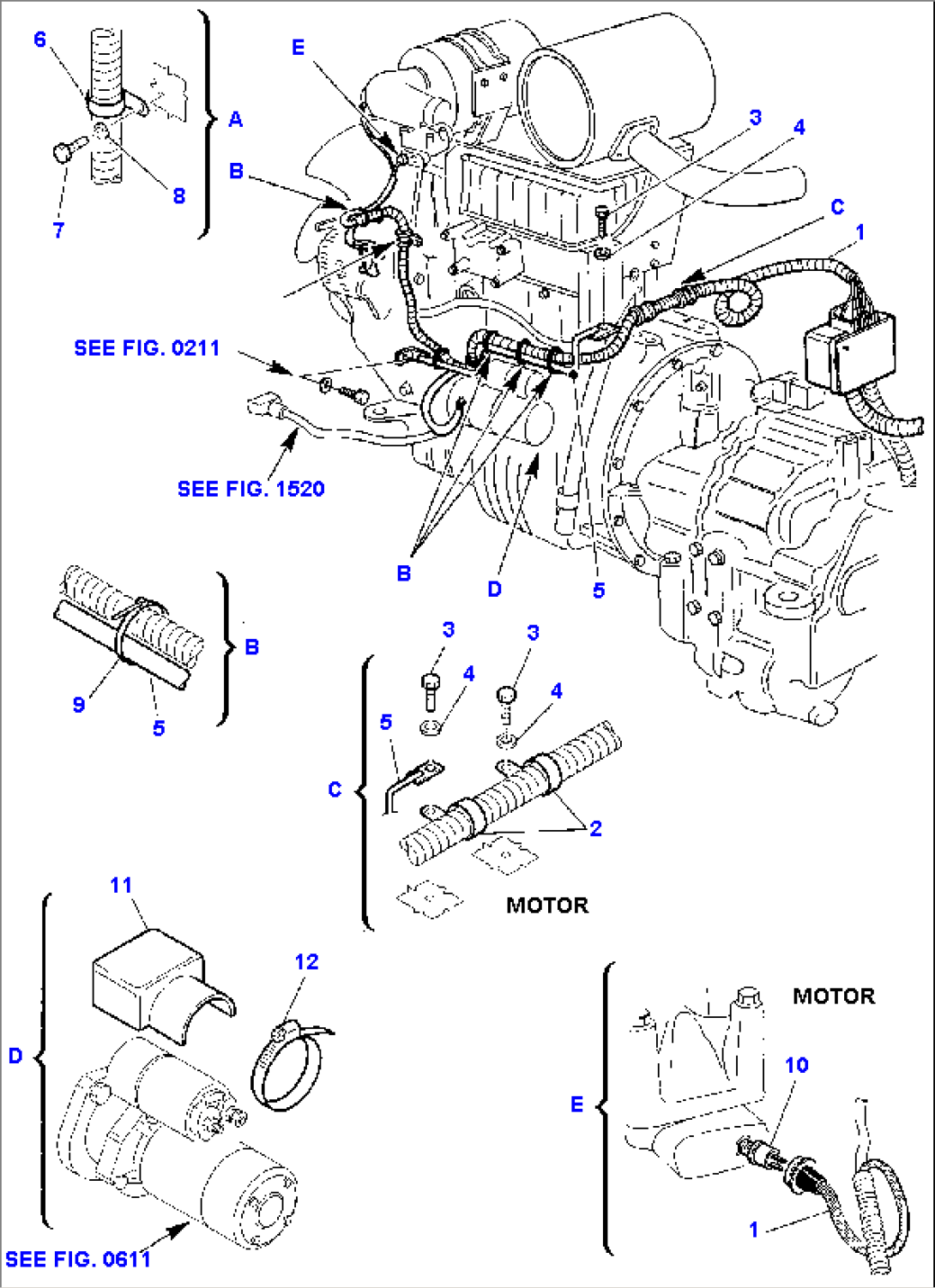

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312612115 | WIRING HARNESS, ASSY | 15050001- | |
| 2 | 802660034 | COLLAR | 15050001- | |
| 3 | 801015109 | BOLT | 15050001- | |
| 4 | 802170002 | WASHER | 15050001- | |
| 5 | 312612057 | SUPPORT | 15050001- | |
| 6 | 802660501 | COLLAR | 15050001- | |
| 7 | 801015108 | BOLT | 15050001- | |
| 8 | 802170002 | WASHER | 15050001- | |
| 9 | 885180010 | CLAMP | 15050001- | |
| 10 | 885070024 | WATER TEMPERATURE TRANSMITTER | 15050001- | |
| 11 | 312607707 | COVER | 15050001- | |
| 12 | 885190006 | WRAPPER | 15050001- | |
| SEE FIG. 0211 | ||||
| SEE FIG. 0611 | ||||
| SEE FIG. 1520 |
