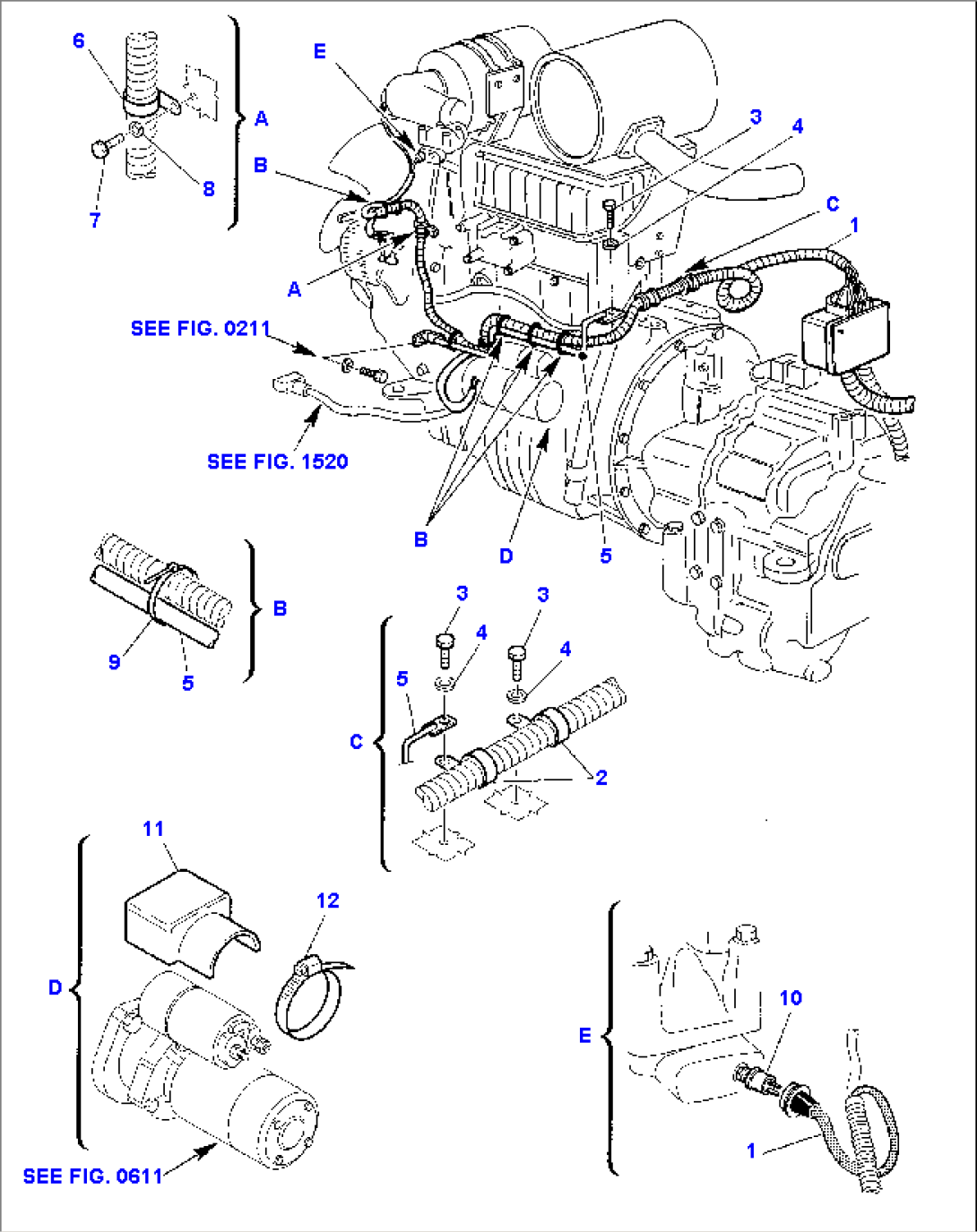

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312612093 | WIRING HARNESS, ASSY | 150F10001-150F10124 | |
| 1 | 312612109 | WIRING HARNESS, ASSY | 150F10125- | |
| 2 | 802660034 | COLLAR | 150F10001- | |
| 3 | 801015109 | BOLT | 150F10001- | |
| 4 | 802170002 | WASHER | 150F10001- | |
| 5 | 312612057 | SUPPORT | 150F10001- | |
| 6 | 802660501 | COLLAR | 150F10001-150F10160 | |
| 6 | 802660508 | COLLAR | 150F10161- | |
| 7 | 801015108 | BOLT | 150F10001- | |
| 8 | 802170002 | WASHER | 150F10001- | |
| 9 | 885180010 | CLAMP | 150F10001- | |
| 10 | 885070024 | WATER TEMPERATURE TRANSMITTER | 150F10001- | |
| 11 | 312607707 | COVER | 150F10125- | |
| 12 | 885190006 | WASHER | 150F10125- | |
| SEE FIG. 0211 | ||||
| SEE FIG. 0611 | ||||
| SEE FIG. 1520 |
