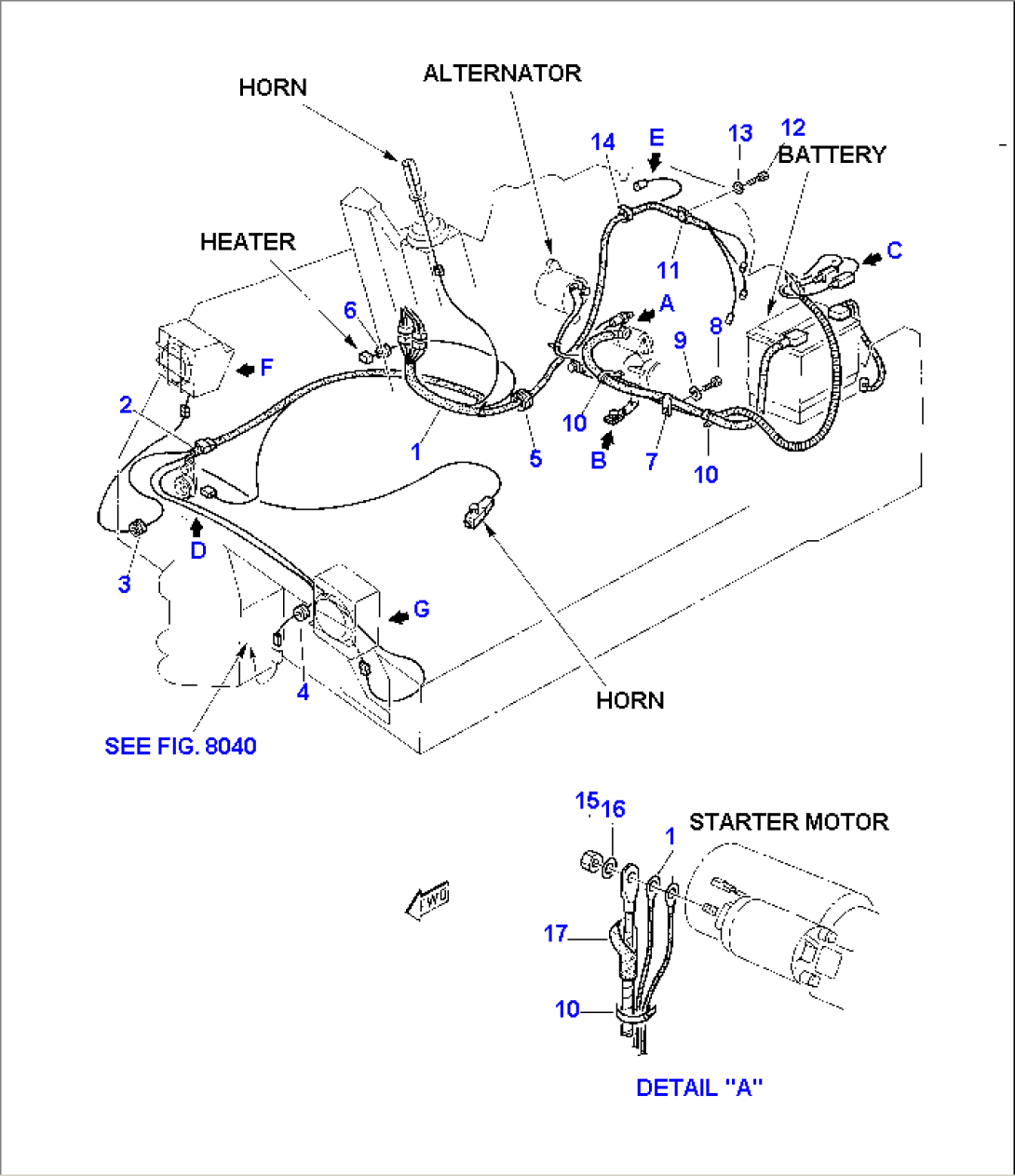

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 885270113 | WIRING HARNESS | ||
| 2 | 885270115 | WIRING | ||
| 3 | 885411055 | RUBBER | 23000014-23000372 | |
| 4 | 885411025 | RUBBER | ||
| 5 | 885411130 | RUBBER | ||
| 6 | 855411049 | RUBBER | ||
| 7 | 802660034 | COLLAR | ||
| 8 | 801015108 | BOLT | ||
| 9 | 802170002 | WASHER | ||
| 10 | 885180004 | HOSE-CLAMP | ||
| 11 | 802660504 | CLAMP | ||
| 12 | 801015084 | BOLT | ||
| 13 | 802170001 | WASHER | ||
| 14 | 885180012 | HOSE-CLAMP | ||
| 15 | 801920104 | NUT | ||
| 16 | 802070008 | WASHER | ||
| 17 | 885240002 | CAP | ||
| SEE FIG. 8040 |
