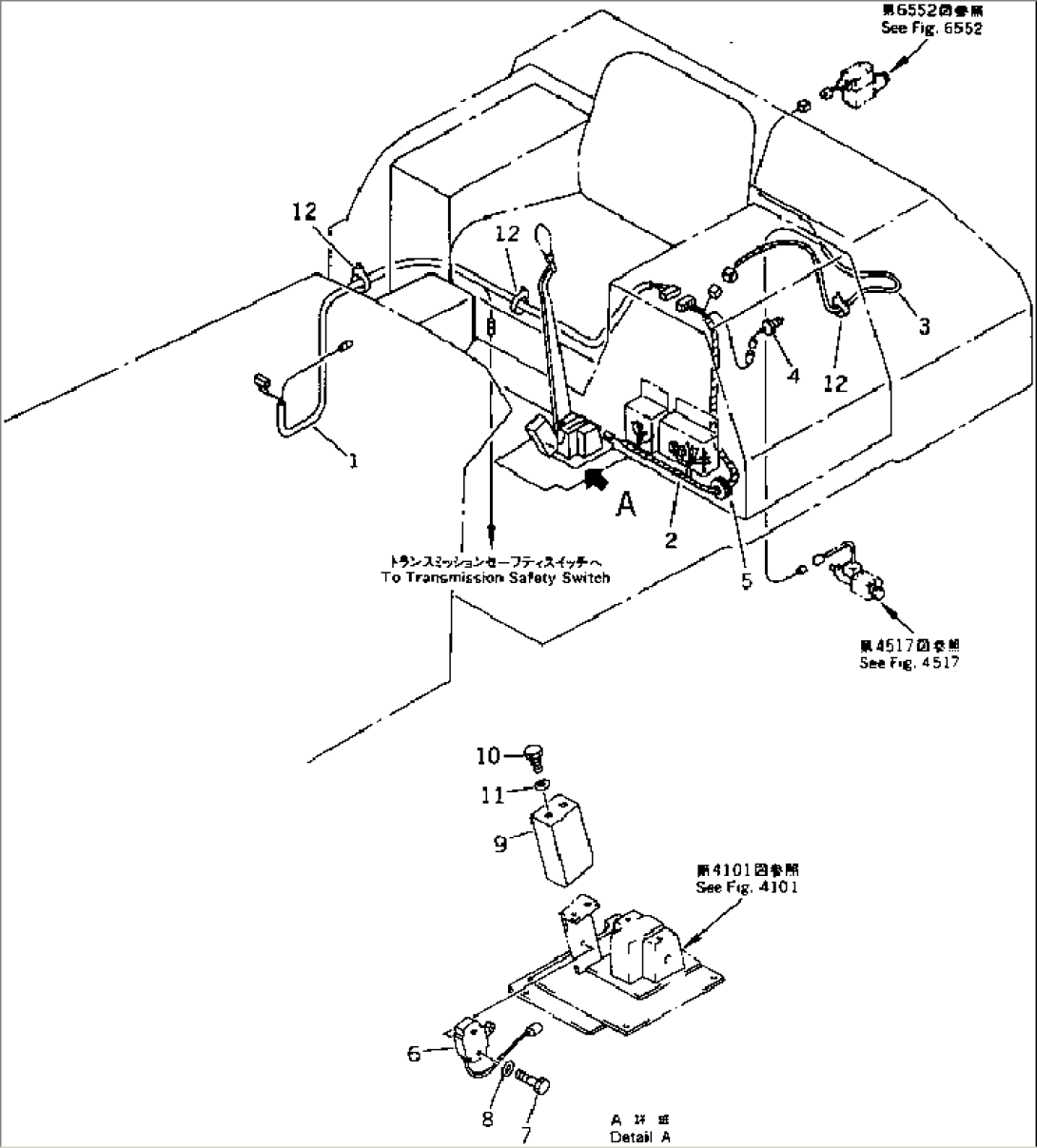

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (KZ10-01-4950) | HARNESS | 1001- | |
| 2 | KZ10-01-4960 | HARNESS | 1001- | |
| 3 | KZ10-01-4930 | HARNESS | 1001- | |
| 4 | 234-06-13370 | SWITCH | 1001- | |
| 5 | 08037-03614 | GROMMET | 1001- | |
| 6 | 08076-20500 | SWITCH,LIMIT | 1001- | |
| 7 | 01010-51035 | BOLT | 1001- | |
| 8 | 01643-31032 | WASHER | 1001- | |
| 9 | KZ10-01-6651 | COVER | 1001- | |
| 10 | 01010-50610 | BOLT | 1001- | |
| 11 | 01641-20608 | WASHER | 1001- | |
| 12 | 08034-00414 | BAND | 1001- |
