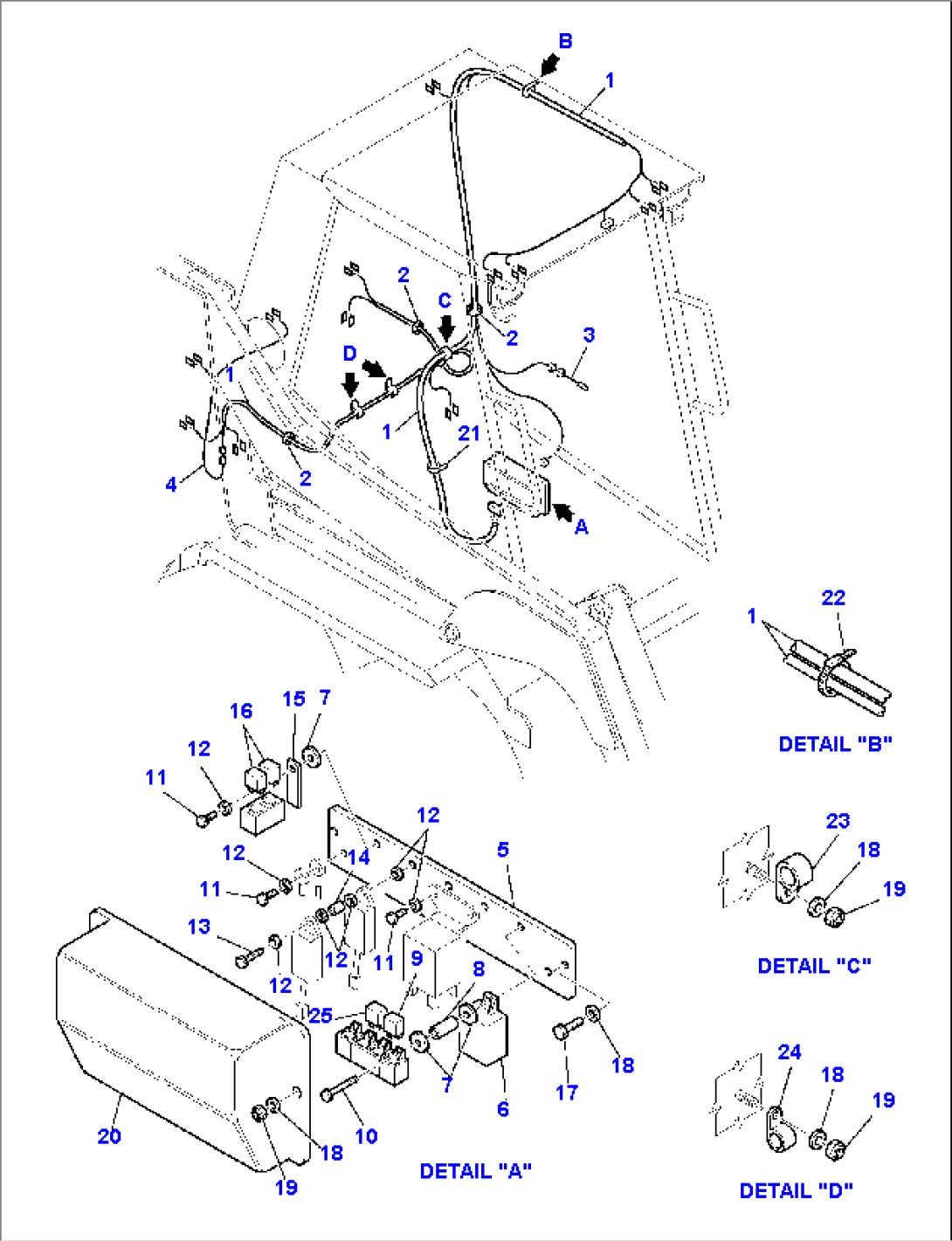

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 885270600 | WIRING HARNESS | SK09JF2000- | |
| 2 | 885411049 | GROMMET | SK09JF2000- | |
| 3 | 334412060 | WIRING HARNESS | SK09JF2000- | |
| 4 | 885270602 | WIRING HARNESS | SK09JF2000- | |
| 5 | 885411448 | SUPPORT | SK09JF2000- | |
| 6 | 885070036 | RELAY | SK09JF2000- | |
| 7 | 802070006 | WASHER | SK09JF2000- | |
| 8 | \6\ | SPACER | SK09JF2000- | |
| 9 | 885071034 | RELAY | SK09JF2000- | |
| 10 | 801014055 | BOLT | SK09JF2000- | |
| 11 | 801014041 | BOLT | SK09JF2000- | |
| 12 | 802120006 | SPRING WASHER | SK09JF2000- | |
| 13 | 801014048 | BOLT | SK09JF2000- | |
| 14 | \6\ | SPACER | SK09JF2000- | |
| 15 | 885411226 | BRACKET | SK09JF2000- | |
| 16 | 885071022 | RELAY | SK09JF2000- | |
| 17 | 801015086 | BOLT | SK09JF2000- | |
| 18 | 802170001 | SPRING WASHER | SK09JF2000- | |
| 19 | 801880208 | NUT | SK09JF2000- | |
| 20 | 338812605 | PROTECTION | SK09JF2000- | |
| 21 | 885180010 | HOSE-CLAMP | SK09JF2000- | |
| 22 | 885180004 | HOSE-CLAMP | SK09JF2000- | |
| 23 | 802660028 | HOSE-CLAMP | SK09JF2000- | |
| 24 | 802660500 | HOSE-CLAMP | SK09JF2000- | |
| 25 | 885071034 | RELAY | SK09JF2000- |
