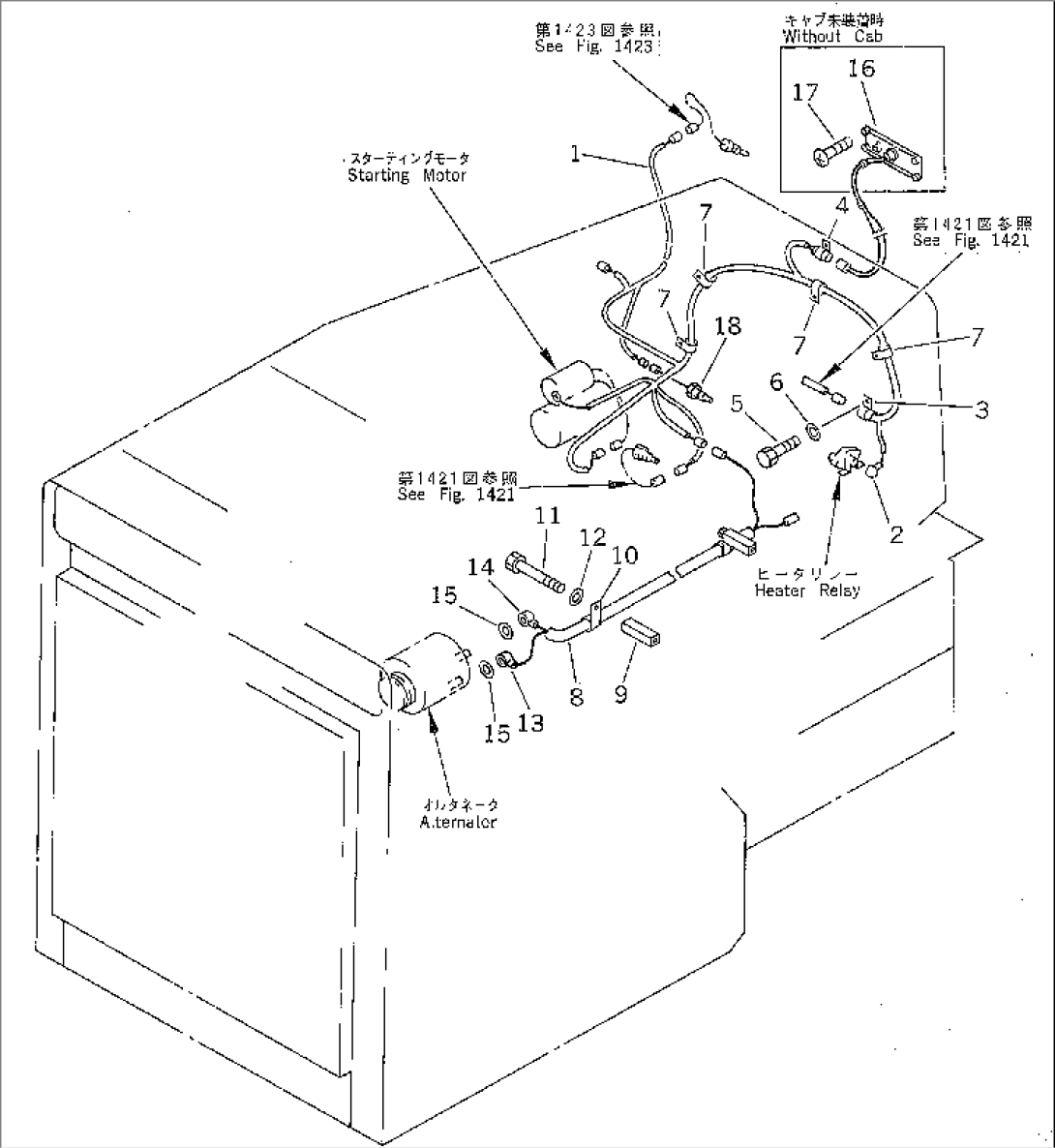

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-06-41370 | WIRING HARNESS | 3001- | |
| 2 | 08038-02027 | CAP | 3001- | |
| 3 | 195-06-41830 | CLIP | 3001- | |
| 4 | 195-06-41820 | CLIP | 3001- | |
| 5 | 01010-51220 | BOLT | 3001- | |
| 6 | 01643-31232 | WASHER | 3001- | |
| 7 | 08036-11214 | CLIP | 3001- | |
| 8 | 154-06-41150 | WIRING HARNESS | 3001- | |
| 9 | 195-01-16420 | COLLAR | 3001- | |
| 10 | 08035-02508 | CLIP | 3001- | |
| 11 | 01011-51030 | BOLT | 3163- | |
| 01011-51025 | BOLT | 3001-3162 | ||
| 12 | 01643-31032 | WASHER | 3001- | |
| 13 | 140-06-18260 | CAP | 3001- | |
| 14 | 08038-02027 | CAP | 3001- | |
| 15 | 01640-20610 | WASHER | 3001- | |
| 16 | 195-06-41360 | DISPLAY ASS'Y | 3001- | |
| 17 | 01220-70625 | SCREW | 3001- | |
| 18 | 7861-91-3310 | SENSOR,T/C OIL TEMPERATURE | 3001- |
