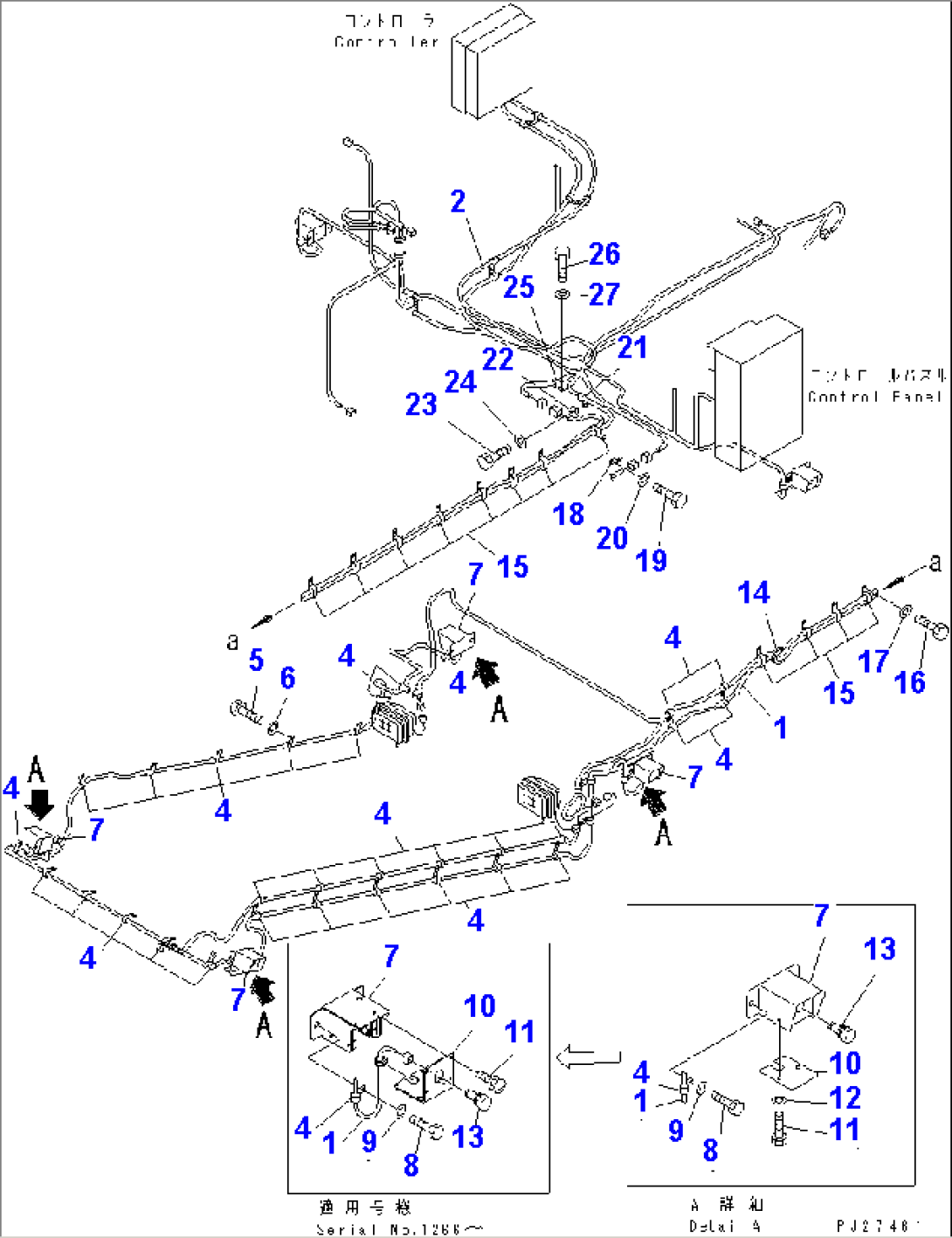

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8287-06-1631 | WIRING HARNESS | 1101- | |
| 2 | 8287-06-1621 | WIRING HARNESS | 1106- | |
| 4 | 08036-01014 | CLIP | 1106- | |
| 5 | 01010-81220 | BOLT | 1106- | |
| 6 | 01643-31232 | WASHER | 1106- | |
| 7 | 8253-06-1221 | BOX | 1266- | |
| 8253-06-1220 | BOX | 1106-1265 | ||
| 8 | 01010-81020 | BOLT | 1106- | |
| 9 | 01643-31032 | WASHER | 1106- | |
| 10 | 8253-06-1211 | PLATE | 1266- | |
| 8253-06-1210 | PLATE | 1106-1265 | ||
| 11 | 01023-10412 | SCREW | 1266- | |
| 11 | 01010-80620 | BOLT | 1106-1265 | |
| 12 | 01643-30623 | WASHER | 1106-1265 | |
| 13 | 8221-06-1470 | SWITCH | 1106- | |
| 8221-06-1660 | CAP¤ RED | 1106- | ||
| 14 | 08037-05016 | GROMMET | 1182- | |
| 15 | 04435-51012 | CLIP | 1101- | |
| 16 | 01010-81220 | BOLT | 1101- | |
| 17 | 01643-31232 | WASHER | 1101- | |
| 18 | 08053-01512 | CLIP | 1101- | |
| 19 | 01010-81020 | BOLT | 1101- | |
| 20 | 01643-31032 | WASHER | 1101- | |
| 21 | 04434-51012 | CLIP | 1101- | |
| 22 | 08053-01512 | CLIP | 1101- | |
| 23 | 01010-81220 | BOLT | 1101- | |
| 24 | 01643-31232 | WASHER | 1101- | |
| 25 | 08036-01814 | CLIP | 1101- | |
| 26 | 01010-81220 | BOLT | 1101- | |
| 27 | 01643-31232 | WASHER | 1101- |
