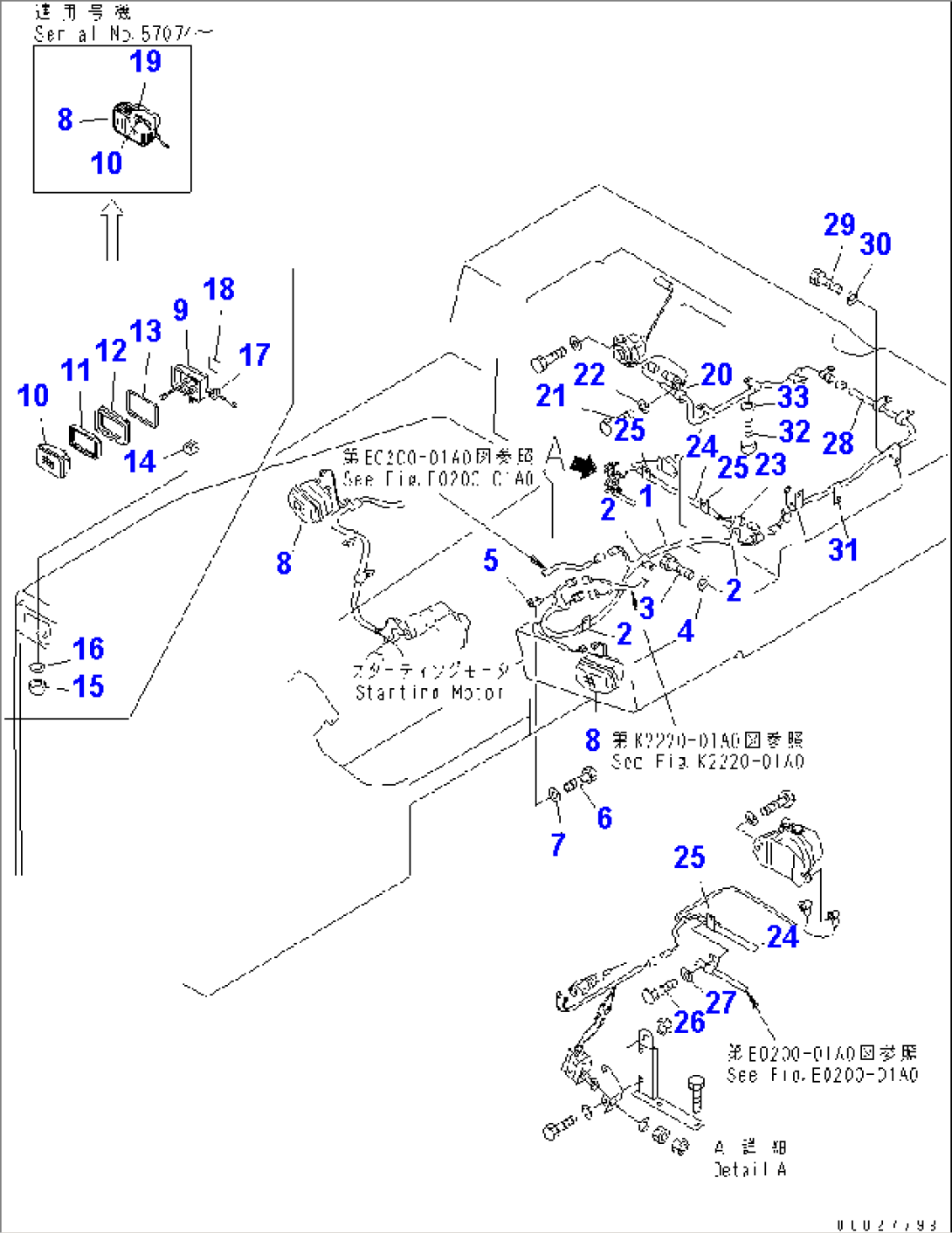

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 175-06-71172 | WIRING HARNESS | 57285- | |
| 1 | 175-06-71171 | WIRING HARNESS | 57001-57284 | |
| 2 | 04434-52711 | CLIP | 57001- | |
| 3 | 01010-81016 | BOLT | 57001- | |
| 4 | 01643-31032 | WASHER | 57001- | |
| 5 | 08053-01510 | CLIP | 57001- | |
| 6 | 01010-81016 | BOLT | 57001- | |
| 7 | 01643-31032 | WASHER | 57001- | |
| 17A-06-17941 | LAMP ASS'Y | 71122- | ||
| \0\17A-06-17940 | LAMP ASS'Y | 57074-71121 | ||
| 8 | 23S-05-28210 | LAMP ASS'Y | 57001-57073 | |
| 9 | 203-06-56160 | HOUSING | 57001-57073 | |
| 10 | 17A-06-17970 | BULB, 70W | 57074- | |
| 10 | 22W-06-12170 | BULB | 57001-57073 | |
| 11 | 203-06-56180 | RING | 57001-57073 | |
| 12 | 22W-06-12290 | CUSHION | 57001-57073 | |
| 13 | 203-06-56190 | RING | 57001-57073 | |
| 14 | 22W-06-12160 | SEAT | 57001-57073 | |
| 15 | 01582-11411 | NUT | 57001-57073 | |
| 16 | 01602-21442 | WASHER | 57001-57073 | |
| 17 | 09415-01008 | CAP | 57001-57073 | |
| 18 | 23S-05-28220 | PLATE, NAME | 57001-57073 | |
| 19 | 17A-06-17980 | SLEEVE | 57074- | |
| 20 | 04434-51510 | CLIP | 57001- | |
| 21 | 01010-81016 | BOLT | 57001- | |
| 22 | 01643-31032 | WASHER | 57001- | |
| 23 | 195-06-41830 | CLIP | 57001- | |
| 24 | 175-06-61180 | WIRING HARNESS | 57001- | |
| 25 | 04434-52310 | CLIP | 57001- | |
| 26 | 01010-81016 | BOLT | 57001- | |
| 27 | 01643-31032 | WASHER | 57001- | |
| 28 | 175-06-61210 | WIRING HARNESS | 57001- | |
| 29 | 01010-81220 | BOLT | 57001- | |
| 30 | 01643-31232 | WASHER | 57001- | |
| 31 | 04434-51510 | CLIP | 57001- | |
| 32 | 01010-81016 | BOLT | 57001- | |
| 33 | 01643-31032 | WASHER | 57001- |
