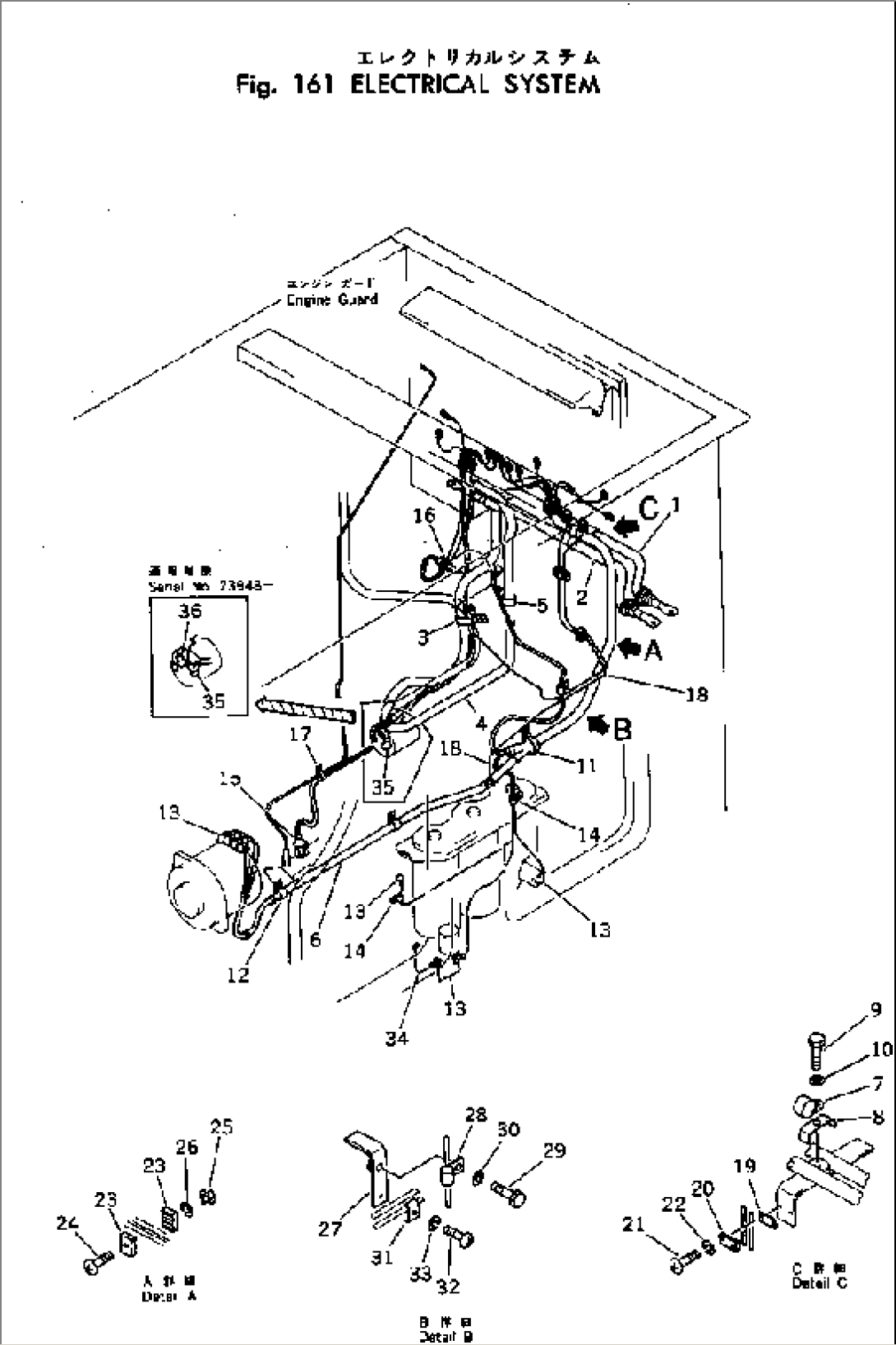

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 177-06-12760 | CABLE | 12128- | |
| 2 | 177-06-12770 | CABLE | 12128- | |
| 3 | 155-06-15180 | CLAMP | 12128- | |
| 4 | 177-06-12690 | WIRE ASS'Y | 12128- | |
| 5 | 08035-03014 | CLIP | 12128- | |
| 6 | 177-06-12681 | WIRE ASS'Y | 23891- | |
| 6 | 177-06-12680 | WIRE ASS'Y | 12128-23890 | |
| 7 | 08035-03014 | CLIP | 12128- | |
| 8 | 08039-05015 | CLAMP | 12128- | |
| 9 | 01010-51230 | BOLT | 12128- | |
| 10 | 01643-31232 | WASHER | 12128- | |
| 11 | 175-06-36251 | CLAMP | 12128- | |
| 12 | 08035-03014 | CLIP | 12128- | |
| 13 | 140-06-18260 | CAP | 12128- | |
| 14 | 08036-00614 | CLIP | 12128- | |
| 15 | 08549-01200 | SWITCH,THERMO | 12128- | |
| 16 | 08549-01025 | SWITCH,THERMO | 12128- | |
| 17 | 08036-10814 | CLIP | 12128- | |
| 18 | 175-06-37530 | TUBE | 12128- | |
| 19 | 195-06-13320 | CUSHION | 12128- | |
| 20 | 195-06-13330 | CLAMP | 12128- | |
| 21 | 01220-40420 | SCREW | 12128- | |
| 22 | 01601-20410 | WASHER | 12128- | |
| 23 | 195-06-13370 | CLAMP | 12128- | |
| 24 | 01220-40420 | SCREW | 12128- | |
| 25 | 01580-10403 | NUT | 12128- | |
| 26 | 01601-20410 | WASHER | 12128- | |
| 27 | 175-06-37510 | PLATE | 12128- | |
| 28 | 08036-10614 | CLIP | 12128- | |
| 29 | 01010-51016 | BOLT | 12128- | |
| 30 | 01602-21030 | WASHER | 12128- | |
| 31 | 195-06-13370 | CLAMP | 12128- | |
| 32 | 01220-30420 | SCREW | 12128- | |
| 33 | 01601-20410 | WASHER | 12128- | |
| 34 | 175-07-23480 | WIRE | 23891- | |
| 35 | 154-06-13320 | CAP | 23948- | |
| 35 | 154-06-13130 | CAP | 23891-23947 | |
| 36 | 140-06-18260 | CAP | 23948- |
