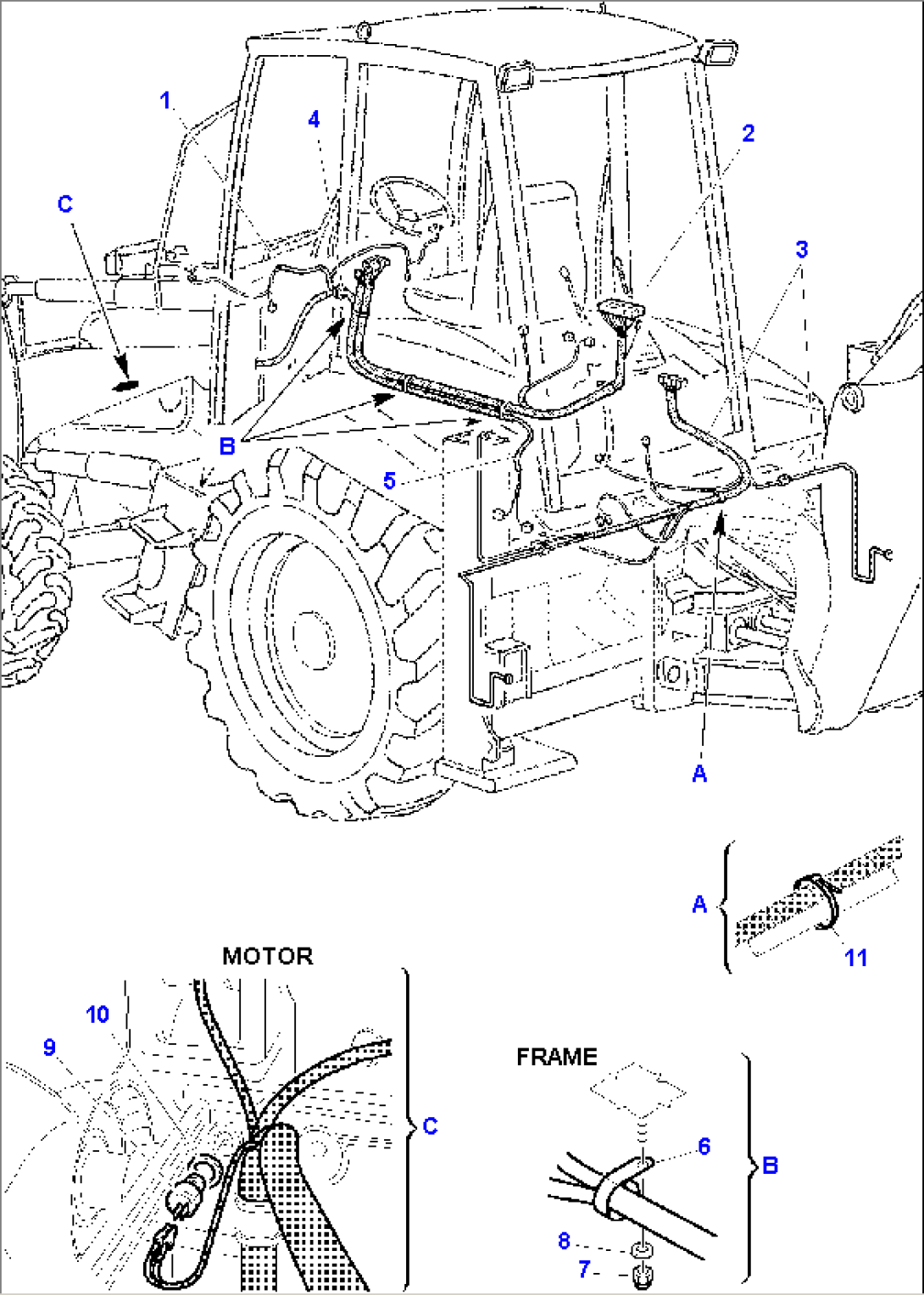

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312612111 | WIRING HARNESS, FRONT | 97F20887- | |
| 2 | 312612129 | WIRING HARNESS, ASSY | 97F20887- | |
| 3 | 312612066 | WIRING HARNESS, REAR | 97F20887- | |
| 4 | 885411429 | CABLE HOLDER | 97F20887- | |
| 5 | 312612068 | WIRING, ELECTRO-VALVE | 97F20887- | |
| 6 | 802660506 | CLAMP | 97F20887- | |
| 7 | 802170001 | WASHER | 97F20887- | |
| 8 | 801880208 | SELF-LOCKING NUT | 97F20887- | |
| 9 | (YM121250-44901) | WATER TEMPERATURE SENSOR | 97F20887- | |
| 10 | (YM124465-44950) | GASKET | 97F20887- | |
| 11 | 885180010 | WRAPPER | 97F20887- |
