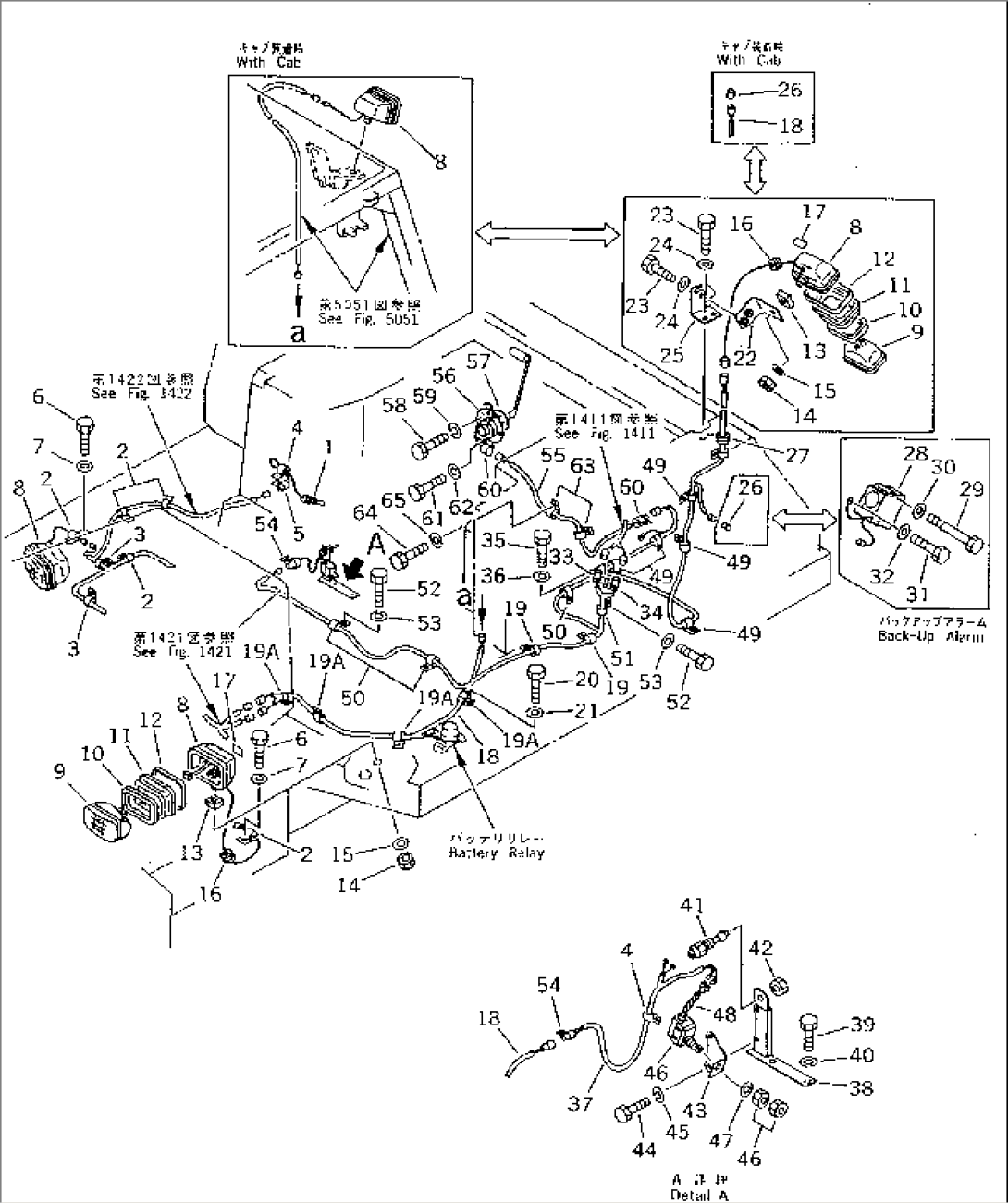

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7861-99-3400 | SENSOR,HYDRAULIC OIL TEMPERATURE | 10301- | |
| 2 | 21T-38-12270 | CLIP | 10301- | |
| 3 | 08036-00814 | CLIP | 10301- | |
| 4 | 362-43-18780 | CLIP | 10301- | |
| 5 | 195-06-41810 | CLIP | 10301- | |
| 6 | 01010-51220 | BOLT | 10301- | |
| 7 | 01643-31232 | WASHER | 10301- | |
| 23S-05-28210 | LAMP ASS'Y | 10301- | ||
| 8 | 203-06-56160 | HOUSING | 10301- | |
| 9 | 22W-06-12170 | BULB | 10301- | |
| 10 | 203-06-56180 | RING | 10301- | |
| 11 | 22W-06-12290 | CUSHION | 10301- | |
| 12 | 203-06-56190 | RING | 10301- | |
| 13 | 22W-06-12160 | SEAT | 10301- | |
| 14 | 01582-11411 | NUT | 10301- | |
| 15 | 01643-31445 | WASHER | 10301- | |
| 16 | 09415-01008 | CAP | 10301- | |
| 17 | 23S-05-28220 | PLATE, NAME | 10301- | |
| 18 | 15A-06-11121 | WIRING HARNESS | 10312- | |
| 18 | 15A-06-11120 | WIRING HARNESS | 10301-10311 | |
| 19 | 08036-01814 | CLIP | 10301- | |
| 19A | 08036-01414 | CLIP | 10303- | |
| 19A | 08036-01814 | CLIP | 10301-10302 | |
| 20 | 01010-51220 | BOLT | 10301- | |
| 21 | 01643-31232 | WASHER | 10301- | |
| 22 | 154-06-41350 | BRACKET | 10301- | |
| 23 | 01010-51235 | BOLT | 10301- | |
| 24 | 01643-31232 | WASHER | 10301- | |
| 25 | 154-06-41340 | BRACKET | 10301- | |
| 26 | 195-06-41740 | PLUG | 10301- | |
| 27 | 08037-02512 | GROMMET | 10301- | |
| G-1 | (\8\154-06-X1140) | BACK-UP LAMP GROUP | 10301- | |
| ==================== | ||||
| 28 | 08164-00000 | BUZZER | 10301- | |
| 29 | 6132-11-6460 | BOLT | 10301- | |
| 30 | 01643-30823 | WASHER | 10301- | |
| 31 | 01010-51020 | BOLT,(FOR GROUND CONNECTION) | 10301- | |
| 32 | 01643-31032 | WASHER,(FOR GROUND CONNECTION) | 10301- | |
| ==================== | ||||
| 33 | 195-06-41830 | CLIP | 10301- | |
| 34 | 195-06-41840 | CLIP | 10301- | |
| 35 | 01010-51220 | BOLT | 10301- | |
| 36 | 01643-31232 | WASHER | 10301- | |
| 37 | 154-06-41220 | WIRING HARNESS | 10301- | |
| 38 | 175-06-38561 | BRACKET | 10301- | |
| 39 | 01010-51035 | BOLT | 10301- | |
| 40 | 01643-31032 | WASHER | 10301- | |
| 41 | 08074-70000 | SWITCH,BACK-UP ALARM | 10301- | |
| 42 | 01583-11811 | NUT | 10301- | |
| 43 | 175-06-38810 | BRACKET | 10301- | |
| 44 | 01010-50820 | BOLT | 10301- | |
| 45 | 01602-20825 | WASHER,SPRING | 10301- | |
| 46 | 195-06-26260 | SWITCH,TRANSMISSION | 10301- | |
| 47 | 01643-31445 | WASHER | 10301- | |
| 48 | 175-895-4251 | TAPE | 10301- | |
| 49 | 08036-00814 | CLIP | 10301- | |
| 50 | 08036-01014 | CLIP | 10301- | |
| 51 | 08036-01814 | CLIP | 10301- | |
| 52 | 01010-51220 | BOLT | 10301- | |
| 53 | 01643-31232 | WASHER | 10301- | |
| 54 | 195-06-41820 | CLIP | 10301- | |
| 55 | 15A-06-11150 | WIRING HARNESS | 10301- | |
| 56 | 21T-06-25670 | SENSOR,FUEL | 10301- | |
| 57 | 07000-02085 | O-RING | 10301- | |
| 58 | 01010-51025 | BOLT | 10301- | |
| 59 | 01602-21030 | WASHER,SPRING | 10301- | |
| 60 | 195-06-41820 | CLIP | 10301- | |
| 61 | 01010-51220 | BOLT | 10301- | |
| 62 | 01643-31232 | WASHER | 10301- | |
| 63 | 08036-00814 | CLIP | 10301- | |
| 64 | 01010-51220 | BOLT | 10301- | |
| 65 | 01643-31232 | WASHER | 10301- |
