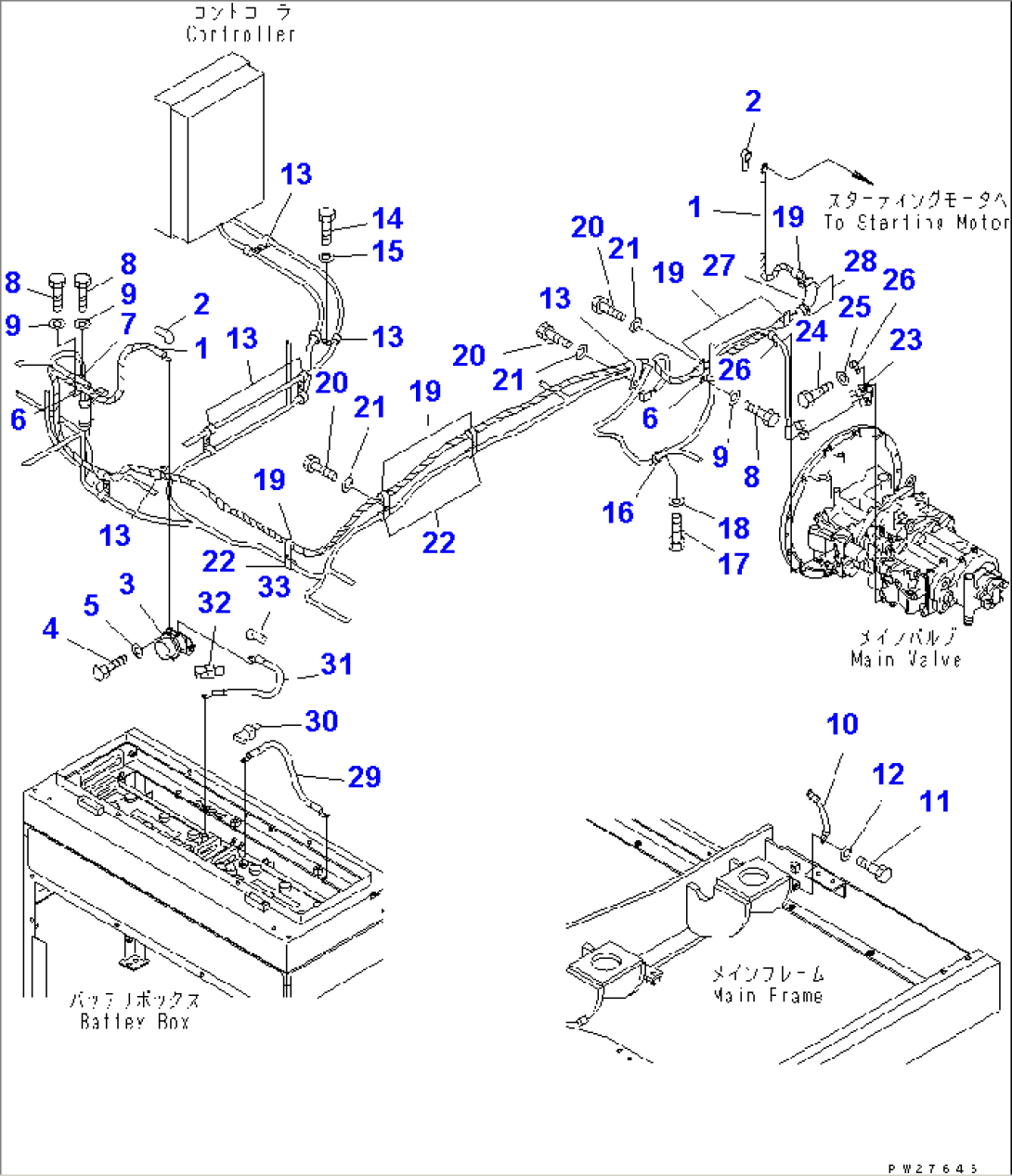

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8287-06-1162 | CABLE | 1182- | |
| 8287-06-1161 | CABLE | 1101-1181 | ||
| 08030-00010 | TERMINAL | 1101- | ||
| 08033-22540 | TUBE | 1101- | ||
| 2 | 08038-06031 | CAP | 1101- | |
| 3 | 08088-30000 | SWITCH | 1101- | |
| 4 | 01010-80825 | BOLT | 1101- | |
| 5 | 01643-30823 | WASHER | 1101- | |
| 6 | 04434-51912 | CLIP | 1101- | |
| 7 | 04434-51712 | CLIP | 1101- | |
| 8 | 01010-81220 | BOLT | 1101- | |
| 9 | 01643-31232 | WASHER | 1101- | |
| 10 | 08028-64060 | CABLE | 1101- | |
| 11 | 01010-81020 | BOLT | 1101- | |
| 12 | 01643-31032 | WASHER | 1101- | |
| 13 | 113-899-7950 | CLIP | 1101- | |
| 14 | 01010-81220 | BOLT | 1101- | |
| 15 | 01643-31232 | WASHER | 1101- | |
| 16 | 08036-02514 | CLIP | 1101- | |
| 17 | 01010-81220 | BOLT | 1101- | |
| 18 | 01643-31232 | WASHER | 1101- | |
| 19 | 08036-01014 | CLIP | 1101- | |
| 20 | 01010-81220 | BOLT | 1101- | |
| 21 | 01643-31232 | WASHER | 1101- | |
| 22 | 08036-01014 | CLIP | 1101- | |
| 23 | 20Y-06-21521 | BRACKET | 1101- | |
| 24 | 01010-81020 | BOLT | 1101- | |
| 25 | 01643-31032 | WASHER | 1101- | |
| 26 | 08036-00814 | CLIP | 1101- | |
| 27 | 565-04-11420 | TUBE | 1101- | |
| 28 | 08034-00519 | BAND | 1101- | |
| 29 | 08028-44175 | CABLE | 1265- | |
| 08028-44040 | CABLE | 1182-1264 | ||
| 30 | 08038-22511 | CAP | 1182- | |
| 31 | 08028-64060 | CABLE | 1182- | |
| 32 | 08038-42511 | CAP | 1182- | |
| 33 | 08038-06031 | CAP | 1182- |
