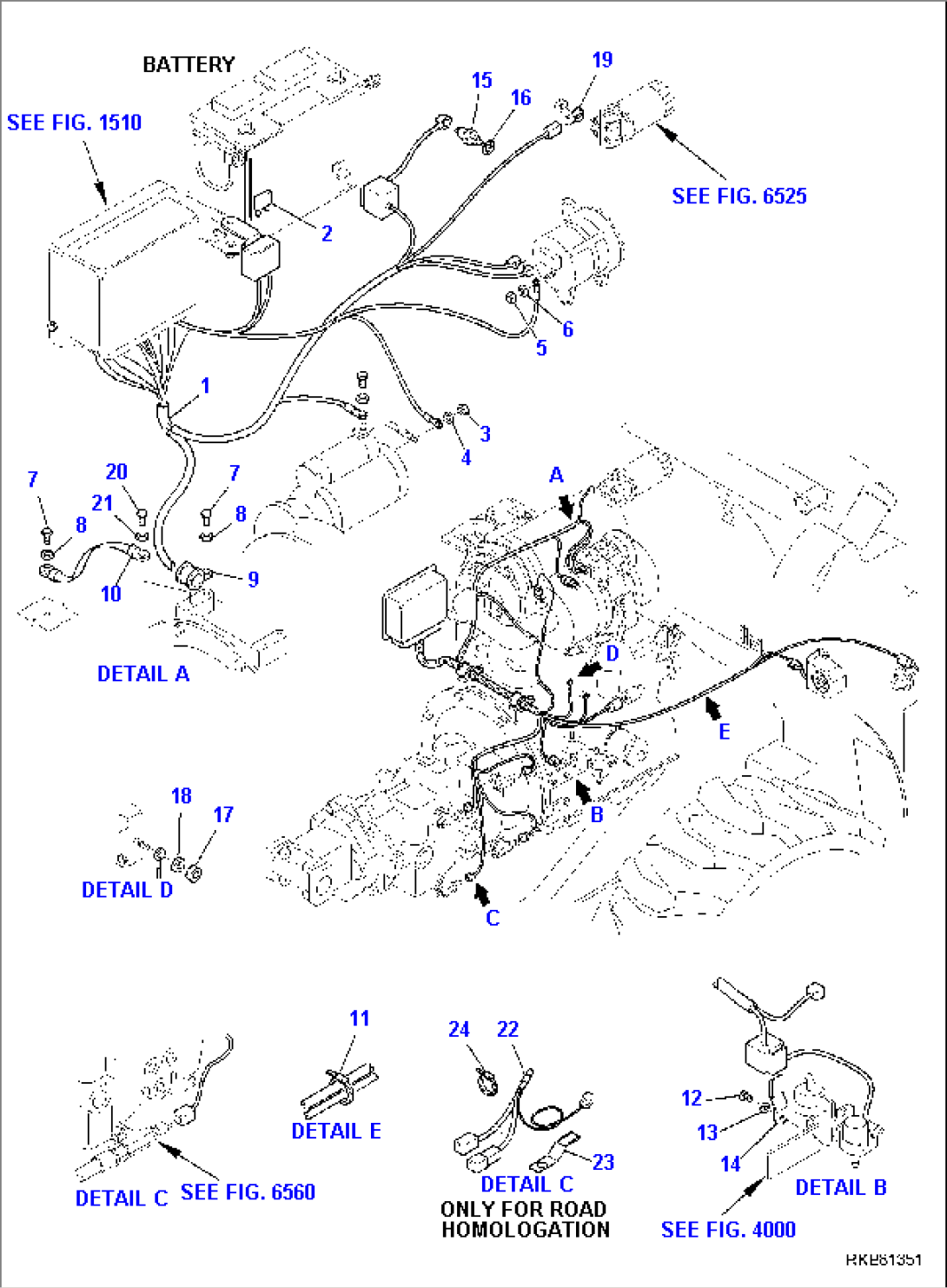

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (37C-06-11312) | WIRING HARNESS, ENGINE LINE | 37CTF00003- | |
| 2 | 22E-06-11620 | FUSE | 37CTF00003- | |
| 3 | 01580-10806 | NUT | 37CTF00003- | |
| 4 | 01602-20825 | WASHER, SPRING | 37CTF00003- | |
| 5 | 21D-09-21420 | NUT | 37CTF00003- | |
| 6 | 01601-20513 | WASHER, SPRING | 37CTF00003- | |
| 7 | 01010-81020 | BOLT | 37CTF00003- | |
| 8 | 01643-11032 | WASHER | 37CTF00003- | |
| 9 | 04434-52310 | CLAMP | 37CTF00003- | |
| 10 | 37C-06-11260 | GROUND CABLE | 37CTF00003- | |
| 11 | 08034-20519 | CLAMP | 37CTF00003- | |
| 12 | 01010-80816 | BOLT | 37CTF00003- | |
| 13 | 01643-10823 | WASHER | 37CTF00003- | |
| 14 | 22E-06-12430 | BRACKET | 37CTF00003- | |
| 15 | 7861-92-3320 | TEMPERATURE SENSOR | 37CTF00003- | |
| 16 | 37A-01-11430 | WASHER | 37CTF00003- | |
| 17 | 01580-10605 | NUT | 37CTF00003- | |
| 18 | 01602-20619 | WASHER, SPRING | 37CTF00003- | |
| 19 | 37A-06-12470 | TERMINAL | 37CTF00003- | |
| 20 | 01010-80816 | BOLT | 37CTF00003- | |
| 21 | 01643-10823 | WASHER | 37CTF00003- | |
| 22 | 37A-06-12920 | WIRING HARNESS, CAPACITOR LINE | 37CTF00003- | |
| 23 | 22L-09-R2U10 | BRACKET | 37CTF00003- | |
| 24 | 08034-20519 | CLAMP | 37CTF00003- | |
| SEE FIG. 1510 | ||||
| SEE FIG. 4000 | ||||
| SEE FIG. 6525 | ||||
| SEE FIG. 6560 |
