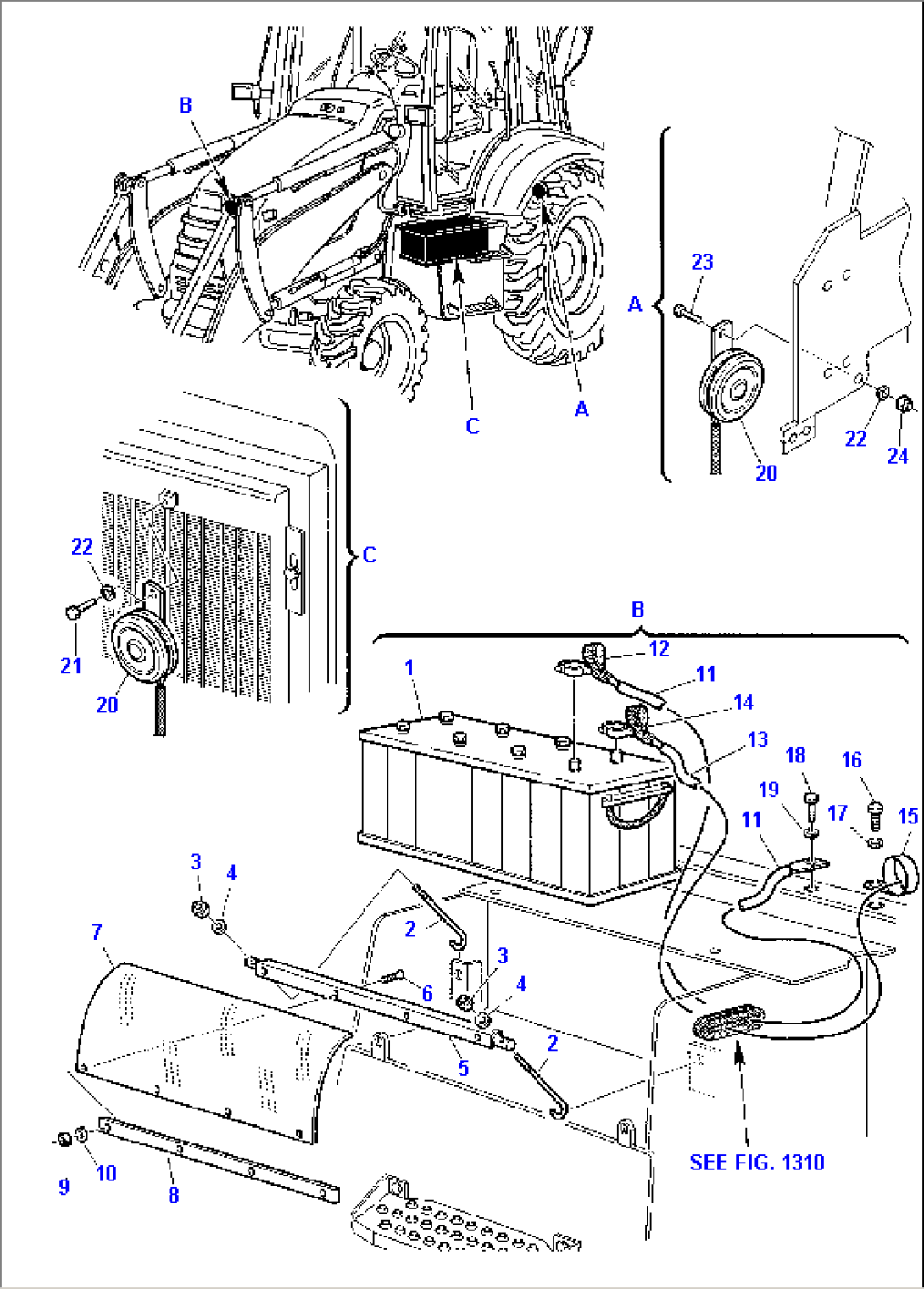

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 885010005 | BATTERY | 93F23075- | |
| 2 | 312613682 | TIE ROD | 93F23075- | |
| 3 | 801920104 | NUT | 93F23075- | |
| 4 | 802170001 | WASHER | 93F23075- | |
| 5 | 312613079 | BATTERY RETAINER | 93F23075- | |
| 6 | 801250144 | BOLT | 93F23075- | |
| 7 | 312613696 | PROTECTION | 93F23075- | |
| 8 | 312613683 | PLATE | 93F23075- | |
| 9 | 801703205 | NUT | 93F23075- | |
| 10 | 802070005 | WASHER | 93F23075- | |
| 11 | 312612090 | TERMINAL (-), ASSY | 93F23075- | |
| 12 | 885241019 | COVER | 93F23075- | |
| 13 | 312612101 | TERMINAL(+), ASSY | 93F23075- | |
| 14 | 885240018 | COVER | 93F23075- | |
| 15 | 802660501 | COLLAR | 93F23075- | |
| 16 | 801015109 | BOLT | 93F23075- | |
| 17 | 802170002 | WASHER | 93F23075- | |
| 18 | 801015108 | BOLT | 93F23075- | |
| 19 | 802170002 | WASHER | 93F23075- | |
| 20 | 885100001 | HORN | 93F23075- | |
| 21 | 801015084 | BOLT | 93F23075- | |
| 22 | 802170001 | WASHER | 93F23075- | |
| 23 | 801015087 | BOLT | 93F23075- | |
| 24 | 801880208 | SELF-LOCKING NUT | 93F23075- | |
| SEE FIG. 1310 |
