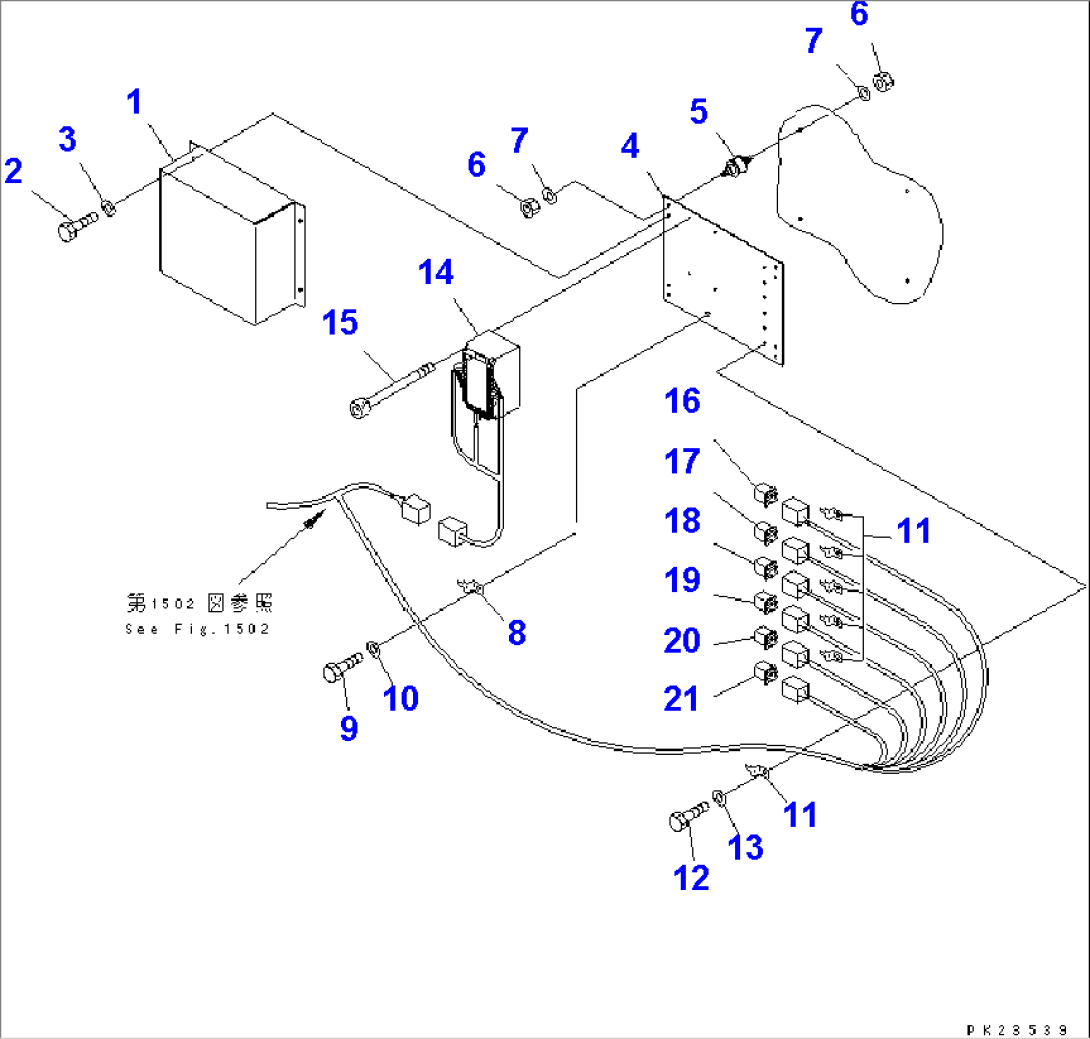

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8233-06-1073 | COVER | 1002- | |
| 2 | 01010-50616 | BOLT | 1002- | |
| 3 | 01643-30623 | WASHER | 1002- | |
| 4 | 8233-06-1063 | PLATE | 1002- | |
| 5 | 8233-06-1080 | CUSHION | 1002- | |
| 6 | 01580-00605 | NUT | 1002- | |
| 7 | 01643-30623 | WASHER | 1002- | |
| 8 | 08053-00912 | CLIP | 1002- | |
| 9 | 01010-51020 | BOLT | 1002- | |
| 10 | 01643-31032 | WASHER | 1002- | |
| 11 | 287-06-16420 | BRACKET | 1002- | |
| 12 | 01010-50616 | BOLT | 1002- | |
| 13 | 01643-30623 | WASHER | 1002- | |
| 14 | 8233-06-1030 | CONTROL | 1002- | |
| 15 | 01252-30416 | BOLT | 1002- | |
| 16 | 569-06-61960 | RELAY | 1002- | |
| 17 | 569-06-61970 | RELAY | 1002- | |
| 18 | 569-06-61970 | RELAY | 1002- | |
| 19 | 569-06-61970 | RELAY | 1002- | |
| 20 | 569-06-61960 | RELAY | 1002- | |
| 21 | 569-06-61960 | RELAY | 1002- |
