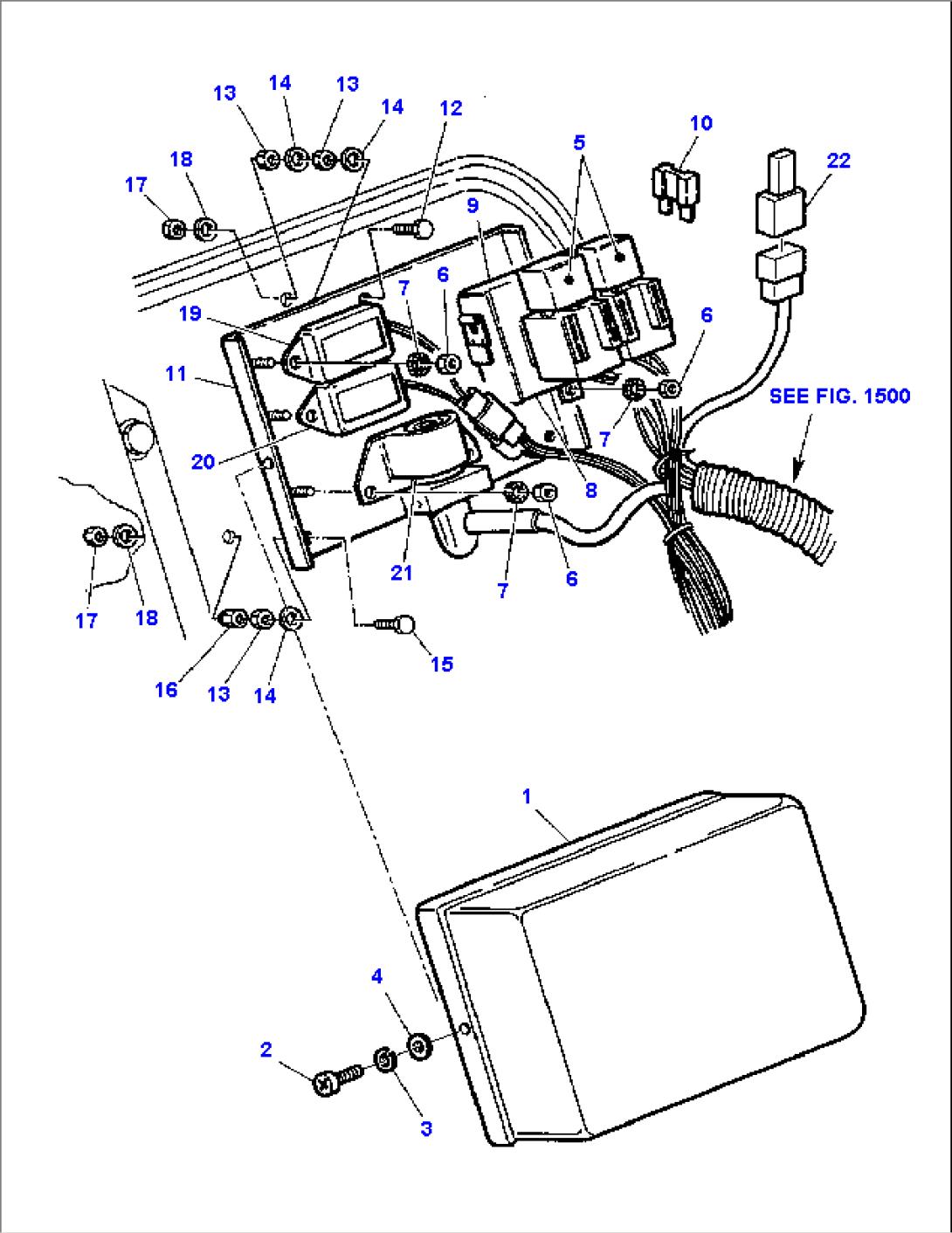

| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | (312612115) | MOTOR WIRING | 140F50092- | |
| 1 | 885411424 | COVER | 140F50092- | |
| 2 | 801250043 | BOLT | 140F50092- | |
| 3 | 802120005 | WASHER | 140F50092- | |
| 4 | 802070005 | SPRING WASHER | 140F50092- | |
| 5 | 885071022 | RELAY | 140F50092- | |
| 6 | 801703005 | NUT | 140F50092- | |
| 7 | 802120005 | SPRING WASHER | 140F50092- | |
| 8 | 885411248 | FUSE SUPPORT | 140F50092- | |
| 9 | 885411249 | COVER | 140F50092- | |
| 10 | 885091024 | FUSE 30 A | 140F50092- | |
| 10 | 885091018 | FUSE 60 A | 140F50092- | |
| 10 | 885091021 | FUSE 80 A | 140F50092- | |
| 11 | 885071039 | PLATE | 140F50092- | |
| 12 | 801014044 | BOLT | 140F50092- | |
| 13 | 801703006 | NUT | 140F50092- | |
| 14 | 802120006 | SPRING WASHER | 140F50092- | |
| 15 | 801014047 | BOLT | 140F50092- | |
| 16 | 801852206 | SELF-LOCKING NUT | 140F50092- | |
| 17 | 801703006 | NUT | 140F50092- | |
| 18 | 802150506 | WASHER | 140F50092- | |
| 19 | (YM119632-77920) | RELAY, STOP MOTOR TIMER | 140F50092- | |
| 20 | (YM128300-77920) | RELAY, PRE-HEATING TIMER | 140F50092- | |
| 21 | (YM129100-77910) | RELAY, PRE-HEATING | 140F50092- | |
| 22 | 885270706 | DIODE VALVE | 140F50092- | |
| SEE FIG. 1500 |
