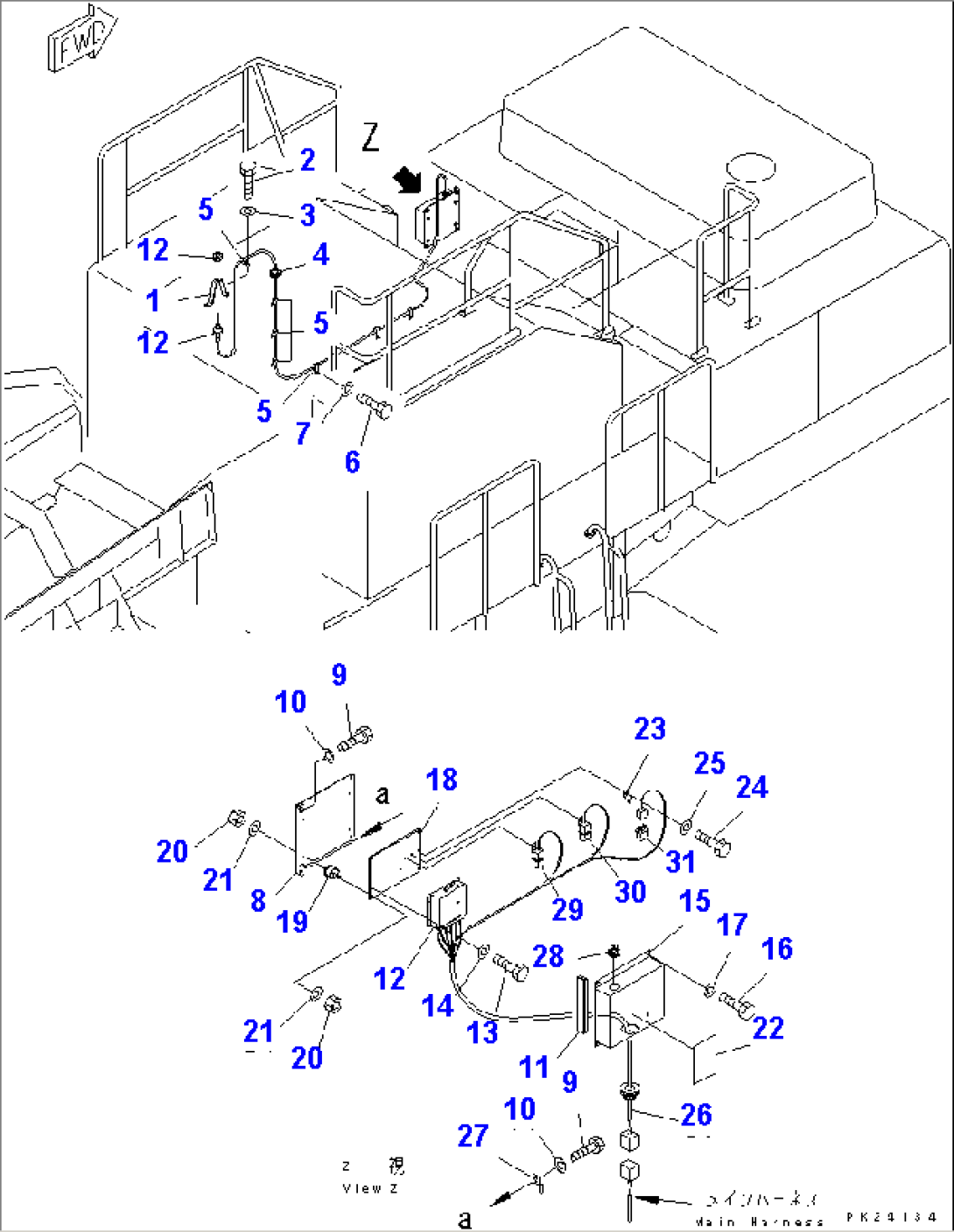

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8221-06-1580 | BRACKET | 1002-@ | |
| 2 | 01010-81020 | BOLT | 1002-@ | |
| 3 | 01643-31032 | WASHER | 1002-@ | |
| 4 | 08037-02512 | GROMMET | 1002-1100 | |
| 5 | 08036-00614 | CLIP | 1002-@ | |
| 6 | 01010-81220 | BOLT | 1002-@ | |
| 7 | 01643-31232 | WASHER | 1002-@ | |
| 8 | 8221-06-1550 | BRACKET | 1002-1100 | |
| 9 | 01010-81020 | BOLT | 1002-@ | |
| 10 | 01643-31032 | WASHER | 1002-@ | |
| 11 | 566-54-12790 | CUSHION | 1002-@ | |
| 12 | 8206-99-9039 | BOX ASS'Y | 1002-1100 | |
| 13 | 01010-50612 | BOLT | 1002-1100 | |
| 14 | 01643-30623 | WASHER | 1002-1100 | |
| 15 | 8221-06-1570 | COVER | 1002-1100 | |
| 16 | 01010-81020 | BOLT | 1002-@ | |
| 17 | 01643-31032 | WASHER | 1002-@ | |
| 18 | 8221-06-1561 | PLATE | 1002-1100 | |
| 19 | 8229-06-1080 | CUSHION | 1002-@ | |
| 20 | 01580-00605 | NUT | 1002-@ | |
| 21 | 01643-30623 | WASHER | 1002-@ | |
| 22 | 8221-93-1280 | PLATE | 1002-@ | |
| 23 | 287-06-16420 | BRACKET | 1002-@ | |
| 24 | 01010-80612 | BOLT | 1002-@ | |
| 25 | 01643-30623 | WASHER | 1002-@ | |
| 26 | 8221-06-1540 | WIRING HARNESS | 1002-1100 | |
| 27 | 08053-00912 | CLIP | 1002-@ | |
| 28 | 08037-11825 | GROMMET | 1002-1100 | |
| 29 | 569-06-61960 | RELAY | 1002-@ | |
| 30 | 569-06-61960 | RELAY | 1002-@ | |
| 31 | 569-06-61960 | RELAY | 1002-@ |
