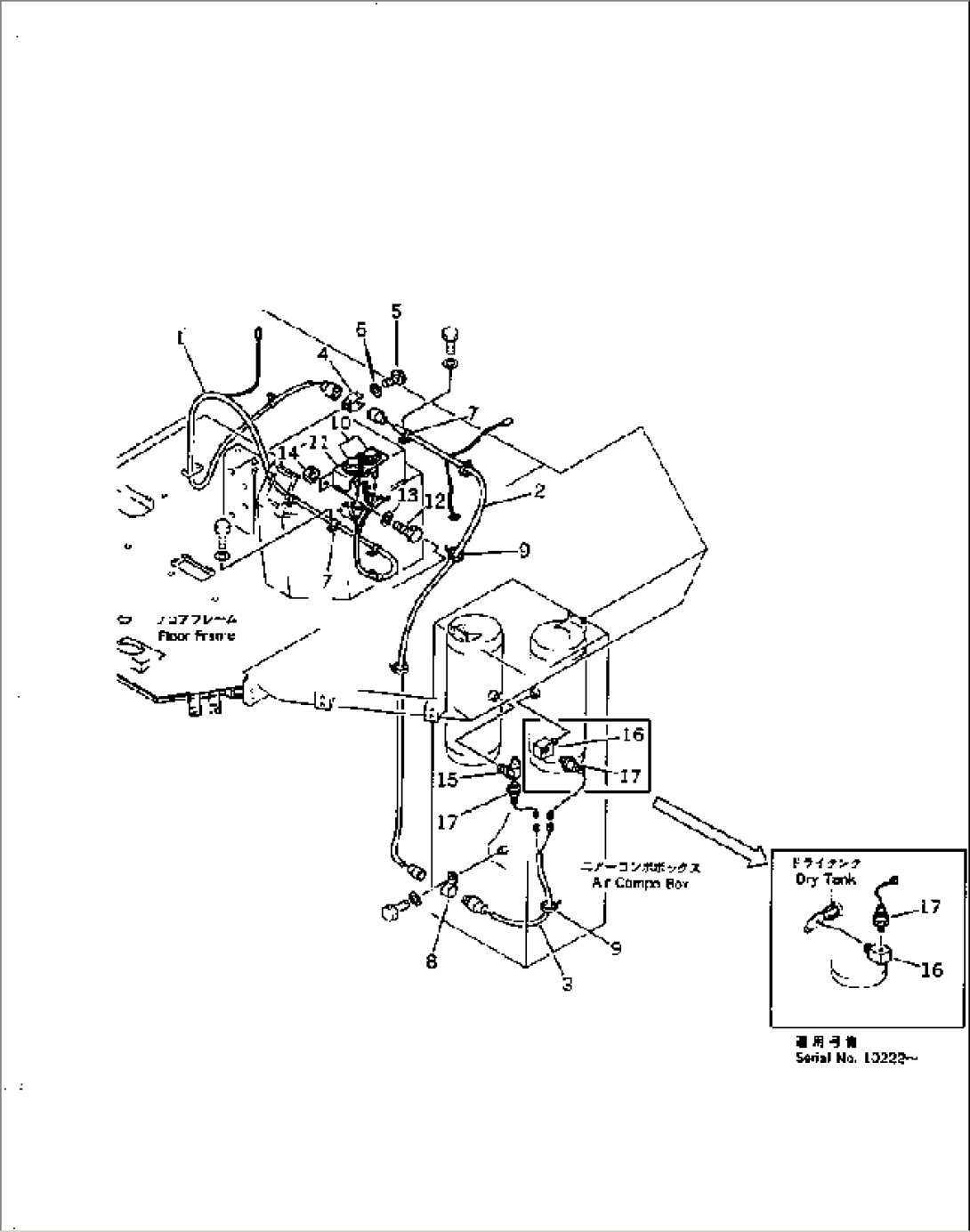

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-06-12810 | WIRE ASS'Y | 10001-11392 | |
| 2 | 426-06-12920 | WIRE ASS'Y | 10001-@ | |
| 3 | 426-06-12930 | WIRE ASS'Y | 10001-@ | |
| 4 | 283-06-17120 | CLIP | 10001-11392 | |
| 5 | 01220-40608 | SCREW | 10001-@ | |
| 6 | 01641-20608 | WASHER | 10001-@ | |
| 7 | 424-06-12710 | CLIP | 10001-11392 | |
| 8 | 423-06-12640 | CLIP | 10001-@ | |
| 9 | 08034-00519 | BAND | 10001-@ | |
| 10 | 423-06-11510 | GAUGE | 10001-@ | |
| 11 | 423-06-11520 | BRACKET | 10001-11392 | |
| 12 | 01010-50616 | BOLT | 10001-11392 | |
| 13 | 01643-30623 | WASHER | 10001-11392 | |
| 14 | 01580-10605 | NUT | 10001-11392 | |
| 15 | (426-35-15621) | ELBOW | 10240-@ | |
| 15 | (426-35-15620) | ELBOW | 10001-10239 | |
| 16 | 205-62-53391 | ELBOW | 10222-@ | |
| 16 | (426-35-15610) | ELBOW | 10001-10221 | |
| 17 | 232-06-52461 | SENSOR | 10001-@ |
