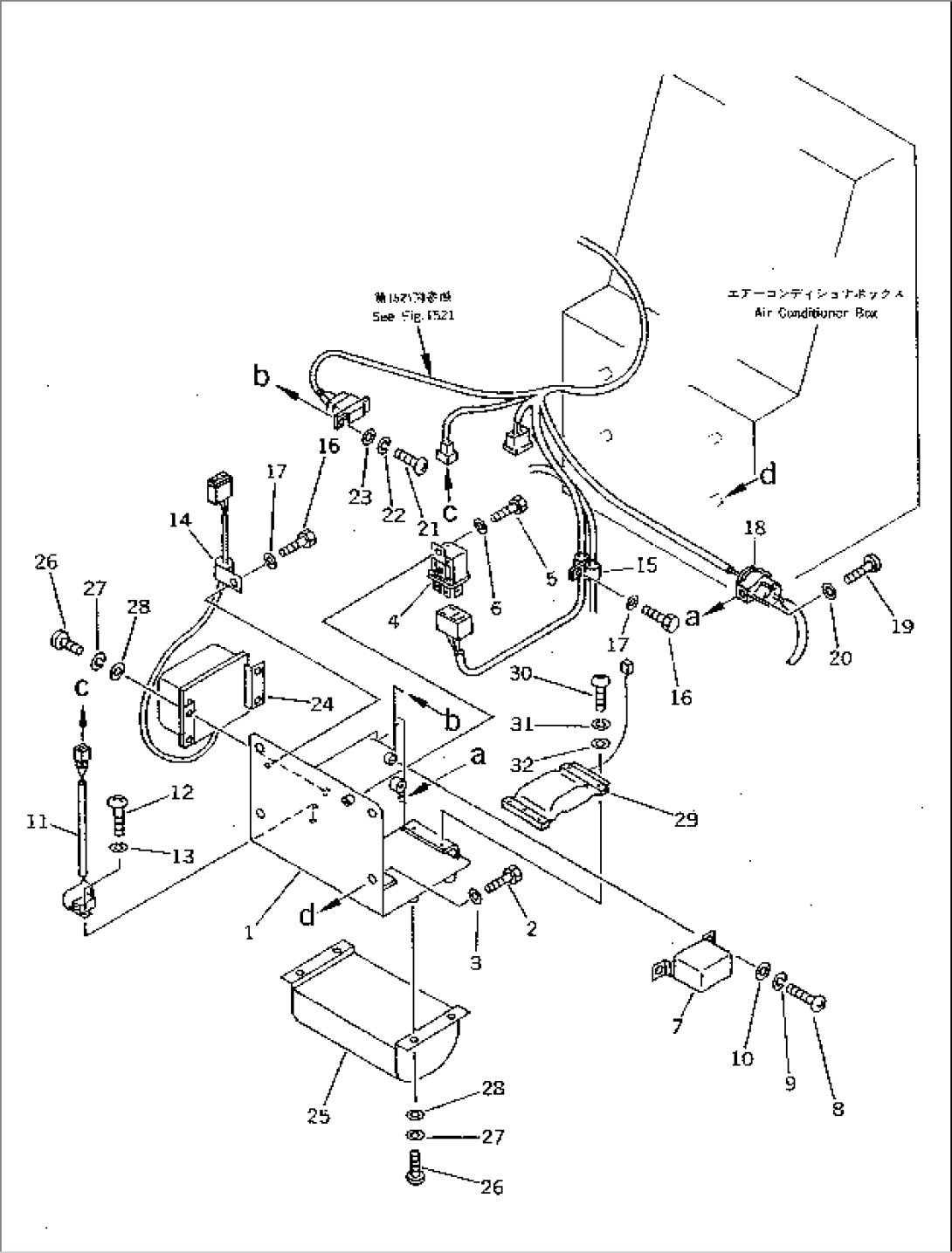

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-06-11520 | BRACKET | 10001-10499 | |
| 2 | 01010-51016 | BOLT | 10001-10499 | |
| 3 | 01643-31032 | WASHER | 10001-10499 | |
| 4 | 287-06-16410 | RELAY | 10001-10499 | |
| 5 | 01010-50612 | BOLT | 10001-10499 | |
| 6 | 01643-30623 | WASHER | 10001-10499 | |
| 7 | 195-06-22360 | SWITCH | 10001-10499 | |
| 8 | 01220-40510 | SCREW | 10001-10499 | |
| 9 | 01601-00513 | WASHER,SPRING | 10001-10499 | |
| 10 | 01641-20508 | WASHER | 10001-10499 | |
| 11 | 426-06-11440 | RESISTOR | 10001-10499 | |
| 12 | 01220-40308 | SCREW | 10001-10499 | |
| 13 | 01601-00307 | WASHER,SPRING | 10001-10499 | |
| 14 | 424-06-12720 | CLIP | 10001-10499 | |
| 15 | 08036-10810 | CLIP | 10001-10499 | |
| 16 | 01010-50812 | BOLT | 10001-10499 | |
| 17 | 01643-30823 | WASHER | 10001-10499 | |
| 18 | 421-06-12610 | CLIP | 10001-10499 | |
| 19 | 01220-40608 | SCREW | 10001-10499 | |
| 20 | 01641-40608 | WASHER | 10001-10499 | |
| 21 | 01220-40308 | SCREW | 10001-10499 | |
| 22 | 01601-00307 | WASHER,SPRING | 10001-10499 | |
| 23 | 01641-20305 | WASHER | 10001-10499 | |
| 24 | 600-815-4220 | CONTROL ASS'Y,A.P.S. | 10001-10499 | |
| 25 | 600-815-3440 | RESISTOR | 10001-10499 | |
| 26 | 01220-40610 | SCREW | 10001-10499 | |
| 27 | 01602-00619 | WASHER,SPRING | 10001-10499 | |
| 28 | 01641-20608 | WASHER | 10001-10499 | |
| 29 | 600-815-3611 | TIMER | 10001-10499 | |
| 30 | 01220-40408 | SCREW | 10001-10499 | |
| 31 | 01601-00410 | WASHER,SPRING | 10001-10499 | |
| 32 | 01641-20405 | WASHER | 10001-10499 |
