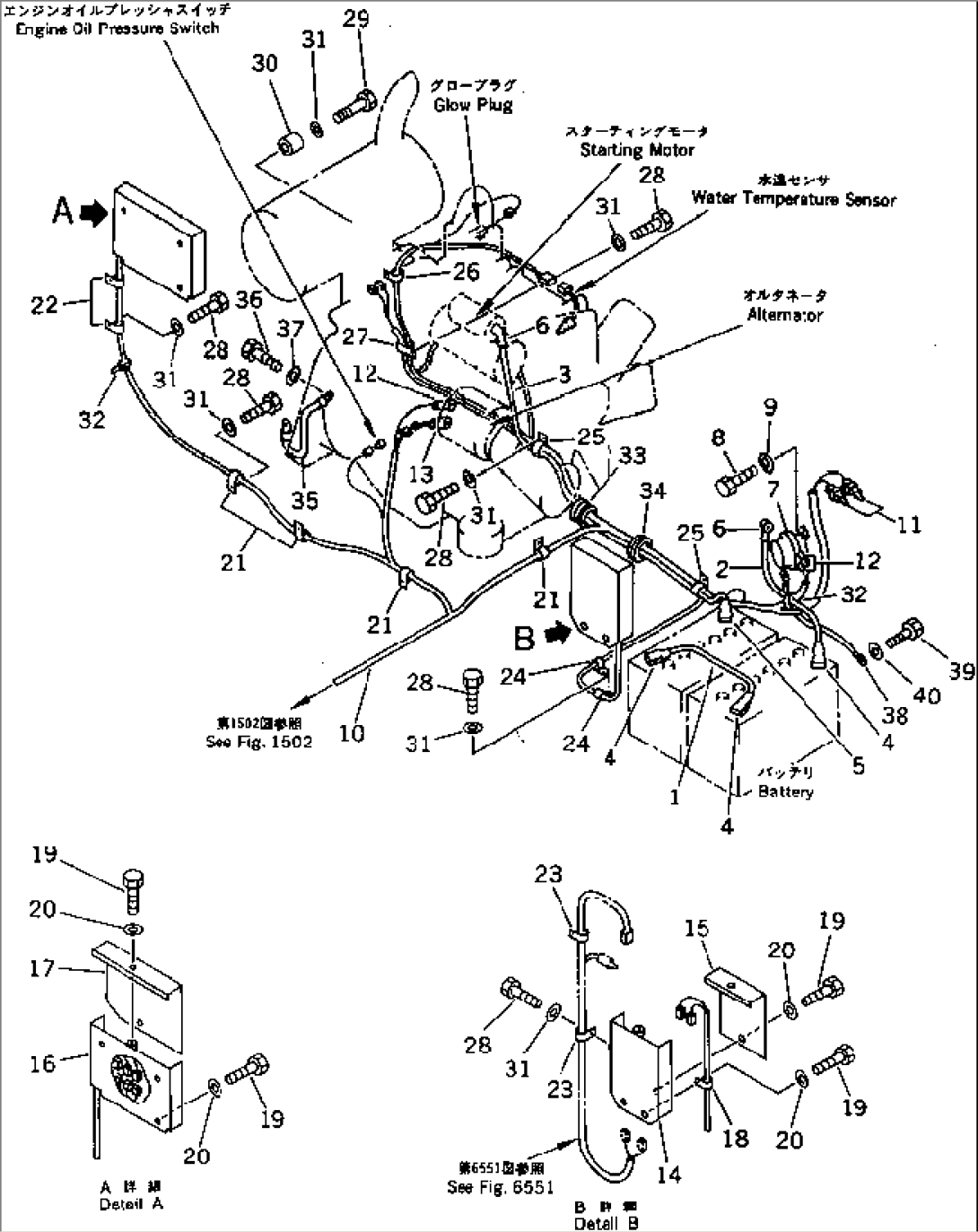

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20X-06-21160 | WIRE | 1001- | |
| 2 | 20B-06-34130 | WIRE | 1001- | |
| 3 | 201-06-61211 | WIRE | 1320- | |
| \0\201-06-61210 | WIRE | 1001-1319 | ||
| 4 | 08038-22009 | CAP | 1001- | |
| 5 | 08038-22511 | CAP | 1001- | |
| 6 | 08038-04030 | CAP | 1001- | |
| 7 | 08088-10000 | SWITCH,BATTERY RELAY | 1001- | |
| 8 | 01010-50816 | BOLT | 1001- | |
| 9 | 01602-20825 | WASHER,SPRING | 1001- | |
| 10 | 20X-06-32121 | WIRE ASS'Y | 1001- | |
| 22W-06-13590 | DIODE | 1001- | ||
| 11 | 203-06-57241 | FUSIBLE LINK | 1001- | |
| 12 | 08038-00519 | CAP | 1001- | |
| 13 | 08038-00525 | CAP | 1001- | |
| 14 | 201-06-62231 | COVER | 1001- | |
| 15 | 201-06-62240 | COVER | 1001- | |
| 16 | 201-06-62211 | COVER | 1001- | |
| 17 | 201-06-62220 | COVER | 1001- | |
| 18 | 08036-00814 | CLIP | 1001- | |
| 19 | 01010-51020 | BOLT | 1001- | |
| 20 | 01643-31032 | WASHER | 1001- | |
| 21 | 08036-01814 | CLIP | 1001- | |
| 22 | 08036-02514 | CLIP | 1001- | |
| 23 | 08036-01414 | CLIP | 1001- | |
| 24 | 08036-00814 | CLIP | 1001- | |
| 25 | 08036-03014 | CLIP | 1001- | |
| 26 | 08036-10614 | CLIP | 1001- | |
| 27 | 08036-10814 | CLIP | 1001- | |
| 28 | 01010-51016 | BOLT | 1001- | |
| 29 | 01010-51045 | BOLT | 1001- | |
| 30 | 195-33-11220 | SPACER | 1009- | |
| 144-874-7470 | BOSS | 1001-1008 | ||
| 31 | 01643-31032 | WASHER | 1001- | |
| 32 | 08034-00414 | BAND | 1001- | |
| 33 | 20X-06-31130 | GROMMET | 1001- | |
| 34 | 08037-05016 | GROMMET | 1001- | |
| 35 | 20X-06-21170 | WIRE | 1001- | |
| 36 | 01010-51016 | BOLT | 1001- | |
| 37 | 01643-31032 | WASHER | 1001- | |
| 38 | 20X-06-21160 | WIRE | 1404- | |
| 39 | 01010-51016 | BOLT | 1404- | |
| 40 | 01643-31032 | WASHER | 1404- |
