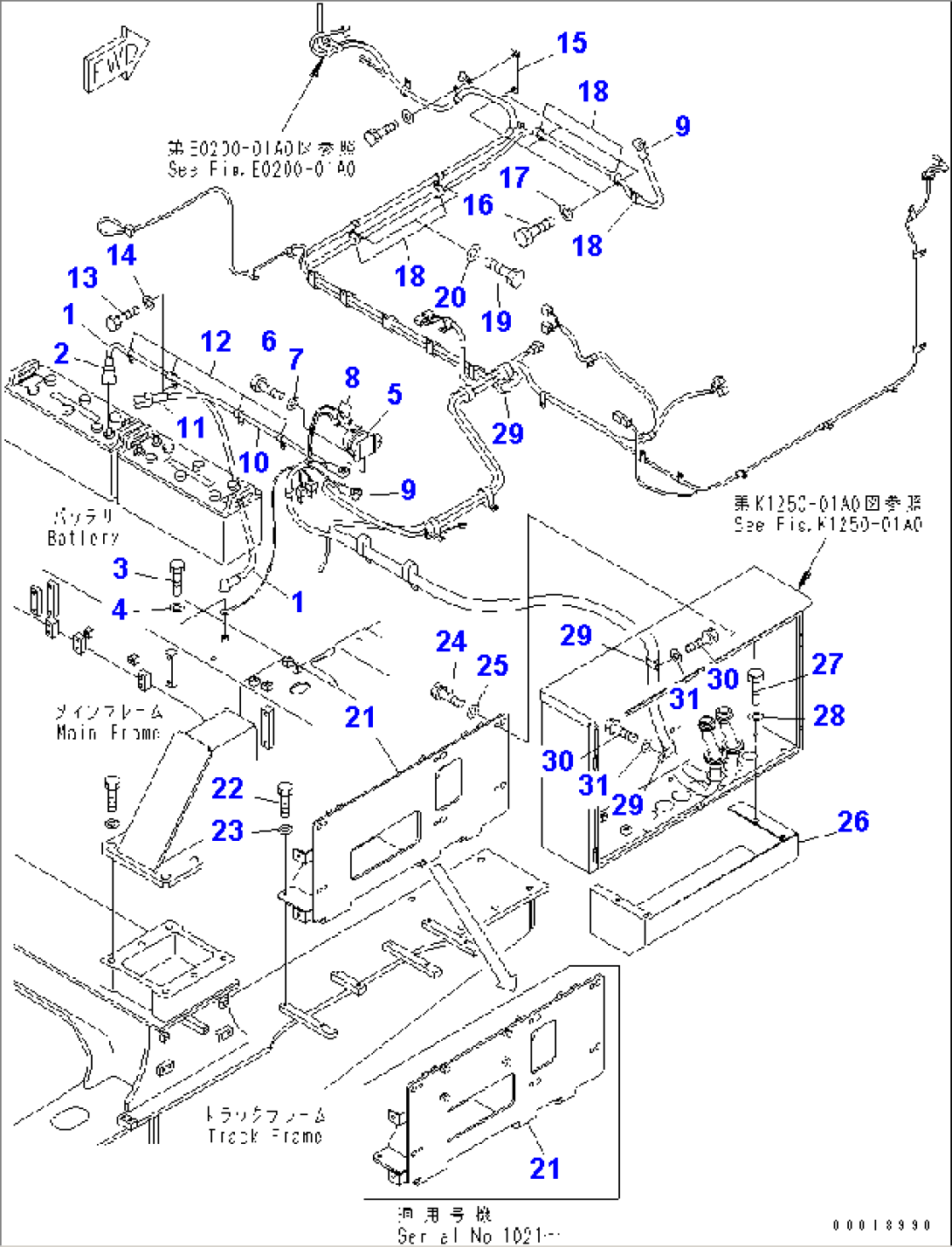

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08028-44125 | WIRE | 1001- | |
| 2 | 08038-22511 | CAP | 1001- | |
| 3 | 01010-81020 | BOLT | 1001- | |
| 4 | 01643-31032 | WASHER | 1001- | |
| 5 | 08088-30000 | SWITCH | 1001- | |
| 6 | 01010-80825 | BOLT | 1065- | |
| 6 | 01010-80830 | BOLT | 1001-1064 | |
| 7 | 01643-30823 | WASHER | 1001- | |
| 8 | 08038-00519 | CAP | 1001- | |
| 9 | 08038-00035 | CAP | 1001- | |
| 10 | 08028-64075 | WIRE, 750MM | 1065- | |
| 10 | 08028-64070 | CABLE | 1001-1064 | |
| 11 | 08038-42511 | CAP | 1001- | |
| 12 | 04434-51712 | CLIP | 1001- | |
| 13 | 01010-81225 | BOLT | 1001- | |
| 14 | 01643-31232 | WASHER | 1001- | |
| 15 | 207-977-5120 | BRACKET | 1001- | |
| 16 | 01010-81225 | BOLT | 1001- | |
| 17 | 01643-31232 | WASHER | 1001- | |
| 18 | 04434-52312 | CLIP | 1001- | |
| 19 | 01010-81225 | BOLT | 1001- | |
| 20 | 01643-31232 | WASHER | 1001- | |
| 21 | 8295-06-1173 | BRACKET | 1021- | |
| 21 | 8295-06-1172 | BRACKET | 1004-1020 | |
| 21 | 8295-06-1171 | BRACKET | 1001-1003 | |
| 22 | 01010-81230 | BOLT | 1001- | |
| 23 | 01643-31232 | WASHER | 1001- | |
| 24 | 01010-81225 | BOLT | 1001- | |
| 25 | 175-54-34170 | WASHER | 1001- | |
| 26 | 8295-06-1353 | COVER | 1008- | |
| 26 | 8295-06-1352 | COVER | 1001-1007 | |
| 27 | 01010-81225 | BOLT | 1001- | |
| 28 | 01643-31232 | WASHER | 1001- | |
| 29 | 04434-53412 | CLIP | 1001- | |
| 30 | 01010-81220 | BOLT | 1001- | |
| 31 | 01643-31232 | WASHER | 1001- |
