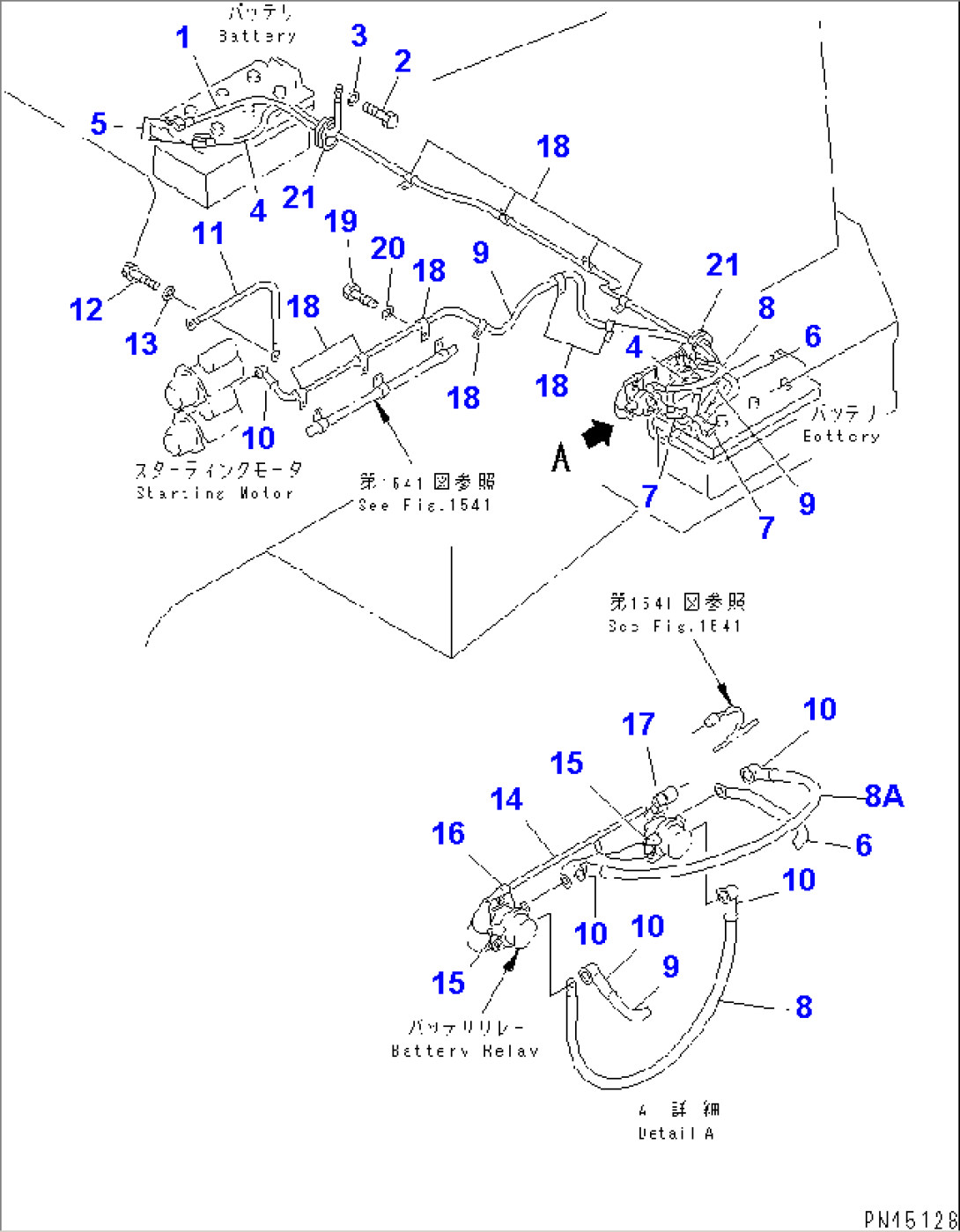

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-12620 | WIRE | 10076- | |
| 1 | \0\421-06-12710 | WIRE | 10001-10075 | |
| 2 | 01010-81020 | BOLT | 10001- | |
| 3 | 01643-31032 | WASHER | 10001- | |
| 4 | 428-06-12262 | WIRE | 10108- | |
| 4 | \0\428-06-12261 | WIRE | 10076-10107 | |
| 4 | \0\428-06-12260 | WIRE | 10001-10075 | |
| 5 | 424-09-12530 | BOOT | 10001- | |
| 6 | 428-06-12631 | WIRE | 10108- | |
| 6 | \0\428-06-12630 | WIRE | 10076-10107 | |
| 6 | \0\426-06-12250 | WIRE | 10001-10075 | |
| 7 | 424-09-12540 | BOOT | 10001- | |
| 8 | 428-06-12640 | WIRE | 10104- | |
| 8A | 426-06-11740 | WIRE | 10104- | |
| 8A | \0\428-06-12640 | WIRE | 10076-10103 | |
| 8A | \0\421-06-12730 | WIRE | 10001-10075 | |
| 9 | 428-06-12171 | WIRE | 10076-10103 | |
| 9 | \0\428-06-12170 | WIRE | 10001-10075 | |
| 10 | 08038-00035 | CAP | 10001- | |
| 11 | 426-06-12610 | WIRE | 10076- | |
| 11 | \0\426-06-12270 | WIRE | 10001-10075 | |
| 12 | 01010-81625 | BOLT | 10001- | |
| 13 | 01643-31645 | WASHER | 10001- | |
| 14 | 428-06-12650 | WIRE ASS'Y | 10076- | |
| 14 | \0\426-06-12712 | WIRE ASS'Y | 10001-10075 | |
| 15 | 08038-00218 | CAP | 10001- | |
| 16 | 424-06-12720 | CLIP | 10001- | |
| 17 | 08052-11711 | CLIP | 10001- | |
| 18 | 424-09-12550 | CLIP | 10001- | |
| 19 | 01010-81020 | BOLT | 10001- | |
| 20 | 01643-31032 | WASHER | 10001- | |
| 21 | 426-09-11230 | GROMMET | 10001- |
