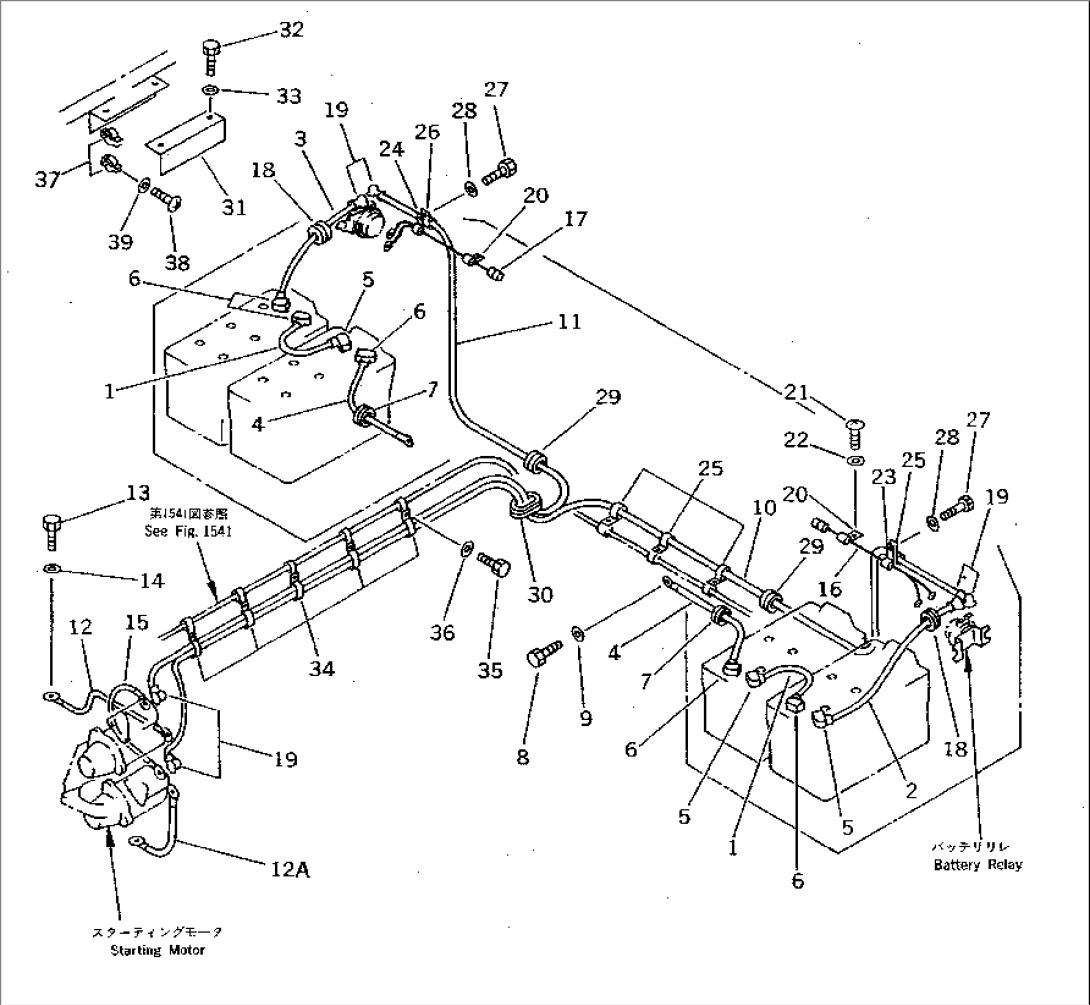

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-06-12350 | WIRE | 10001-@ | |
| 2 | 427-06-12380 | WIRE | 10001-@ | |
| 3 | 427-06-12390 | WIRE | 10001-@ | |
| 4 | 427-06-12340 | WIRE | 10001-10499 | |
| 5 | 424-09-12530 | BOOT | 10001-@ | |
| 6 | 424-09-12540 | BOOT | 10001-@ | |
| 7 | 421-06-12651 | GROMMET | 10001-@ | |
| 8 | 01010-51020 | BOLT | 10001-@ | |
| 9 | 01643-31032 | WASHER | 10001-@ | |
| 10 | 427-06-12370 | WIRE | 10001-10499 | |
| 11 | 427-06-12360 | CABLE | 10001-10051 | |
| 12 | 427-06-12330 | WIRE | 10001-@ | |
| 12A | 425-06-12560 | WIRE | 10052-10499 | |
| 12A | 427-06-12330 | WIRE | 10001-10051 | |
| 13 | 01010-51630 | BOLT | 10001-@ | |
| 14 | 01643-31645 | WASHER | 10001-@ | |
| 15 | 427-06-12470 | WIRE | 10001-10499 | |
| 16 | 427-06-12410 | WIRE ASS'Y,L.H. | 10001-@ | |
| 17 | 427-06-12420 | WIRE ASS'Y,R.H. | 10001-@ | |
| 18 | 08037-03614 | GROMMET | 10001-@ | |
| 19 | 08038-00035 | CAP | 10001-@ | |
| 20 | 421-06-12910 | CLIP | 10001-@ | |
| 21 | 01220-40608 | SCREW | 10001-@ | |
| 22 | 01641-20608 | WASHER | 10001-@ | |
| 23 | 425-70-13120 | CLIP | 10001-@ | |
| 24 | 424-06-12710 | CLIP | 10001-@ | |
| 25 | 424-09-12550 | CLIP | 10001-10499 | |
| 26 | 08035-03014 | CLIP | 10001-@ | |
| 27 | 01010-51020 | BOLT | 10001-@ | |
| 28 | 01643-31032 | WASHER | 10001-@ | |
| 29 | 08037-05016 | GROMMET | 10001-@ | |
| 30 | 426-09-11230 | GROMMET | 10001-@ | |
| 31 | 427-06-12480 | COVER | 10001-10499 | |
| 32 | 01010-51225 | BOLT | 10001-10499 | |
| 33 | 01643-31232 | WASHER | 10001-10499 | |
| 34 | 391-62-19240 | CLIP | 10001-10499 | |
| 35 | 01010-51020 | BOLT | 10001-10499 | |
| 36 | 01643-31032 | WASHER | 10001-10499 | |
| 37 | 283-06-17120 | CLIP | 10001-@ | |
| 38 | 01220-40608 | SCREW | 10001-@ | |
| 39 | 01641-20608 | WASHER | 10001-@ |
