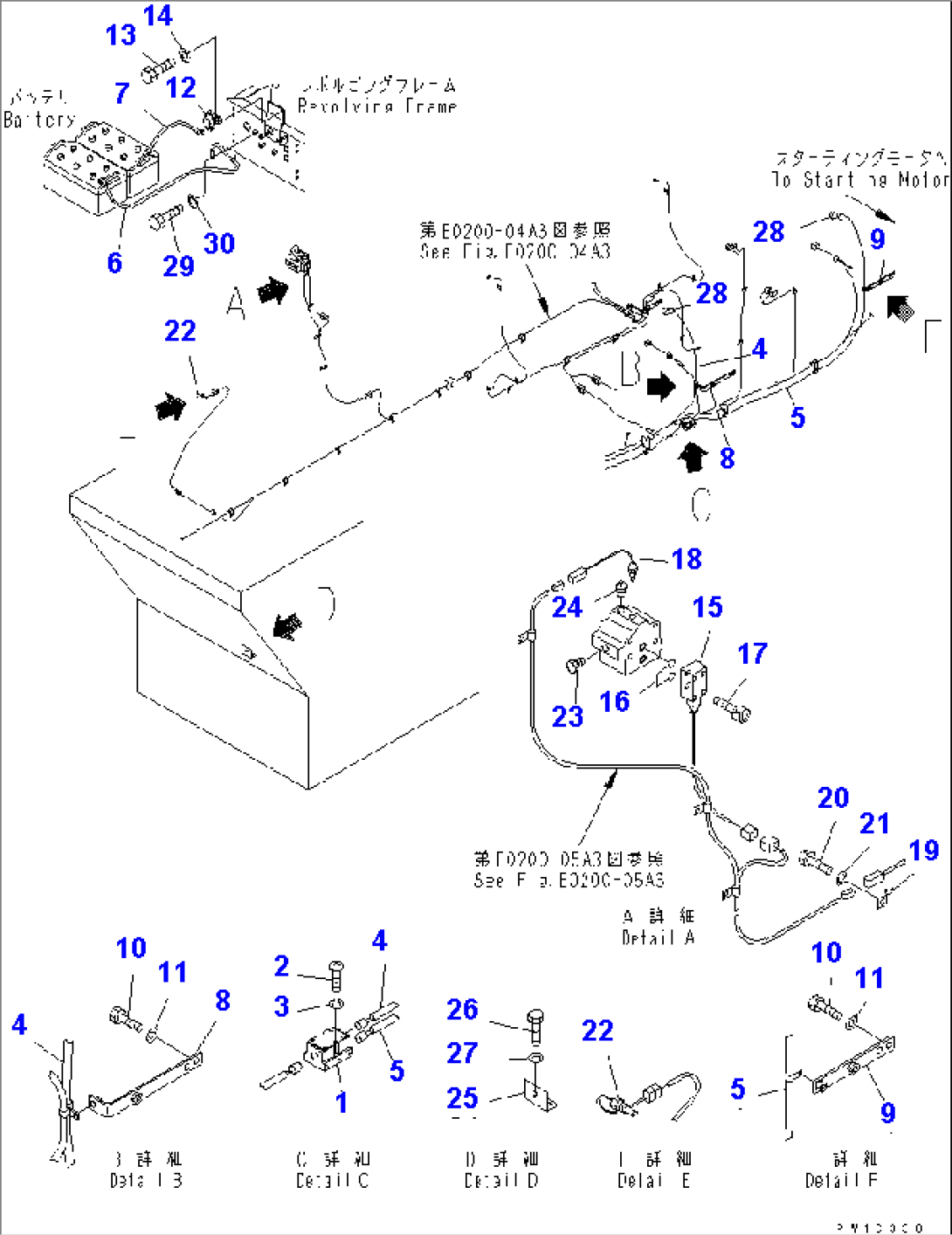

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21T-06-12540 | TERMINAL | 10001-@ | |
| 2 | 01220-40630 | SCREW | 10001-@ | |
| 3 | 01602-20619 | WASHER | 10001-@ | |
| 4 | 21T-06-67560 | CABLE | 10001-11001 | |
| 5 | 21T-06-67570 | CABLE | 10001-11001 | |
| 6 | 08028-55175 | CABLE, GROUND | 10011-11001 | |
| 7 | 08028-DE070 | CABLE, BATTERY | 10011-11001 | |
| 8 | 21T-06-71880 | BRACKET | 10011-@ | |
| 9 | 21T-06-64450 | BRACKET | 10011-@ | |
| 10 | 01010-81225 | BOLT | 10003-@ | |
| 11 | 01643-31232 | WASHER | 10003-@ | |
| 12 | 08088-40000 | RELAY | 10003-@ | |
| 13 | 01010-80820 | BOLT | 10001-@ | |
| 14 | 01643-30823 | WASHER | 10001-@@ | |
| 15 | 7861-92-1940 | SWITCH | 10001-@ | |
| 16 | 07000-12014 | O-RING | 10011-@ | |
| 17 | 01252-40640 | BOLT | 10001-@ | |
| 18 | 21T-06-64370 | SENSOR ASS'Y | 10011-@ | |
| 19 | 08193-20012 | CLIP | 10011-11001 | |
| 20 | 01010-81225 | BOLT | 10003-11001 | |
| 21 | 01643-31232 | WASHER | 10003-11001 | |
| 22 | 7861-93-3320 | SENSOR | 10001-@ | |
| 23 | 287-35-11470 | PLUG | 10001-@ | |
| 24 | 07042-30312 | PLUG | 10001-@ | |
| 25 | 21T-06-67360 | BRACKET | 10003-@ | |
| 26 | 01010-81220 | BOLT | 10003-@ | |
| 27 | 01643-31232 | WASHER | 10003-@ | |
| 28 | 08038-10519 | CAP | 10003-11001 | |
| 29 | 01010-81020 | BOLT | 10011-11001 | |
| 30 | 01643-31032 | WASHER | 10011-11001 |
