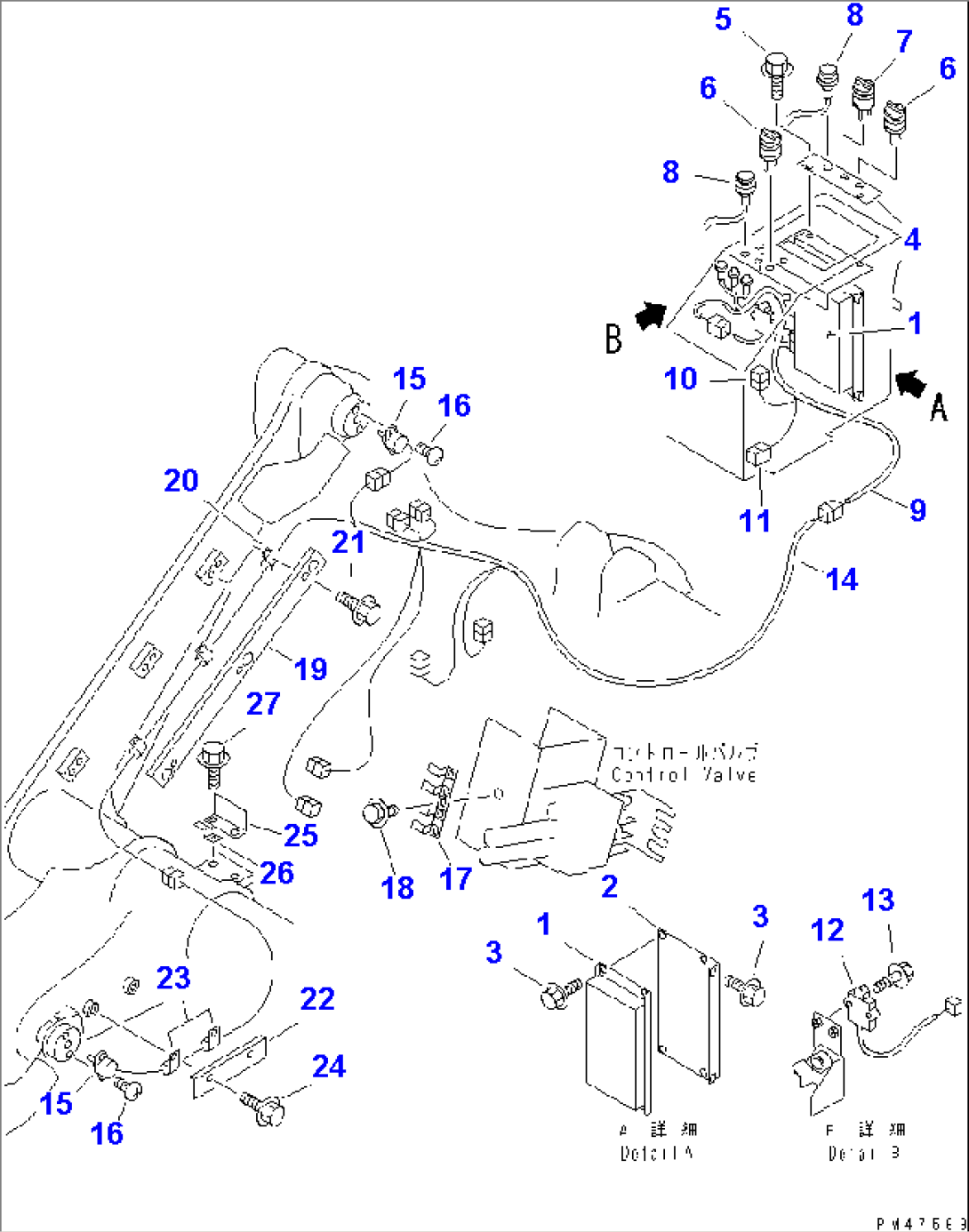

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7823-21-1000 | CONTROLLER ASS'Y | 50001- | |
| 2 | 417-S30-2560 | PLATE | 50001- | |
| 3 | 01435-00816 | BOLT | 50001- | |
| 4 | 417-S30-2570 | PLATE | 50001- | |
| 5 | 01435-00610 | BOLT | 50001- | |
| 6 | 7824-85-4820 | SWITCH | 50001- | |
| 7824-84-2890 | KNOB | 50001- | ||
| 7 | 7824-84-2810 | SWITCH | 50001- | |
| 7824-84-2890 | KNOB | 50001- | ||
| 8 | 08147-42401 | LAMP | 50001- | |
| 9 | 417-S30-2550 | WIRING HARNESS | 50001- | |
| 10 | 569-06-61960 | RELAY | 50001- | |
| 11 | 416-S30-2310 | WIRING HARNESS | 50001- | |
| 12 | 08076-50350 | SWITCH,LIMIT | 50001- | |
| 13 | 01435-01030 | BOLT | 50001- | |
| 14 | 417-S30-2540 | WIRING HARNESS | 50001- | |
| 15 | (22T-05-19120) | POTENTIOMETER,BOOM ANGLE | 50001- | |
| (421-S30-2260) | POTENTIOMETER,BUCKET ANGLE | 50001- | ||
| 16 | (01023-10412) | SCREW | 50001- | |
| 17 | 416-S30-2320 | BRACKET | 50001- | |
| 18 | 01435-01220 | BOLT | 50001- | |
| 19 | 416-S30-2430 | PLATE | 50001- | |
| 20 | 08036-01014 | CLIP | 50001- | |
| 21 | 01435-01016 | BOLT | 50001- | |
| 22 | 416-S30-2440 | PLATE | 50001- | |
| 23 | 08036-01014 | CLIP | 50001- | |
| 24 | 01435-01016 | BOLT | 50001- | |
| 25 | 418-S30-2470 | PLATE | 50001- | |
| 26 | 08053-01510 | CLIP | 50001- | |
| 27 | 01435-01020 | BOLT | 50001- |
