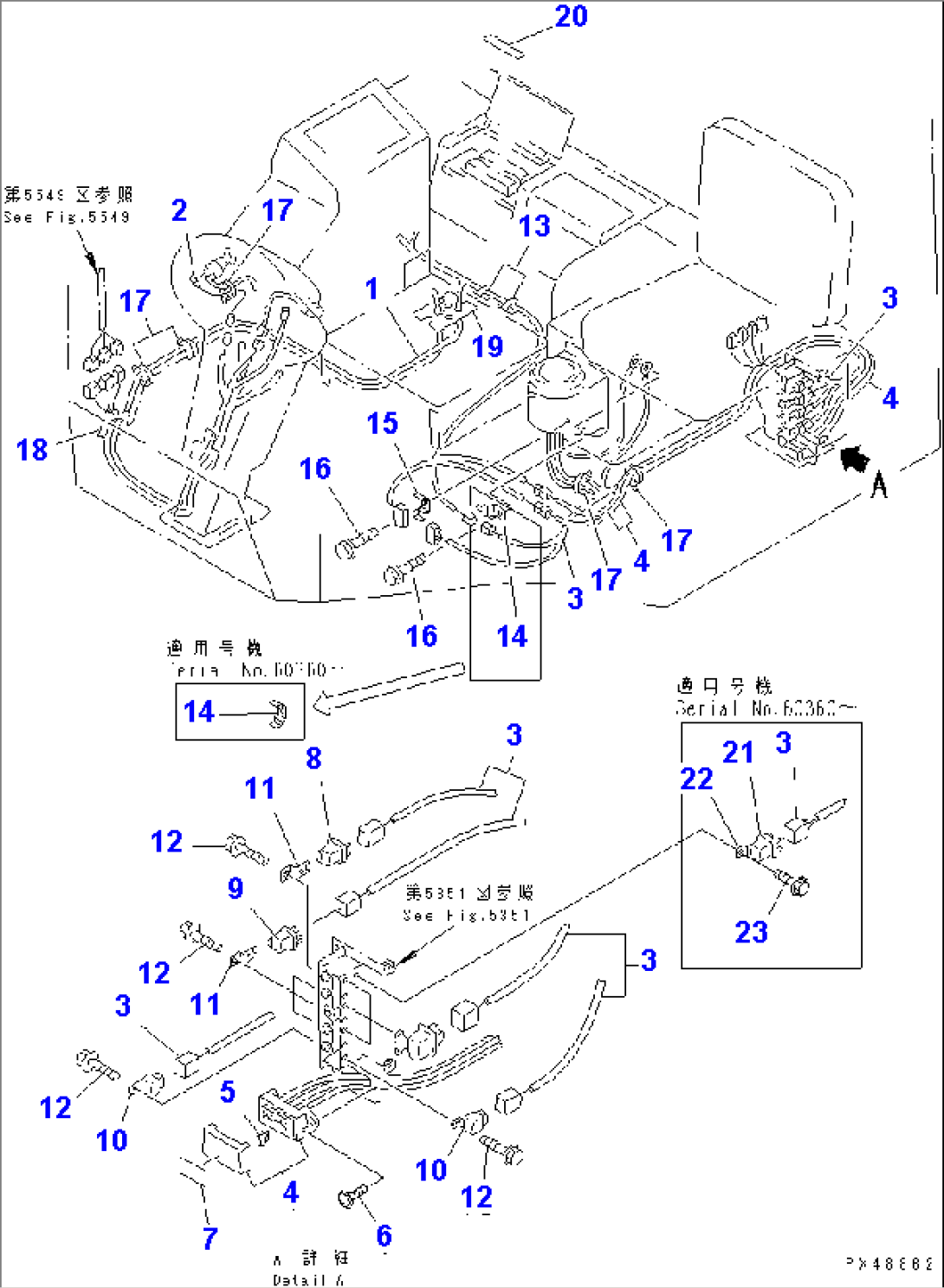

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-944-2513 | WIRING HARNESS | 60542- | |
| 418-944-2512 | WIRING HARNESS | .-60541 | ||
| 418-944-2511 | WIRING HARNESS | 60001-. | ||
| 2 | 418-944-2551 | WIRING HARNESS | .- | |
| \0\418-944-2550 | WIRING HARNESS | 60001-. | ||
| 3 | 416-944-2344 | WIRING HARNESS | 60542- | |
| \0\416-944-2343 | WIRING HARNESS | .-60541 | ||
| 416-944-2342 | WIRING HARNESS | 60360-. | ||
| 416-944-2341 | WIRING HARNESS | 60001-60359 | ||
| 08020-10000 | DIODE | .- | ||
| 08020-10000 | DIODE | 60001-. | ||
| 4 | 418-944-2541 | FUSE BOX ASS'Y | 60542- | |
| 418-944-2540 | FUSE BOX ASS'Y | 60001-60541 | ||
| 5 | 22W-06-13160 | FUSE¤ 20A | 60001- | |
| 6 | 01023-10616 | SCREW | 60001- | |
| 7 | 418-944-2570 | PLATE¤ NAME,FUSE BOX | 60001- | |
| 8 | 569-06-61970 | RELAY | 60001- | |
| 9 | 569-06-61960 | RELAY | 60001- | |
| 10 | 423-09-21110 | RELAY | 60001- | |
| 11 | 287-06-16420 | BRACKET | 60001- | |
| 12 | 01435-00612 | BOLT | 60001- | |
| 13 | 421-54-15520 | CLIP | 60001- | |
| 14 | 08053-15010 | CLIP | 60360- | |
| 08053-01510 | CLIP | 60001-60359 | ||
| 15 | 08053-15010 | CLIP | 60001- | |
| 16 | 01435-01016 | BOLT | 60001- | |
| 17 | 08034-20519 | BAND | 60001- | |
| 18 | 416-944-2180 | SHEET | 60001- | |
| 19 | 418-944-2560 | SHEET | 60001- | |
| 20 | 418-944-2580 | PLATE¤ NAME,FUSE BOX | 60001- | |
| 21 | 569-06-61960 | RELAY | 60360- | |
| 22 | 287-06-16420 | BRACKET | 60360- | |
| 23 | 01435-00612 | BOLT | 60360- |
