| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-54-17360 | ELECTRICAL SOCKET | F10003- | |
| 2 | 42N-54-15350 | BRACKET | F10003- | |
| 3 | 21D-09-15760 | SCREW | F10003- | |
| 4 | 01640-20508 | WASHER | F10003- | |
| 5 | 01580-10504 | NUT | F10003- |
- Главная
- Каталог запчастей
- Экскаваторы погрузчики
- Wb91r 5e0 s/n f10003 up
- Engine related parts and electrical system
- Electrical system (canopy) (5/5)
Поиск по каталогу

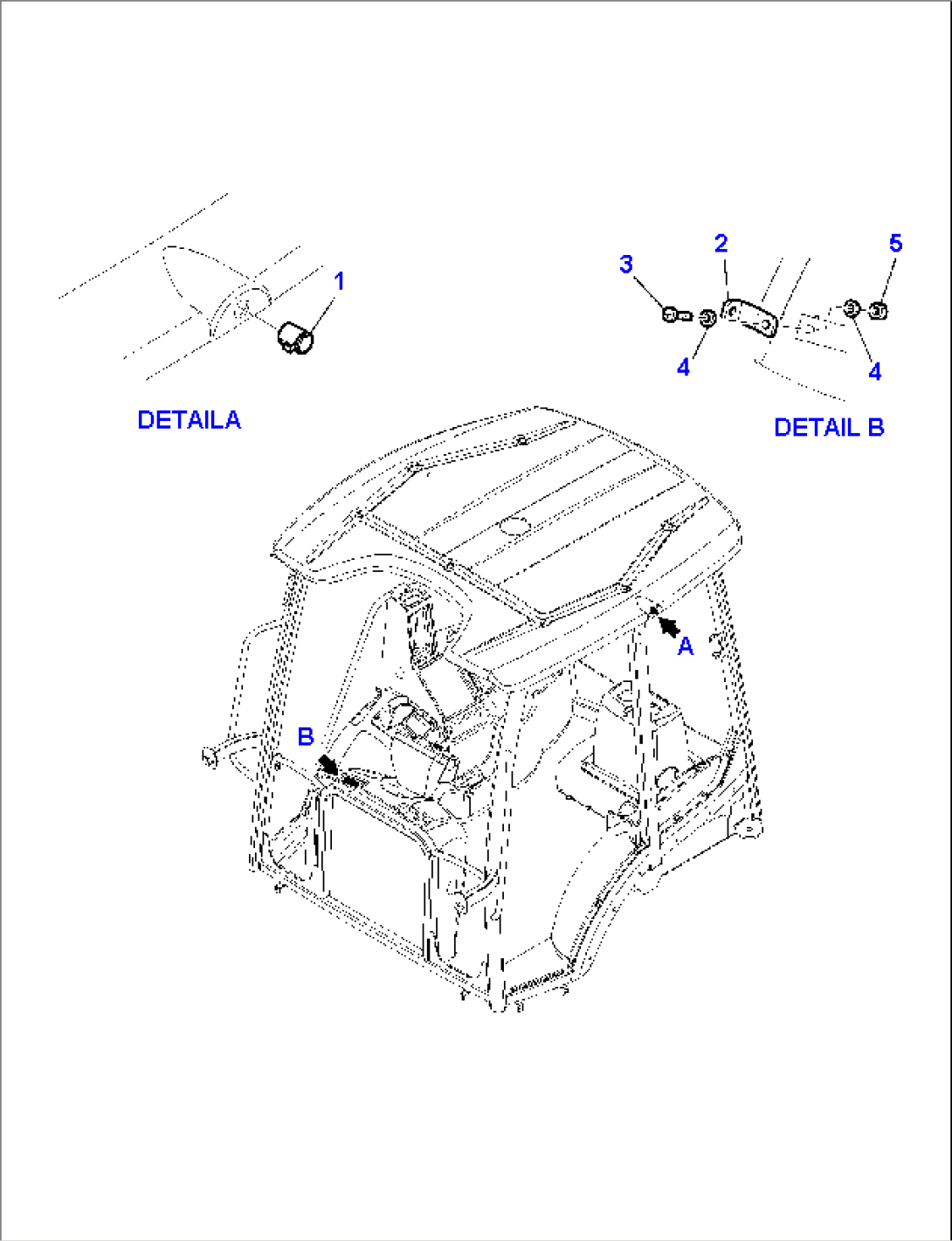

ELECTRICAL SYSTEM (CANOPY) (5/5)
