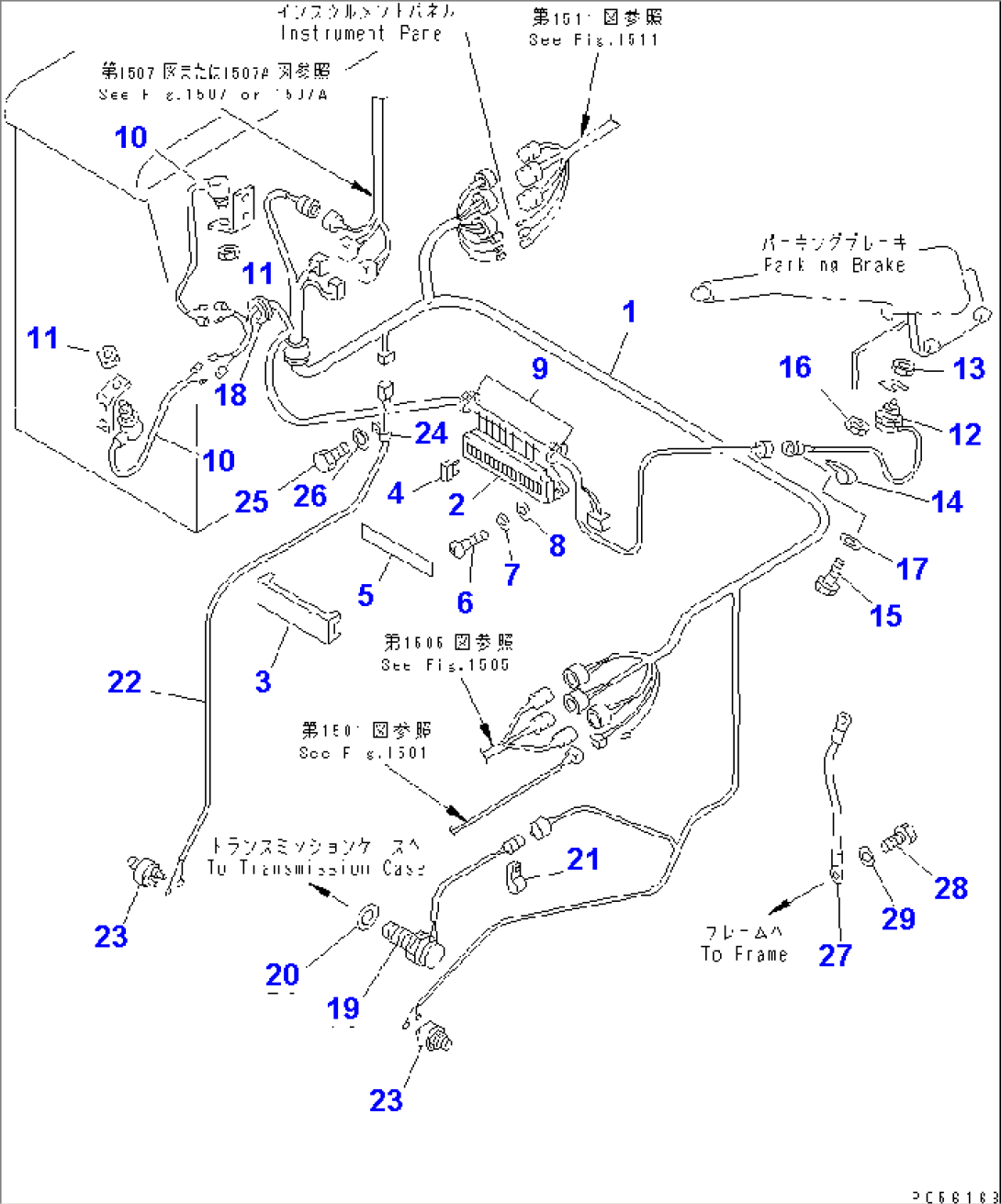

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23A-06-13330 | WIRE ASS'Y | 1047-@ | |
| 23A-06-11561 | WIRE ASS'Y | 1009-1046 | ||
| 23A-06-11560 | WIRE ASS'Y | 1001-1008 | ||
| 23A-06-13371 | WIRE ASS'Y,(FOR LARGE CAPACITY BATTERY) | 1001-@ | ||
| 2 | 283-06-16110 | BOX,FUSE | 1001-@ | |
| 3 | 283-06-16120 | COVER | 1001-@ | |
| 4 | 283-06-16190 | FUSE¤ 10A | 1001-@ | |
| 23B-06-12510 | FUSE¤ 15A | 1001-@ | ||
| 23B-06-12520 | FUSE¤ 20A | 1001-@ | ||
| 5 | 23B-53-12360 | PLATE,FUSE | 1001-@ | |
| 6 | 01220-40620 | SCREW | 1001-@ | |
| 7 | 01643-30623 | WASHER | 1001-@ | |
| 8 | 01640-20610 | WASHER | 1001-@ | |
| 9 | 08034-00519 | BAND | 1001-@ | |
| 10 | 08074-40000 | SWITCH,BACK LAMP AND SAFETY | 1001-@ | |
| 11 | 236-06-23230 | NUT | 1001-@ | |
| 12 | 23B-06-12310 | SWITCH,PARKING BRAKE | 1001-@ | |
| 13 | 01583-11610 | NUT | 1001-@ | |
| 14 | 08036-01814 | CLIP | 1001-@ | |
| 15 | 01010-51025 | BOLT | 1001-@ | |
| 16 | 01580-11008 | NUT | 1001-@ | |
| 17 | 01643-31032 | WASHER | 1001-@ | |
| 18 | 08037-02512 | GROMMET | 1001-@ | |
| 19 | 7819-11-2310 | SENSOR,SPEED | 1001-@ | |
| 20 | 07005-02216 | GASKET | 1001-@ | |
| 21 | 08036-01814 | CLIP | 1001-@ | |
| 22 | 23B-06-13490 | WIRING HARNESS | 1047-@ | |
| \0\23B-06-11730 | WIRE ASS'Y | 1001-1046 | ||
| 23 | 281-06-14280 | SWITCH,STOP LAMP | 1001-@ | |
| 24 | 08036-10814 | CLIP | 1001-@ | |
| 25 | 01010-51016 | BOLT | 1001-@ | |
| 26 | 01643-31032 | WASHER | 1001-@ | |
| 27 | 238-06-11160 | CABLE | 1001-@ | |
| 28 | 01010-51016 | BOLT | 1001-@ | |
| 29 | 01643-31032 | WASHER | 1001-@ |
