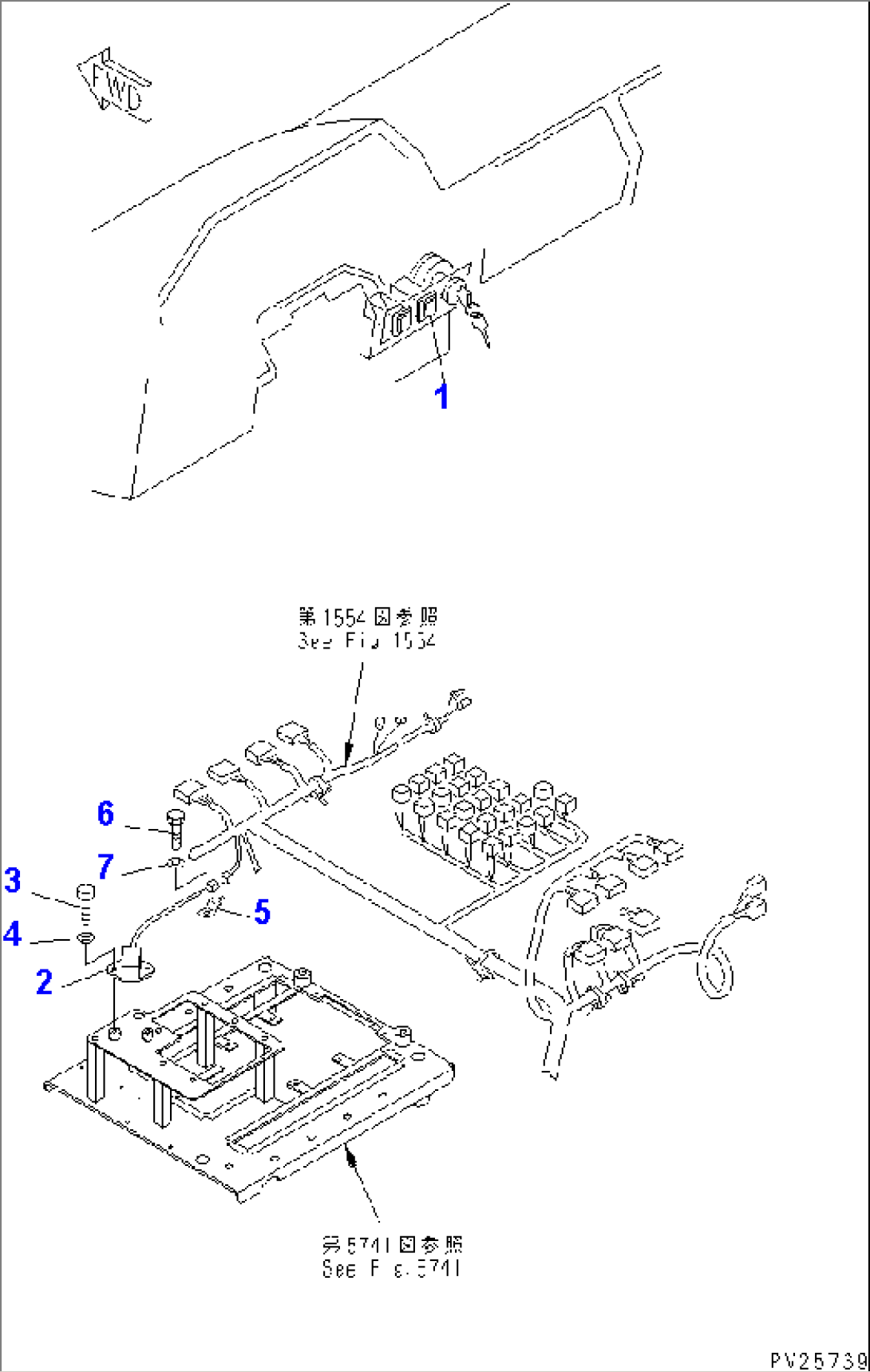

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-06-61211 | SWITCH,HEAT | 1001- | |
| 1 | 569-06-61320 | BULB | 1001- | |
| 1 | 569-06-61350 | BULB,WHITE | 1001- | |
| 2 | 569-06-61831 | TIMER | 1001- | |
| 3 | 01023-20416 | SCREW | 1001- | |
| 4 | 01640-20408 | WASHER | 1001- | |
| 5 | 08053-01512 | CLIP | 1001- | |
| 6 | 01010-81016 | BOLT | 1001- | |
| 7 | 01643-31032 | WASHER | 1001- |
