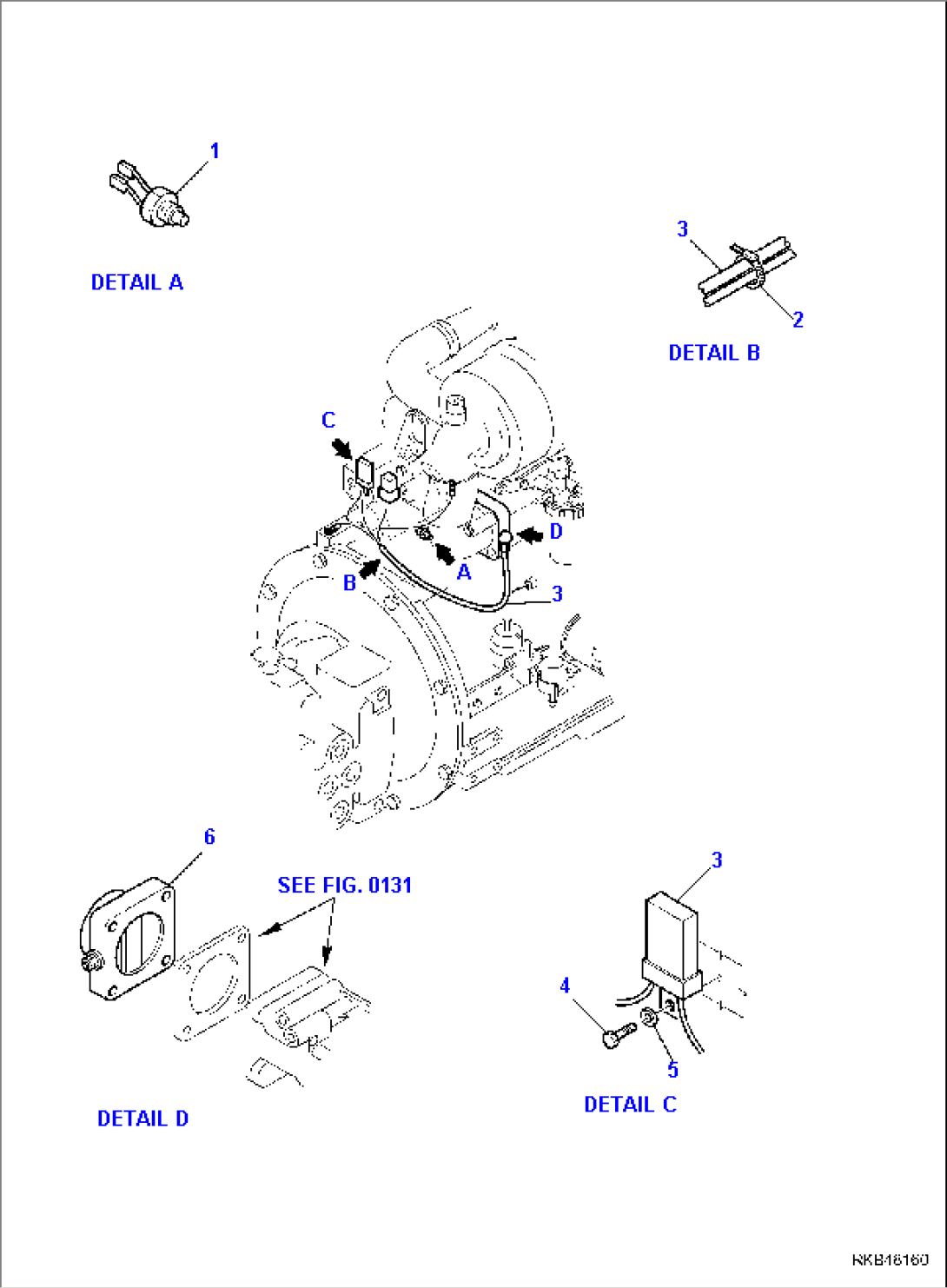

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | YM46150-504500 | HEATER | 37AFS0001- | |
| 2 | 08034-20519 | CLAMP | 37AFS0001- | |
| 3 | 37A-06-11810 | WIRING HARNESS, COLD WEATHER | 37AFS0001- | |
| 4 | 01010-81016 | BOLT | 37AFS0001- | |
| 5 | 01643-11032 | WASHER | 37AFS0001- | |
| 6 | YM129579-77500 | HEATER | 37AFS0001- | |
| SEE FIG. 0131 |
