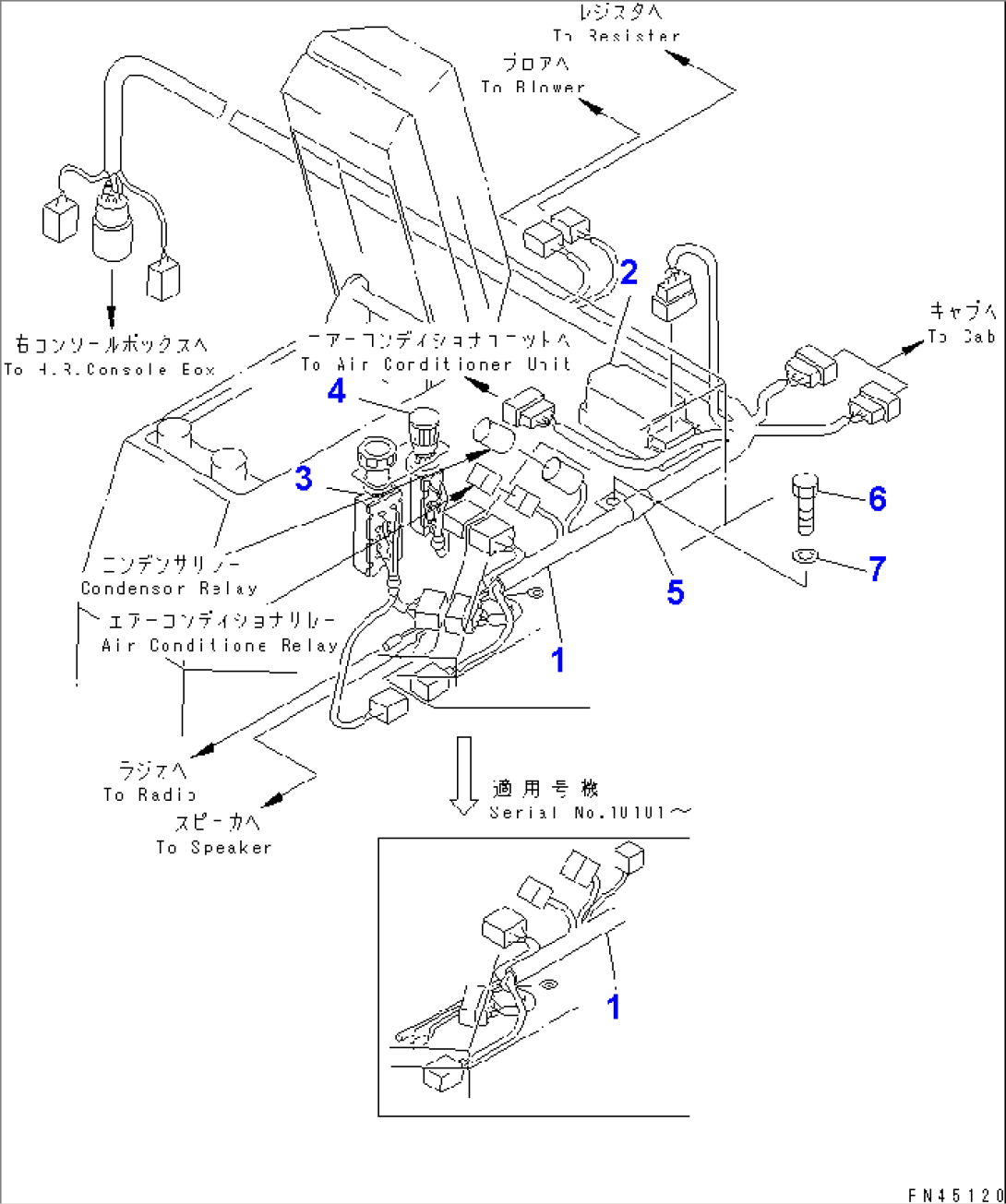

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-06-12412 | WIRE ASS'Y | 10101- | |
| \0\428-06-12411 | WIRE ASS'Y | 10081-10100 | ||
| \0\428-06-12410 | WIRE ASS'Y | 10001-10080 | ||
| 2 | 569-06-61140 | RELAY,SEQUENTIAL WIPER | 10001- | |
| 3 | 421-T49-1100 | SWITCH,WIPER¤ FRONT | 10001- | |
| 4 | 421-06-16150 | SWITCH,WIPER¤ REAR | 10001- | |
| 5 | 08036-01414 | CLIP | 10001- | |
| 6 | 01010-81020 | BOLT | 10001- | |
| 7 | 01643-31032 | WASHER | 10001- |
