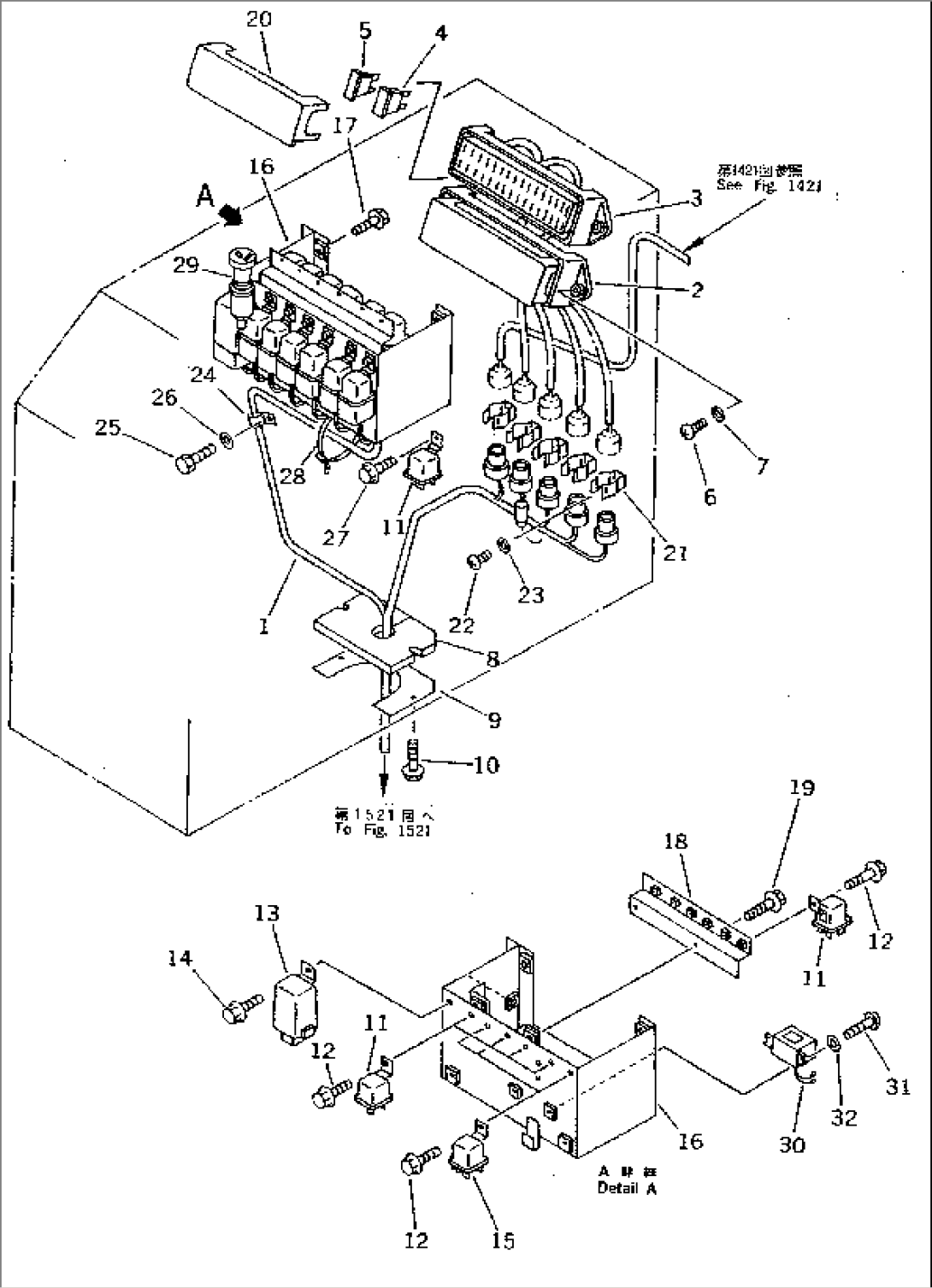

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-06-12117 | WIRING HARNESS | ..- | |
| 1 | \0\428-06-12116 | WIRING HARNESS | .-.. | |
| 1 | \0\428-06-12115 | WIRING HARNESS | 10102-. | |
| 1 | \0\428-06-12114 | WIRING HARNESS | 10097-10101 | |
| 1 | 428-06-12113 | WIRING HARNESS | 10092-10096 | |
| 1 | 428-06-12112 | WIRING HARNESS | 10001-10091 | |
| 2 | 428-06-11510 | BOX ASS'Y,FUSE | 10001- | |
| 3 | 424-06-12431 | BOX ASS'Y,FUSE | 10001- | |
| 4 | 22W-06-13160 | FUSE, 20A | 10001- | |
| 5 | 283-06-16190 | FUSE, 10A | 10001- | |
| 6 | 01220-40516 | SCREW | 10001- | |
| 7 | 01641-20508 | WASHER | 10001- | |
| 8 | 419-06-12651 | SHEET | 10001- | |
| 9 | 418-944-1420 | PLATE | 10001- | |
| 10 | 01435-00612 | BOLT | 10001- | |
| 11 | 287-06-16410 | RELAY | 10001- | |
| 11 | 287-06-16420 | BRACKET | 10001- | |
| 12 | 01435-00610 | BOLT | 10001- | |
| 13 | 08077-22401 | FLASHER | 10001- | |
| 14 | 01435-00610 | BOLT | 10001- | |
| 15 | 421-06-11940 | RELAY | 10001- | |
| 15 | 287-06-16420 | BRACKET | 10001- | |
| 16 | 424-06-11732 | BOX | 10001- | |
| 16 | 428-S33-2560 | BOX,(WITH JOY STICK STEERING) | 10001- | |
| 17 | 01435-00612 | BOLT | 10001- | |
| 18 | 423-06-11220 | PLATE | 10001- | |
| 19 | 01435-00614 | BOLT | 10001- | |
| 20 | 283-06-16120 | COVER | 10001- | |
| 21 | 08052-02711 | CLIP | 10001- | |
| 22 | 01220-40608 | SCREW | 10001- | |
| 23 | 01641-20608 | WASHER | 10001- | |
| 24 | 08036-01814 | CLIP | 10001- | |
| 25 | 01010-81020 | BOLT | 10001- | |
| 26 | 01643-31032 | WASHER | 10001- | |
| 27 | 01435-00608 | BOLT | 10001- | |
| 28 | 08034-00823 | BAND | 10001- | |
| 29 | 08913-02400 | LIGHTER | 10001- | |
| 30 | 207-06-31160 | BUZZER | 10001- | |
| 31 | 01220-40412 | SCREW | 10001- | |
| 32 | 01641-20405 | WASHER | 10001- |
