| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-06-63441 | WIRING HARNESS | 5001- | |
| 2 | 08053-15012 | CLIP | 5001- | |
| 3 | 01010-51016 | BOLT | 5001- | |
| 4 | 01643-31032 | WASHER | 5001- | |
| 5 | 08036-10814 | CLIP | 5001- | |
| 6 | 566-06-12540 | SWITCH | 5001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd325 6w s/n 5001 up (4wd spec.)
- Engine related parts and electrical system
- Electrical system (dump control)(#5680 )
Поиск по каталогу

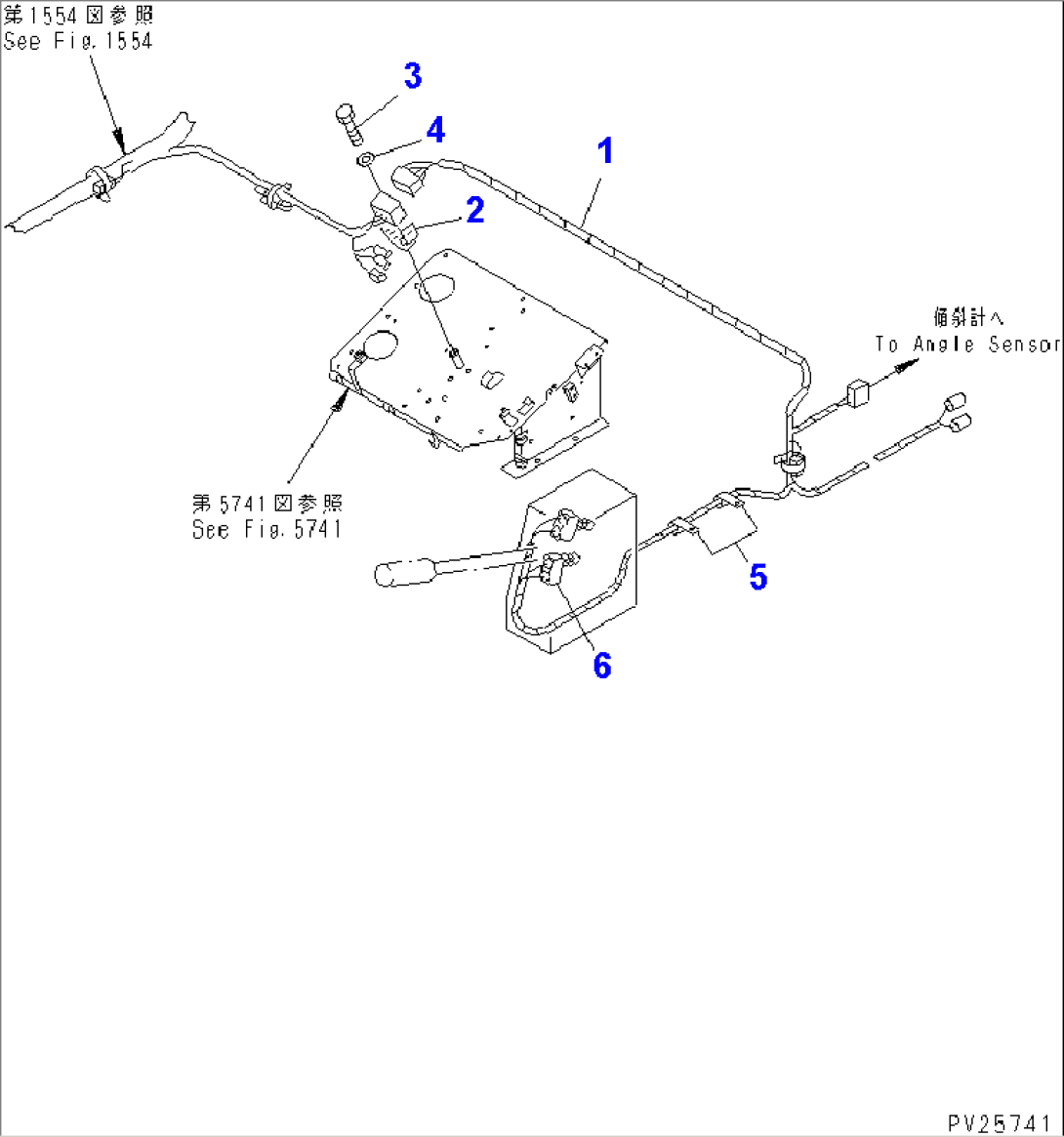

ELECTRICAL SYSTEM (DUMP CONTROL)(#5680-)
