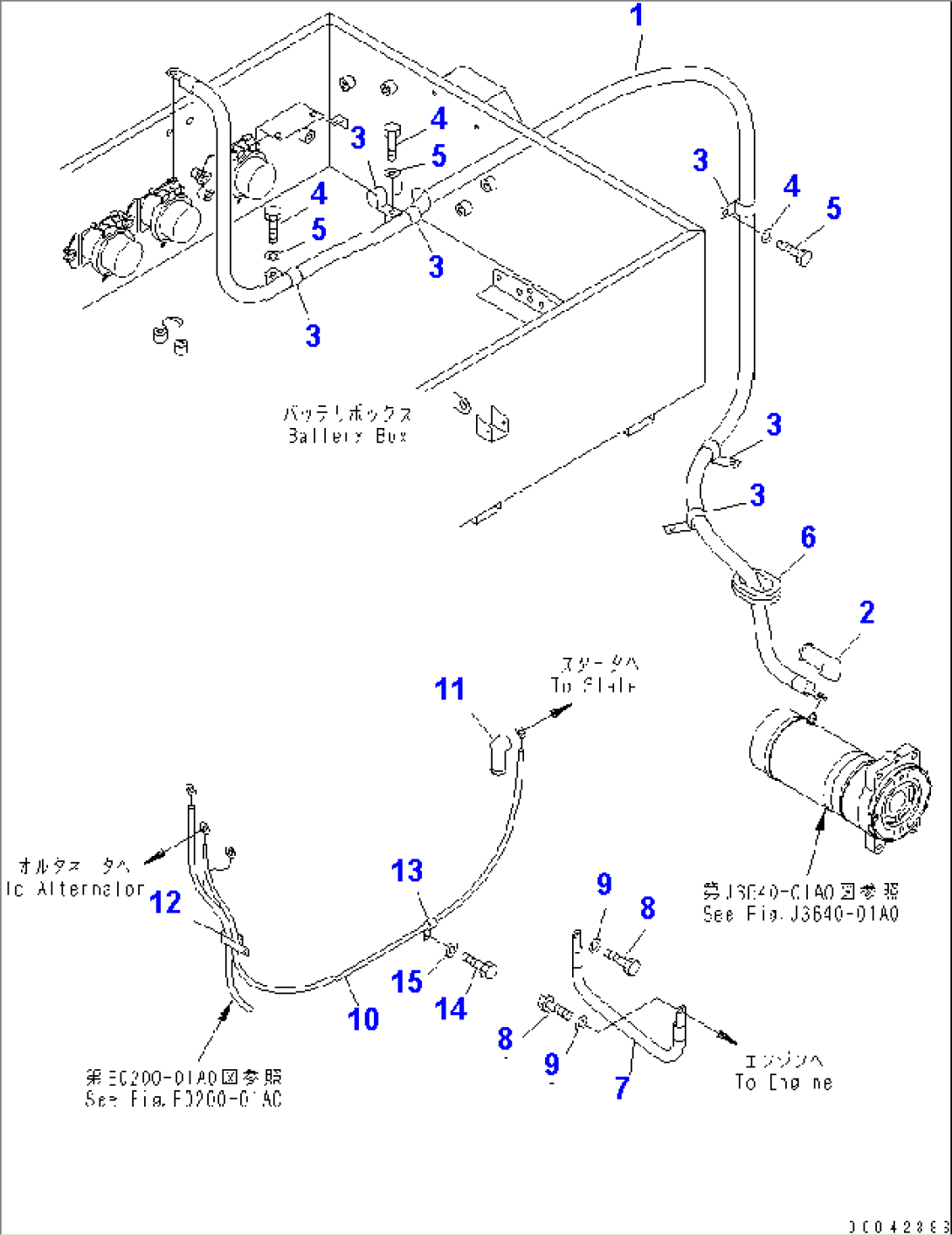

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08028-CE200 | CABLE, BATTERY | 7001- | |
| 2 | 08038-00035 | CAP | 7001- | |
| 3 | 04434-52310 | CLIP | 7001- | |
| 4 | 01010-81016 | BOLT | 7001- | |
| 5 | 01643-31032 | WASHER | 7001- | |
| 6 | 176-911-4160 | GROMMET | 7001- | |
| 7 | 08028-45040 | CABLE, GROUND | 7001- | |
| 8 | 01010-81016 | BOLT | 7001- | |
| 9 | 01643-31032 | WASHER | 7001- | |
| 10 | 566-06-84260 | WIRING HARNESS | 7001- | |
| 11 | 08038-02027 | CAP | 7001- | |
| 12 | 04435-51410 | CLIP | 7001- | |
| 13 | 04434-51410 | CLIP | 7001- | |
| 14 | 01010-81016 | BOLT | 7001- | |
| 15 | 01643-31032 | WASHER | 7001- |
