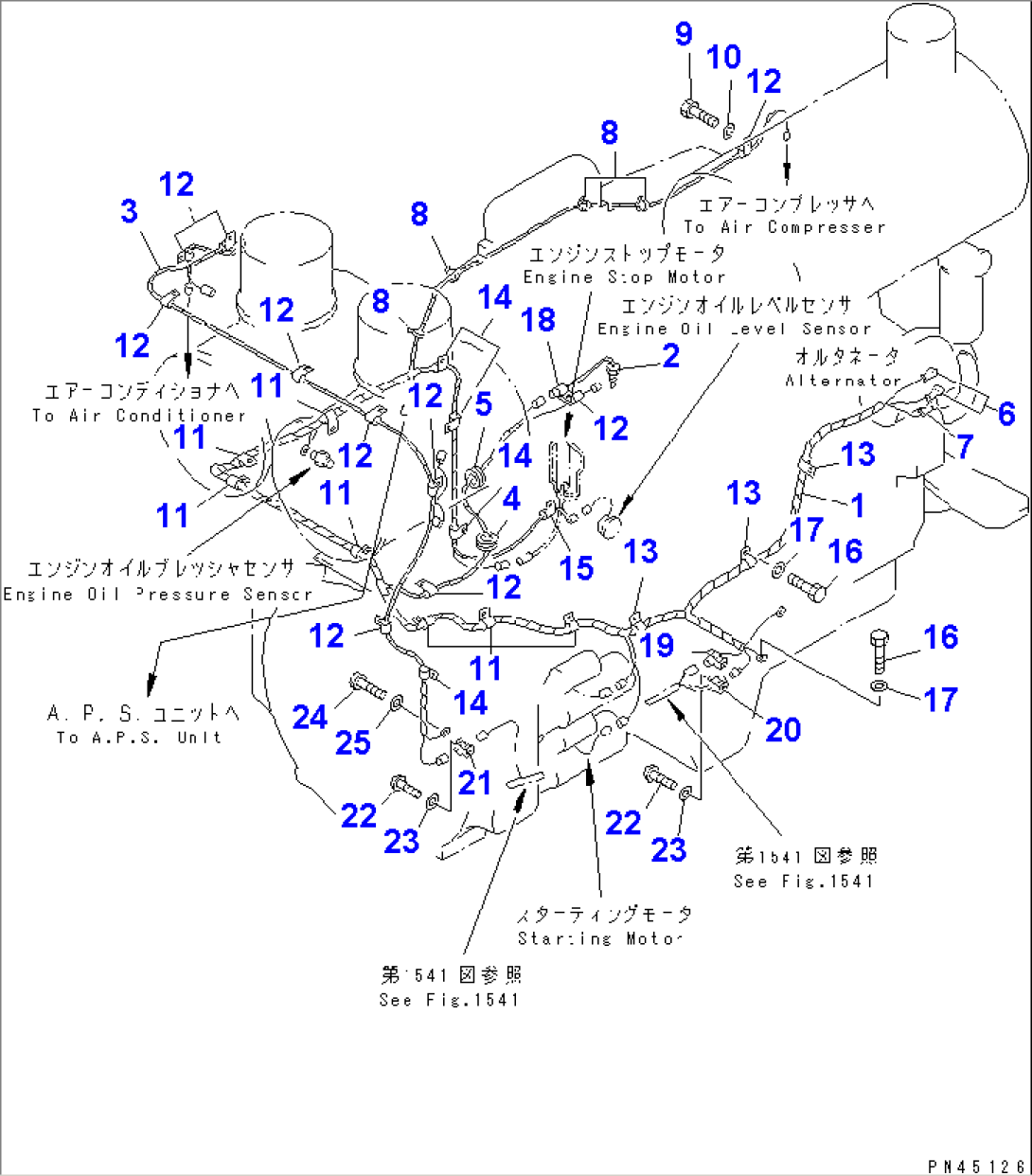

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-06-12154 | WIRING HARNESS | .- | |
| 428-06-12153 | WIRING HARNESS | 10109-. | ||
| 428-06-12152 | WIRING HARNESS | 10081-10108 | ||
| 428-06-12151 | WIRING HARNESS | 10001-10080 | ||
| 08020-10000 | DIODE | 10001- | ||
| 2 | 7861-91-3320 | SENSOR,WATER TEMPERATURE | 10001- | |
| 3 | 428-T46-1311 | WIRING HARNESS | 10081- | |
| 428-T46-1310 | WIRING HARNESS | 10001-10080 | ||
| 4 | 08037-03614 | GROMMET | 10001- | |
| 5 | 08037-05016 | GROMMET | 10001- | |
| 6 | 08038-00519 | CAP | 10001- | |
| 7 | 428-06-12270 | CAP | 10001- | |
| 8 | 08034-00536 | BAND | 10001- | |
| 9 | 01010-80816 | BOLT | 10001- | |
| 10 | 01643-30823 | WASHER | 10001- | |
| 11 | 424-09-12550 | CLIP | 10001- | |
| 12 | 08036-01014 | CLIP | 10001- | |
| 13 | 08036-02514 | CLIP | 10001- | |
| 14 | 08036-01414 | CLIP | 10001- | |
| 15 | 362-43-18780 | CLIP | 10001- | |
| 16 | 01010-81020 | BOLT | 10001- | |
| 17 | 01643-31032 | WASHER | 10001- | |
| 18 | 08052-11711 | CLIP | 10001- | |
| 19 | 08052-02711 | CLIP | 10001- | |
| 20 | 08052-02411 | CLIP | 10001- | |
| 21 | 08052-01311 | CLIP | 10001- | |
| 22 | 01220-40608 | SCREW | 10001- | |
| 23 | 01641-20608 | WASHER | 10001- | |
| 24 | 01010-80816 | BOLT | 10001- | |
| 25 | 01643-30823 | WASHER | 10001- |
