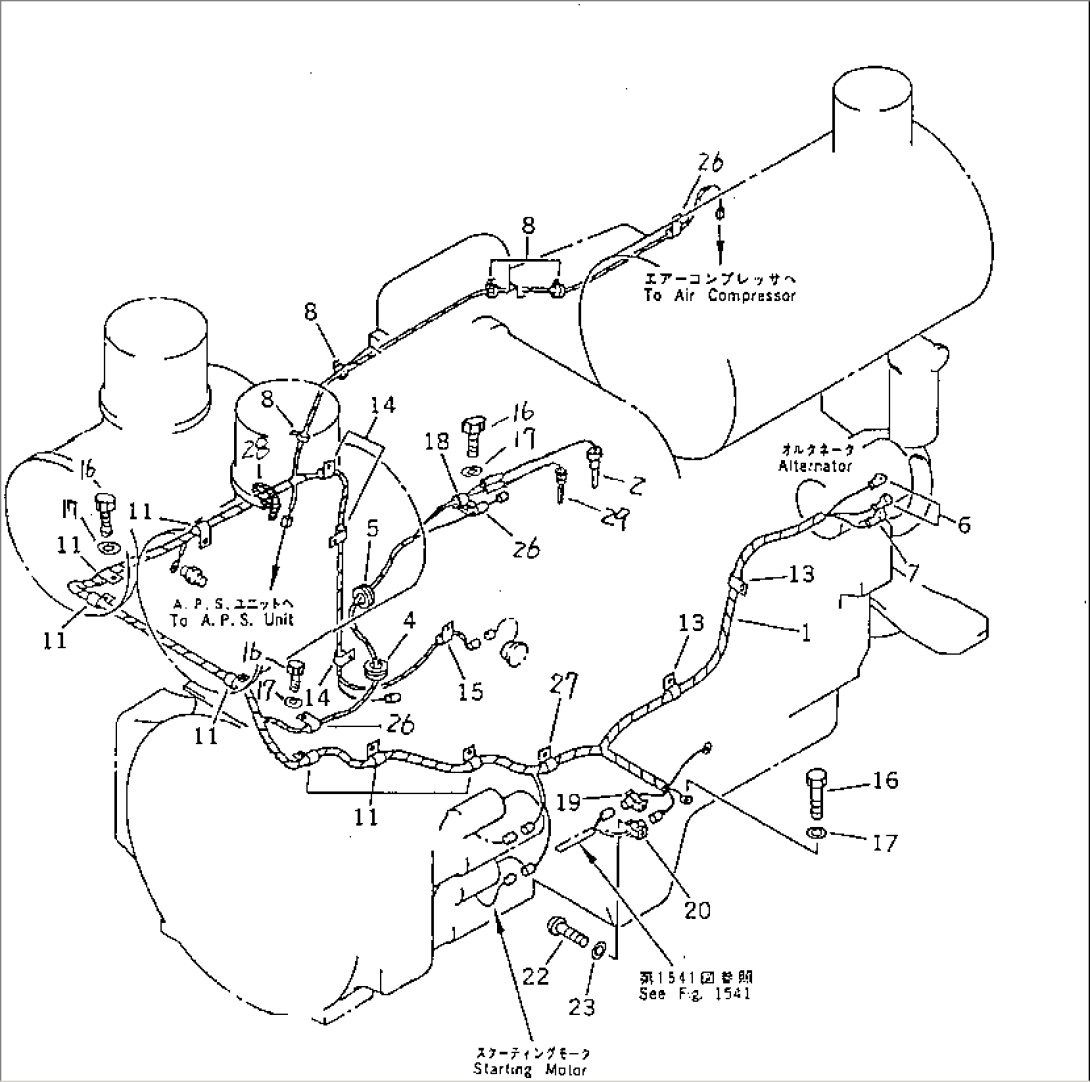

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-06-12781 | WIRING HARNESS | 10001- | |
| 1 | 41E-06-12440 | DIODE | 10001- | |
| 2 | 41E-06-15180 | SENSOR,WATER TEMPERATURE | 10001- | |
| 3 | 428-T46-1310 | WIRING HARNESS | 10001- | |
| 4 | 08037-03614 | GROMMET | 10001- | |
| 5 | 08037-05016 | GROMMET | 10001- | |
| 6 | 08038-00519 | CAP | 10001- | |
| 7 | 08038-12027 | CAP | 10001- | |
| 11 | 04434-51910 | CLIP | 10001- | |
| 13 | 08052-42711 | CLIP | 10001- | |
| 14 | 04434-51410 | CLIP | 10001- | |
| 16 | 01010-51020 | BOLT | 10001- | |
| 17 | 01643-31032 | WASHER | 10001- | |
| 18 | 08052-11711 | CLIP | 10001- | |
| 19 | 08052-02711 | CLIP | 10001- | |
| 20 | 08052-02411 | CLIP | 10001- | |
| 22 | 01220-40608 | SCREW | 10001- | |
| 23 | 01641-20608 | WASHER | 10001- | |
| 26 | 04434-51010 | CLIP | 10001- | |
| 27 | 04434-52511 | CLIP | 10001- | |
| 28 | 08034-20536 | BAND | 10001- | |
| 29 | 41E-06-15210 | SENSOR,WATER TEMPERATURE | 10001- |
